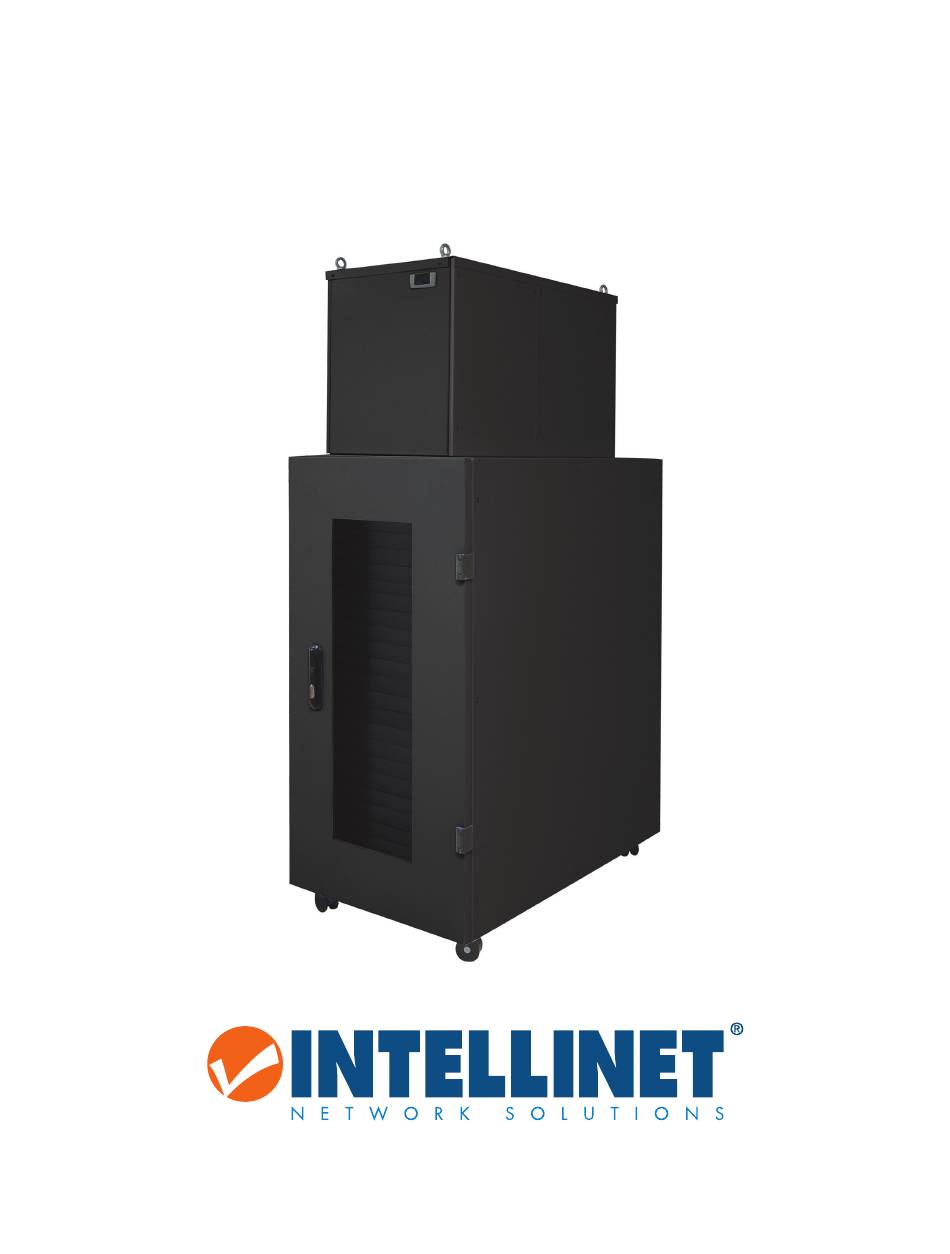

- Page 1 Micro Data Center User Manual Models 714464, 714471, 714488, 714495, 714501, 714518, 714525, 714532, 714549, 714556, 714563, 714570, 714587, 714594, 714600, 714617 Model shown: 714464 intellinetnetwork.com INT-714464-71-88-95-501-18-25-32-49-56- 63-70-87-94-600-17-UM-0917-REV-5.01...
-
Page 2: Table Of Contents
Micro Data Center — User Manual TABLE OF CONTENTS Before You Begin ............... 3 Intended Readers .................... 3 Important Safety Instructions ................ 3 Product Package Contents ................3 1 Product Overview ..............4 2 Pre-installation Precautions ..........4 2.1 Cabinet and Casters .................. 4 2.2 Cooling Unit .................... -
Page 3: Before You Begin
Micro Data Center — User Manual Before You Begin Intended Readers This technical manual is designed for technicians and network professionals who are familiar with in-depth concepts of networking management and terminologies related to IT services. The information herein deals with all aspects of installation, set-up, use, maintenance and troubleshooting of the Micro Data Center. -
Page 4: Product Overview
Micro Data Center — User Manual 1 Product Overview The Intellinet Micro Data Center (MDC) is a modular network and server cabinet that provides rapid, cost- effective and energy-efficient service for all your Information Technology needs. Its durable design meets the power, cooling and security requirements of your network equipment. -
Page 5: Installation
Micro Data Center — User Manual 3 Installation Only professional or technical staff should complete the installation of the Micro Data Center. 3.1 Required Setup Equipment The following tools are required to set up the Micro Data Center: • Pallet jack (recommended) • Utility knife • Number-4 Allen key ratchet or wrench (to adjust M6x12 screws holding cabinet rails) • T25 Torx screwdriver ratchet or wrench (to adjust M5x25 screws holding side support rails of 42U edition) - Page 6 Micro Data Center — User Manual Step 3: Remove all carton pieces surrounding the Micro Data Center; no tool is necessary. Step 4: Remove the corner blocks with a Phillips screwdriver. Step 5: Locate the wooden ramp and put it in front of the pallet. Release the brakes on the casters (if available) and guide the cabinet carefully down the ramp to the floor.
-
Page 7: General Information About First Cabinet Installation Or Relocation
Micro Data Center — User Manual 3.2.2 General Information about First Cabinet Installation or Relocation Always observe the following precautions upon initial installation or when relocating the cabinet: • Before adding and removing equipment, make sure the cabinet is stationary and the casters (if present) are locked. -
Page 8: Maintenance
Micro Data Center — User Manual 4 Maintenance With regular but minimal care and maintenance, the Micro Data Center operates and functions like new. A/C Unit Caution! Before beginning any maintenance work, disconnect the cooling unit from power. The amount of work required to maintain the cooling unit is low. No filter change is required. Aside from the tasks in the table listed below, regularly use a compressed air can at a maximum pressure of four bars to remove dust and debris from the internal components of the a/c unit. - Page 9 Micro Data Center — User Manual Malfunction Conditions Causes Solution The internal fan fails. Call an a/c company or electronics expert to change the internal fan. The external and internal The compressor’s amperometric Call an expert to change the amperomet- fans work, but the com- protector has failed (external to ric protector.
-
Page 10: Additional Information
Micro Data Center — User Manual Additional Information WASTE ELECTRICAL & ELECTRONIC EQUIPMENT DISPOSAL OF ELECTRIC AND ELECTRONIC EQUIPMENT (APPLICABLE IN THE EUROPEAN UNION AND OTHER EUROPEAN COUNTRIES WITH SEPARATE COLLECTION SYSTEMS) ENGLISH This symbol on the product or its packaging means that this product must not be treated as unsorted household waste. - Page 11 POLSKI: Informacje dotyczące gwarancji znajdują się na stronie intellinet-network.com/warranty. ITALIANO: Per informazioni sulla garanzia, accedere a intellinet-network.com/warranty. EN MÉXICO: Póliza de Garantia Intellinet — Datos del importador y responsable ante el consumidor: IC Intra- com México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 La presente garantía cubre este producto por 3 años contra cualquier defecto de fabricación en sus materiales y mano de obra, bajo las siguientes condiciones: 1.
