BIT-Ma-ADI-0909
CATALOG
1. Product Overview .......................................................................................................... 2
1.1. Product features ..................................................................................................... 2
1.2. Application scenarios ............................................................................................ 2
2. Specifications .................................................................................................................. 3
3.Operation instructions .................................................................................................. 4
3.1. Product panel description ................................................................................ 4
4. Common problem .......................................................................................................... 7
Shenzhen Bitvisus Technology Limited
第 1 页 共 8 页

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIT-Ma-ADI-0909 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BTSX BIT-Ma-ADI-0909

Summary of Contents for BTSX BIT-Ma-ADI-0909

  • Page 1 Shenzhen Bitvisus Technology Limited BIT-Ma-ADI-0909 CATALOG 1. Product Overview ......................2 1.1. Product features ..................... 2 1.2. Application scenarios .................... 2 2. Specifications ........................3 3.Operation instructions ....................4 3.1. Product panel description ................4 4. Common problem ......................7...

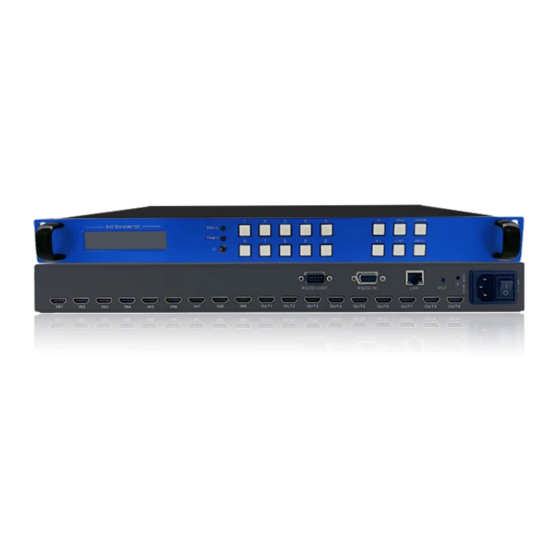

  • Page 2 Shenzhen Bitvisus Technology Limited 1. Product Overview 1.1. Product features BIT-Ma-ADI-0909 is a 9 input 9 output all-digital ultra-clear matrix switcher, which supports a resolution of up to 4Kx2K,supports 3D video,HDCP1.4 specification,16 bit color depth.It can provide customers with a non-destructive, real-time,ultra-clear, full digital experience.
  • Page 3 8． Productfirmwarecanbeupgradedon-sitethroughthenetworkport,whichcanea silyprovideremotesupportonsiteandcustomizationofspecialfunctionsforusers. 9．Built-inequalizerupto100feetatinputand50feetatoutput. 10． Powerfulstoragefunction,canstoreandrecallmultiplepre-storedswitchingmo des;haspower-downmemoryfunction,withpower-offsiteprotectionfunction. 11．Standard1Uindustrialchassis,easyinstallation,fastoperation,support7X12ho ursofuninterruptedwork,supportACpowerintherangeof90-264V 2. Specifications model BIT-Ma-ADI-0909 Specification Input / output support 9 channels each Input signal Full digital HDMI signal Output signal Full digital HDMI signal Control method RS-232、TCP/IP The highest resolution can reach 4k x 2k (4096 ×...
  • Page 4 Shenzhen Bitvisus Technology Limited Input / Output interface HDMI Interface Type A 19-pin Female type External power 110~220 VAC Storage and use temperature: -20 ° ~ + 70 ° Working environment humidity: 10% ~ 90% Product weight Rated power Chassis size (WxDxH) 1U（440mm x 263mm x 44mm）...
  • Page 5 Shenzhen Bitvisus Technology Limited （4）Function buttons. The function is briefly described as follows. Switch key, interval input and output Switch from optional input to all outputs SAVE Scene saving, using with number keys LOAD Scenario invoking, use with number keys CANCEL Cancel this operation ENTER...
  • Page 6 Shenzhen Bitvisus Technology Limited Ø One to all channel switching Example: Switch the second image signal to the all output As follows: “2” + “AV” + “ALL” + “ENTER” (The following figure is LCD display) Ø Scene saving and calling To save the current corresponding relationship, press the key "number"...
  • Page 7 Shenzhen Bitvisus Technology Limited matrix. Reset key, press this key to restart the machine. （4）Power interface 4. Common problem If there is no corresponding image output when the device is switched: Check whether there is a signal at the corresponding input terminal.(Use an oscilloscope or multimeter for testing) If there is no signal input, the input connection cable may be broken or the connector is loose, just replace the connection cable;...
  • Page 8 Shenzhen Bitvisus Technology Limited have internal faults, please send it to a professional for repair.) If the serial port cannot control the device: check whether the communication port set by the control software corresponds to the serial port of the connected device; check whether the communication port of the computer is good.
