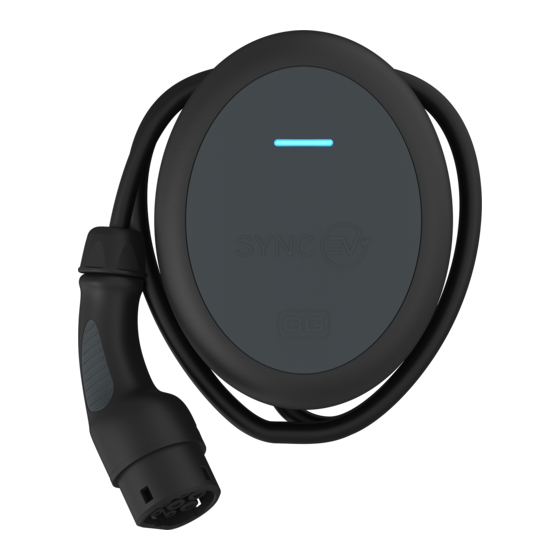

SyncEV BG EVT77G Installation And User Manual

Type 2 tethered, 7.4kw
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and User Guide
EV Charger
Type 2 Tethered, 7.4kW
EVT77G
Tools needed:
4mm Hex bit/allen key; PZ2 and flat blade screwdrivers; suitable drill bit and fixings
BOX CONTENT
• EV charger
• Decorative trim
• Installation template
• Accessories pack containing:
» Power connector
» Cord grip and screws
» M25 gland
» 25mm blanking plug
» Fixing screw caps
» Assembly screws
INTRODUCTION
This guide is intended for use by competent electrical installers to explain basic requirements and options to
be considered when installed a SyncEV BG Charger. The unit is designed for installations inside or outside,
the advanced safety technology we have built into the unit ensures its safe usage. This guide provides
information to assist when installing the EVT7 charger and should not be used with other EV chargers.
SyncEV Charger – EVT77G.202206.GJW
IMPORTANT NOTICE
To commission your charger and register
for the 3 year warranty, please visit:
www.syncev.co.uk/portal/login
or use the QR code.
3 year warranty available as long as charger
installation is registered, otherwise standard
warranty is for a period of 1 year.
3
year
WARRANTY
IDENTIFICATION LABEL
www.syncev.co.uk | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVT77G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SyncEV BG EVT77G

Summary of Contents for SyncEV BG EVT77G

  • Page 1 This guide is intended for use by competent electrical installers to explain basic requirements and options to be considered when installed a SyncEV BG Charger. The unit is designed for installations inside or outside, the advanced safety technology we have built into the unit ensures its safe usage. This guide provides information to assist when installing the EVT7 charger and should not be used with other EV chargers.

  • Page 2: Installation Requirements

    Warning: The supplied SyncEV BG charger is manufactured The EV charger may be connected directly to a TN-C-S (PME) to be safe without risk provide they are installed correctly, earthing system without any special arrangements.
  • Page 3 • A test to confirm the polarity of the installation is correct. If no suitable permanent structure is available, the EV charger • Where applicable a test to confirm the earth electrode can be mounted to a stand. We suggest of the SyncEV BG resistance is within acceptable tolerances. Stand, EVASTAND12S.

  • Page 4: Electrical Installation

    IP rating incoming power connections Ensure supplied cord grip is fitted on incoming power Ensure 3-pole power connector is fully inserted, cable if using bottom cable entry location then clip power connector into the base 4 | SyncEV Charger – EVT77G.202206.GJW...
  • Page 5 Electrical Installation Ensure 4-pole output connector is fully inserted, For dynamic load balancing, ensure connections are made then tuck into the base on the left side in correct polarity to CT+ and CT– terminals 2.5 N m Snap front cover trim into place We recommend cable is wrapped securely around To remove trim, pry at shown points the charger, with the gun placed at the top with...

  • Page 6: Network Setup

    App (see next page); ‘Plug and Charge’ for non-smart charging; or ‘RFID’ for RFID authorised charging. Use ‘Plug and Charge’ if connection to server cannot be If unable to establish network connection call (0330) 311 8388. established and car charging is required. 6 | SyncEV Charger – EVT77G.202206.GJW...
  • Page 7 Smart Charge App Commissioning IMPORTANT! THE INSTALLER MUST CONNECT THE CHARGE POINT TO THE SMART CHARGING APP AFTER INSTALLATION. SMART CHARGING WON’T WORK UNLESS YOU COMPLETE THE PROCESS BELOW: To optimise smart charging and save the most money, a recent energy bill is required that to get the customers MPAN (this step can be skipped during commissioning).

  • Page 8: Technical Information

    GUARANTEE SyncEV BG products are guaranteed against faulty materials and workmanship for a period of 3 years from date of delivery: products will be repaired or (at BG Electrical’s discretion) replacements will be supplied or (at BG Electrical’s discretion) a credit note will be issued.
