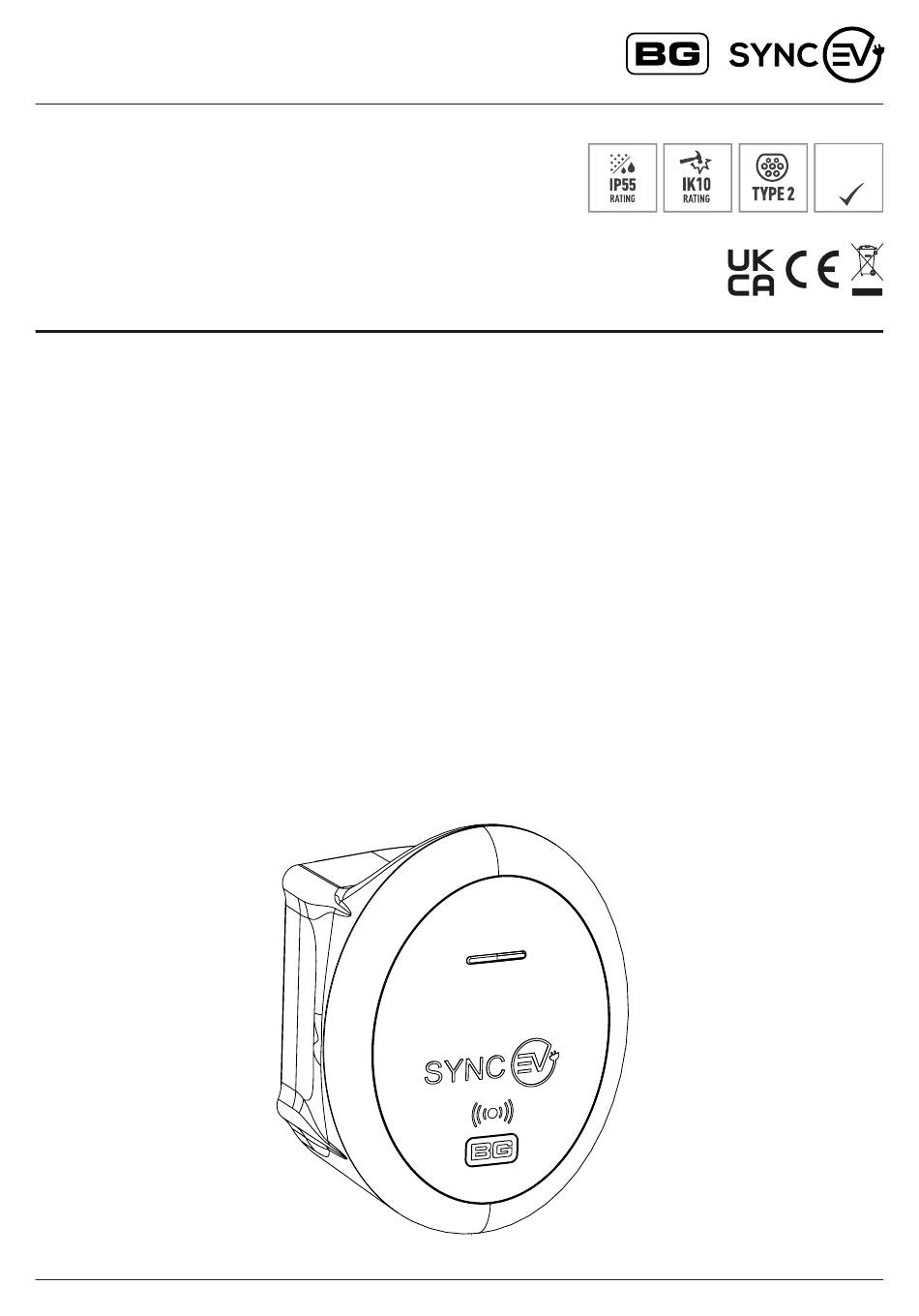

Installation and User Guide

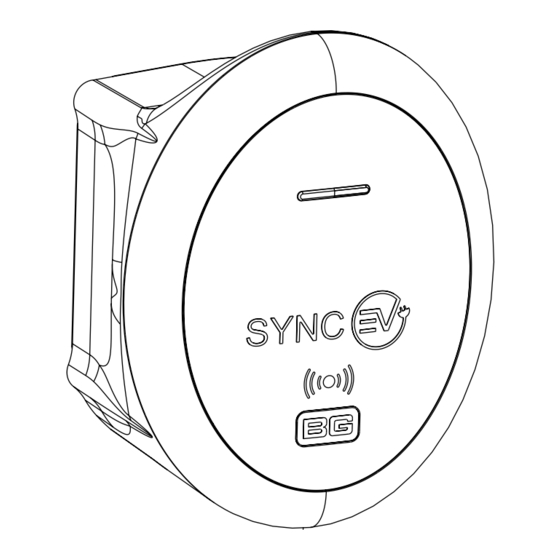

EV Charger
Type 2 Tethered, 7.4kW
EVT77G / EVT77GG
Tools needed:
Hex bit holder, PZ2 and flat blade screwdriver, suitable drill bit and fixings.
BOX CONTENT
• EV charger
• Decorative trim
• Installation template
• Accessories pack containing:
» Power connector
» Cord grip and screws
» M25 gland
» 2x 25mm blanking plug
INTRODUCTION
This guide is intended for use by competent electrical installers to explain basic requirements and options to
be considered when installed a BG SyncEV charger. The unit is designed for installations inside or outside,
the advanced safety technology we have built into the unit ensures its safe usage. This guide provides
information to assist when installing the EVT7 charger and should not be used with other EV chargers.
BG SyncEV Charger – EVT77G.202303.GJW
» Fixing screw caps
» Assembly screws
» Anti-tamper bit
3
year
WARRANTY
www.syncev.co.uk | 1
Advertisement
Table of Contents
Related Manuals for SyncEV BG EVT77GG
Summary of Contents for SyncEV BG EVT77GG
- Page 1 Installation and User Guide EV Charger year WARRANTY Type 2 Tethered, 7.4kW EVT77G / EVT77GG Tools needed: Hex bit holder, PZ2 and flat blade screwdriver, suitable drill bit and fixings. BOX CONTENT • EV charger • Decorative trim • Installation template • Accessories pack containing:...
- Page 2 Installation Requirements SAFETY INFORMATION earth electrode where it may be ineffective or introduce further risk. Warning: The supplied BG SyncEV charger is manufactured The EV charger may be connected directly to a TN-C-S (PME) to be safe without risk provide they are installed correctly, earthing system without any special arrangements.
- Page 3 Installation Requirements INSTALLATION • Verification of the characteristics of the electrical supply at the origin of the installation to confirm the supply is suitable The EV charger is suitable for installation inside and outside on for the additional load. a solid wall or structure. The installer should consult with the •...
- Page 4 Electrical Installation 130mm Cable entry Use included hole template to drill fixing holes L E N Ensure the supplied caps are fitted over installation Ensure correct polarity when making screws to maintain IP rating incoming power connections Ensure supplied cord grip is fitted on incoming power Ensure 3-pole power connector is fully inserted, cable if using bottom cable entry location then clip power connector into the base...
- Page 5 Electrical Installation Ensure 3-pole output connector and 2-pole lever block For dynamic load balancing, ensure connections are made in correct polarity to CT+ (Brown) and CT- (Blue) terminals. are inserted into the tethered cable connectors, then tuck into the base on the left side We recommend completing electrical installation testing and network set up at this stage.
- Page 6 Network Setup / Commissioning Stage (1 of 2) INSTALLER APP Download the ‘BG EV Charging’ app here: Apple Version Google / Android Version. Also available from the Installer Portal on the syncev.co.uk website, or using the QR codes opposite. Upon powering the charger, the status indicator light will show Yellow. This indicates that the charger is ready for network setup but is not yet connected to the internet. For Wi-Fi connection we recommend that the router is set to only 2.4GHz band to reduce the risk of possible conflicts.
- Page 7 Smart Charge App Commissioning (2 of 2) IMPORTANT! THE INSTALLER MUST CONNECT THE CHARGE POINT TO THE SMART CHARGING APP AFTER INSTALLATION. SMART CHARGING WON’T WORK UNLESS YOU COMPLETE THE PROCESS BELOW: To optimise smart charging and save the most money, a recent energy bill is required that to get the customers MPAN (this step can be skipped during commissioning).
- Page 8 Technical Information ENVIRONMENTAL PROTECTION This symbol is known as the “Crossed-out Wheelie Bin Symbol”. When this symbol is marked on a product or battery, it means that it should not be disposed of with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health and the environment.
