1.3 Ribbon Cartridge Features

②

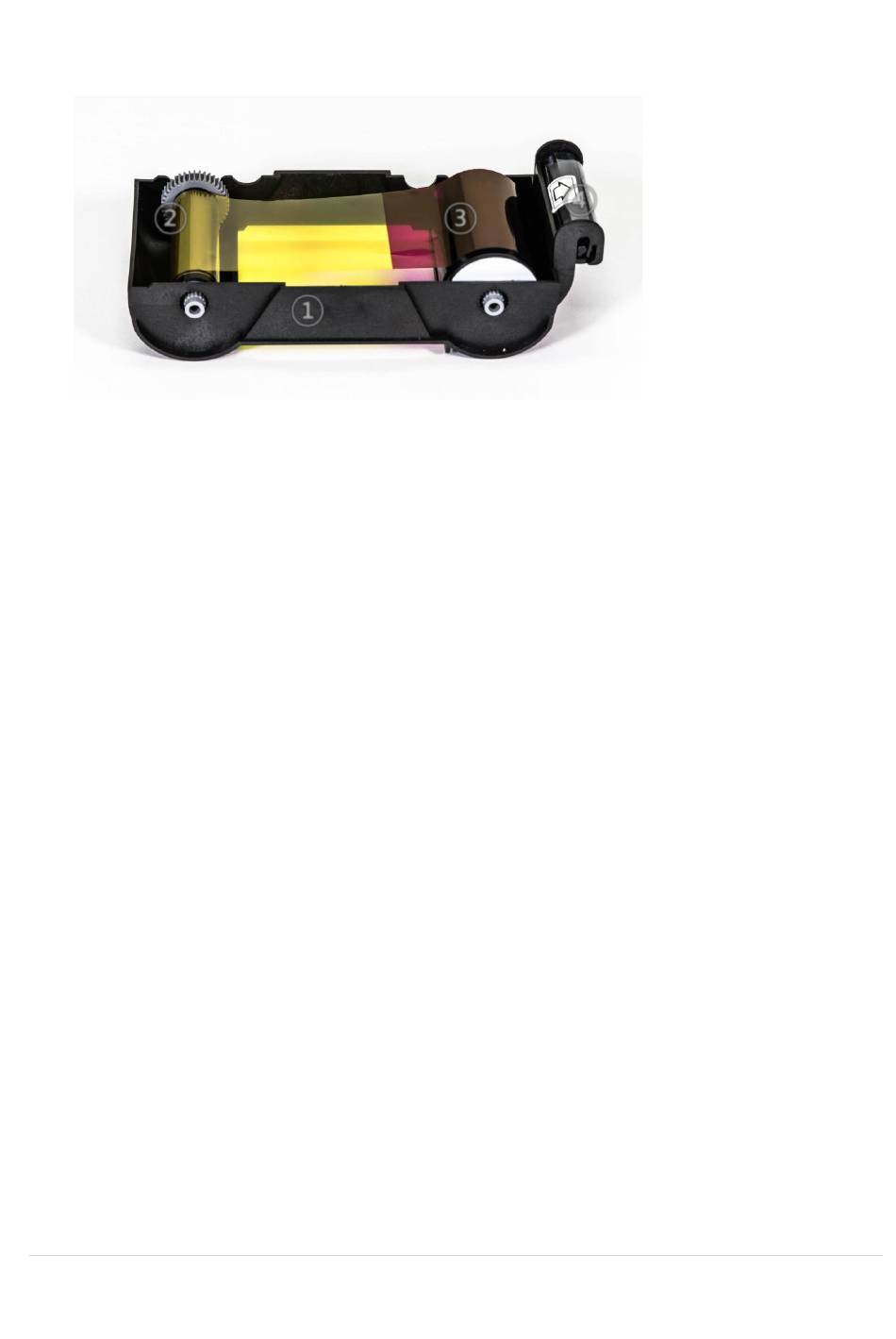

① Ribbon cartridge
-. Install a ribbon and a disposable cleaning roller into the ribbon cartridge.
-. This reusable ribbon cartridge is a component of the printer. The printer does not
operate if it is broken or damaged. In this case, please contact your reseller.
② ③ Take up & Supply spools
-. New unsed ribbon is on the supply spool (3) as pictured above. It should be
installed with the the new ribbon to the right next to the cleaner roller (4) and the
empty spool (2) on the left. The cartridge is inserted into the printer so the sticky
roller is orientated at the front of the printer. The gears on the ribbon should
engage the gears in the printer.
④ Disposable cleaning roller
-. This removes dust on the surface of the card to improve print quality before the
card is printed. It should be changed together with the ribbon.
-. After installing the disposable cleaning roller to the ribbon cartridge, peel off the
protective film.
-. The cleaner roller is provided with a new ribbon.
③
①
①
Ribbon cartridge
④
②
Take up spool
③
Supply spool
④
Disposable cleaning
roller
