Introduction

1.
1.1 EasyBadge 2.0 Printer External Features
The EasyBadge 2.0 Printer status can be seen through LED and the printer can also be
controlled by the LED button. The printer takes power via the 24V adaptor provided with
the printer. The printer uses USB to connect to the PC.

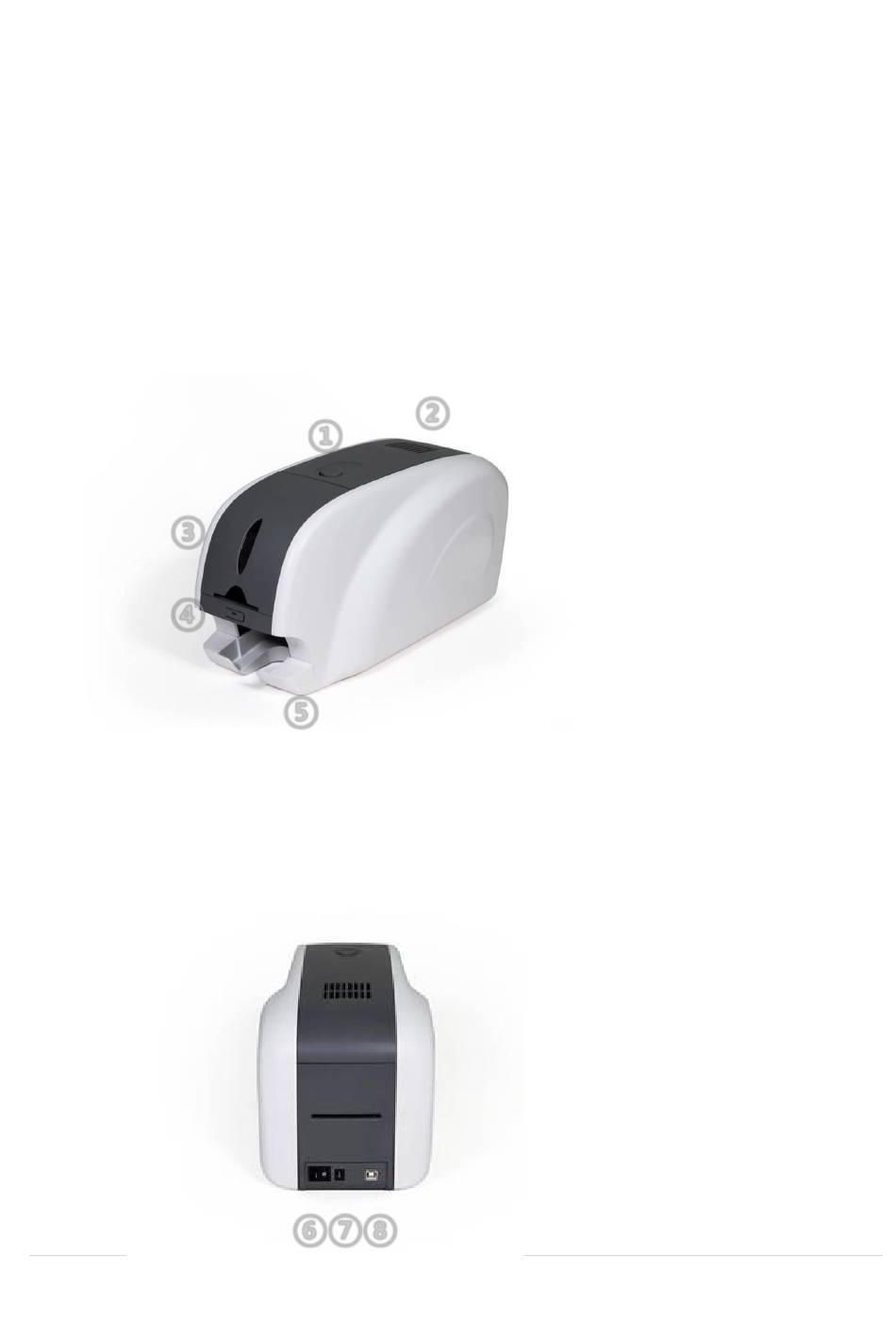

The following shows the external features found on the printer.
③
④
②
①
⑤
⑥ ⑦ ⑧
① Top cover, open button
② Fan
③ Input hopper
④ LED buttons
⑤ Output hopper
Power switch
⑥ On/Off Switch
⑦ 24V Power connector
⑧ USB Port
