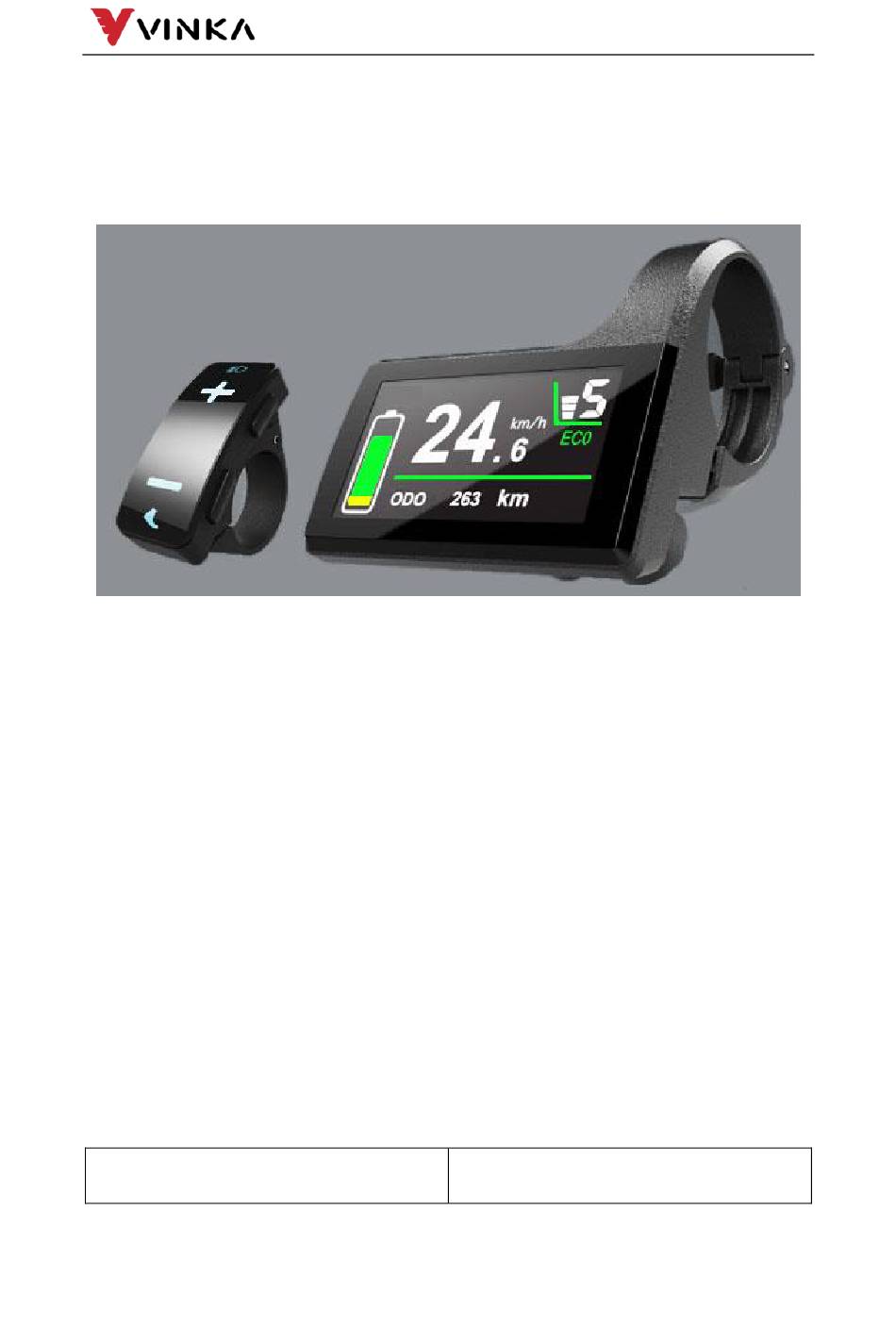

- Page 1 苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd DC31 VINKA Display User Manual VERSION...
-
Page 2: Table Of Contents
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Contents 1. Product name and model ..............1 2. Specifications ..................1 3. Appearance and Size ................1 4. Function Summary ................1 5. Function Area Distribution ..............2 6. Button Definition................... 2 7. Installation ..................... 2 8. -
Page 3: Product Name And Model
Waterproof Grade: IP65 3. Appearance and Size Product appearance and dimensional drawing (unit: mm) 4. Function Summary DC31 display has many functions to meet the user’s needs. With independent left buttons, ergonomics design Support metric/imperial unit switching, UI support customization (need to evaluate UI design first) ... -
Page 4: Function Area Distribution
ON/OFF button UP/Light button DOWN button MODE button DC31 can be mounted on the middle of the two handlebars. Adjust the angle for a good screen view. Cut off the power before connecting the corresponding connectors between the display and controller. -
Page 5: General Operation
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd 8. General Operation (1). Switching the E-bike System mode ON/OFF To switch on the E-bike system and provide the power supply to the controller, hold the ON/OFF button for 1s. To switch off E-bike system, hold the ON/OFF button for 1s. The E-bike system no longer uses the battery power. -
Page 6: Switching The Lighting On/Off
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Push-assistance mode Push-assist function may only be used when pushing the E-bike. Be aware of danger of injury when bike wheels do not have ground contact while using the push-assist function. (4). Switching Lighting ON/OFF To switch on bike light, hold the UP button for 1s. -
Page 7: Battery Indicator
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd (6). Battery Indicator The five-segment indicate of battery SOC, when the battery voltage is high, the five-segment LCD is all on. When the percentage is 0, the battery needs to be charged immediately. Battery SOC Interface The default voltage of display battery is 36V. -
Page 8: Error Code Indication
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Motor Power Indication Interface (8). Error Code Indication The components of the E-bike system are continuously and automatically monitored. When an error is detected, the respective error code is indicated in text indication area. Refer to detailed definition of the error codes in Attached list 1. Error Code Indication ... -
Page 9: Display Setting
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Setting interface Display Setting (1). Toggle Unit Toggle Unit represents change unit between Metric and Imperial. The default is “Metric”. Enter the Toggle UNIT, press the UP or DOWN button to choose the desired setting item, and then press the MODE button to confirm and store the changed settings. -
Page 10: Version Info
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Speed Limitation Info (4). Version Info Version Info refers to the version information, short press the MODE button to query the version information of the controller and the instrument. Version Info (5). Assist Mode Version Info refers to the version information, short press the MODE button to query the version information of the controller and the instrument. -
Page 11: Trip Reset
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd (6). TRIP Reset TRIP Reset refers to clearing the single subtotal mileage. After pressing MODE button（<1s）, press UP or DOWN button to select whether to clear the single mileage. And press MODE button to confirm to change the selected setting. Trip Reset Indication Advanced Settings (1). -
Page 12: Lcd Luminance
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd (3). LCD Luminance LCD Luminance refers to the backlight brightness level of the meter. The setting range is Level 1~Level 5. Level 1 is the darkest and Level 5 is the brightest. The default value is determined by the controller when the monitor leaves the factory. - Page 13 苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd MODE button and select ON to enter the password setting page. After the interface prompts to enter the password, short press the UP or DOWN button to switch the digits 0-9, and short press the MODE button to switch the digits. After the input is completed, the interface prompts to enter the password again.
- Page 14 苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd interface. Long press the MODE button (>1S) to exit to the main interface or press BACK →EXIT exits to the main interface. The operation steps are as follows. Password modification interface In the Start Password interface, select OFF and short press the MODE button to confirm.
-
Page 15: Quality Assurance And Warranty Scope
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Quality assurance and warranty scope Ⅰ Warranty 1) The warranty will be valid only for products used in normal usage and conditions. 2) The warranty is valid for 24 months after the shipment or delivery to the customer. Ⅱ... -
Page 16: Warnings
3． Don’t modify system parameters to avoid parameter disorder. 4． Make the display repaired when error code appears. ■ This manual instruction is a universal version for VINKA DC31 display. Software specific, versions of this display may be different. Please always refer to an actual version. -
Page 17: Attached List 1: Error Code Definition
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Attached list 1: Error code definition Error code Definition Torque Zero Error Torque Out Range Torque Sensor Fault Gear Sensor Error Speed Sensor Error Cadence Error PCB Over-Temp Warning PCB Over-Temp Error PCB Sensor Fault Motor Over-Temp Warning Motor Over-Temp Error Flash Error...
