Seen IRIS 860 Quick Install Manual

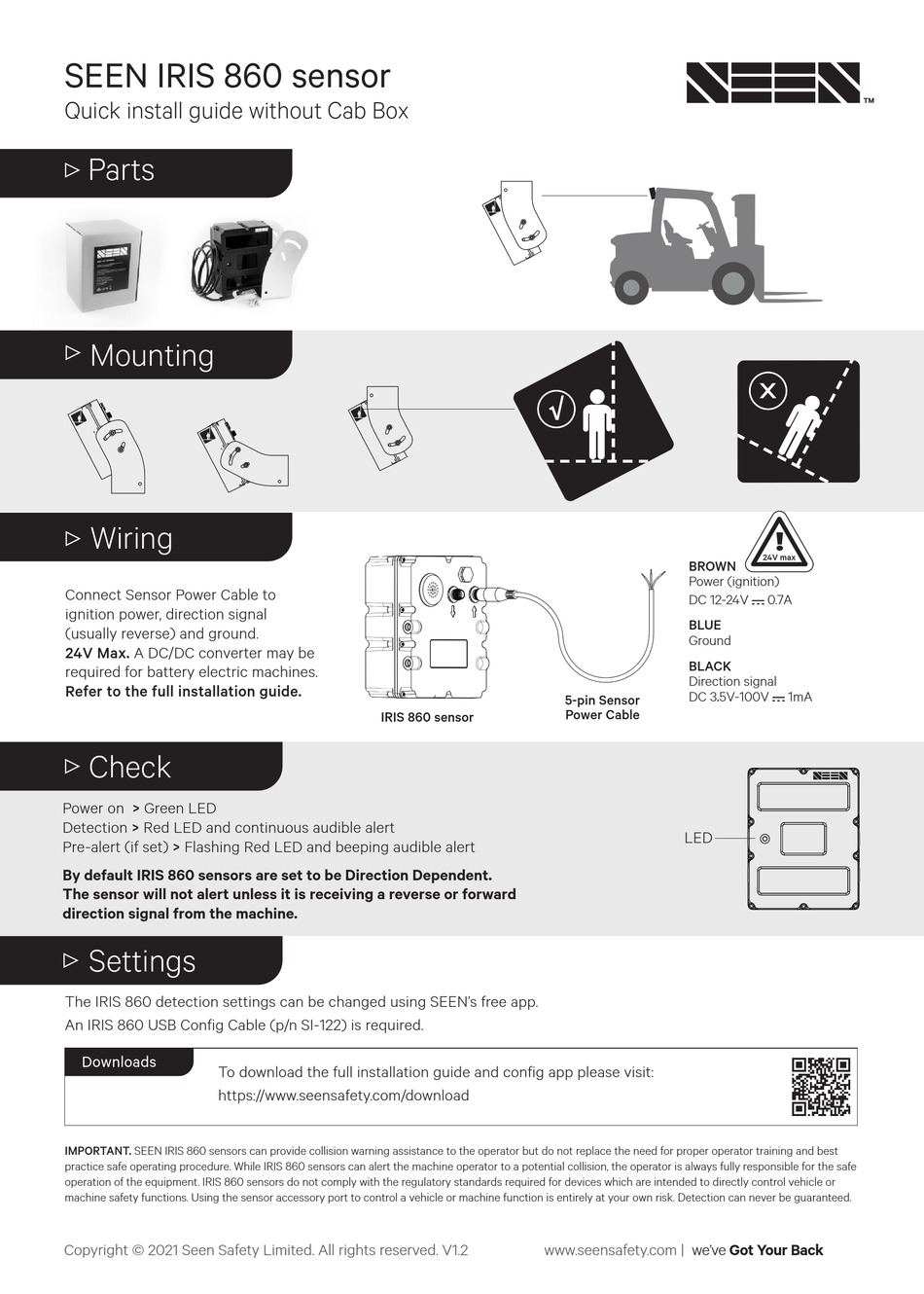

SEEN IRIS 860 sensor
Quick install guide without Cab Box

Parts

Mounting

Wiring

Connect Sensor Power Cable to
ignition power, direction signal
(usually reverse) and ground.
24V Max. A DC/DC converter may be
required for battery electric machines.
Refer to the full installation guide.

Check

Power on > Green LED
Detection > Red LED and continuous audible alert
Pre-alert (if set) > Flashing Red LED and beeping audible alert
By default IRIS 860 sensors are set to be Direction Dependent.
The sensor will not alert unless it is receiving a reverse or forward
direction signal from the machine.

Settings

The IRIS 860 detection settings can be changed using SEEN's free app.
An IRIS 860 USB Config Cable (p/n SI-122) is required.

Downloads

To download the full installation guide and config app please visit:
https://www.seensafety.com/download
IMPORTANT. SEEN IRIS 860 sensors can provide collision warning assistance to the operator but do not replace the need for proper operator training and best
practice safe operating procedure. While IRIS 860 sensors can alert the machine operator to a potential collision, the operator is always fully responsible for the safe
operation of the equipment. IRIS 860 sensors do not comply with the regulatory standards required for devices which are intended to directly control vehicle or
machine safety functions. Using the sensor accessory port to control a vehicle or machine function is entirely at your own risk. Detection can never be guaranteed.
Copyright © 2021 Seen Safety Limited. All rights reserved. V1.2
�

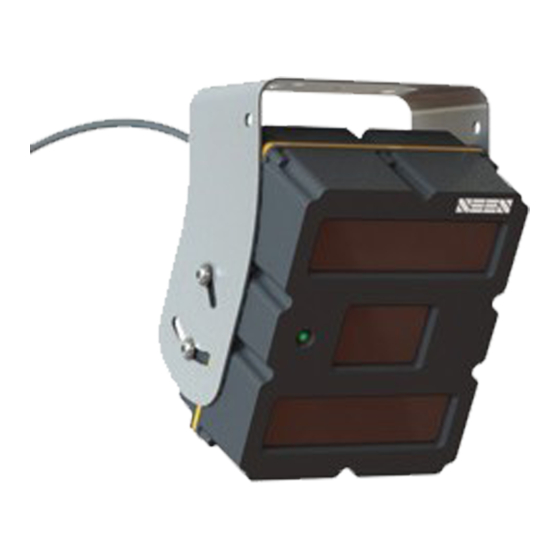

IRIS 860 sensor
www.seensafety.com |
BROWN
Power (ignition)
DC 12-24V
BLUE
Ground
BLACK
Direction signal
DC 3.5V-100V
5-pin Sensor
Power Cable
LED
we've Got Your Back
x
24V max
0.7A
1mA
