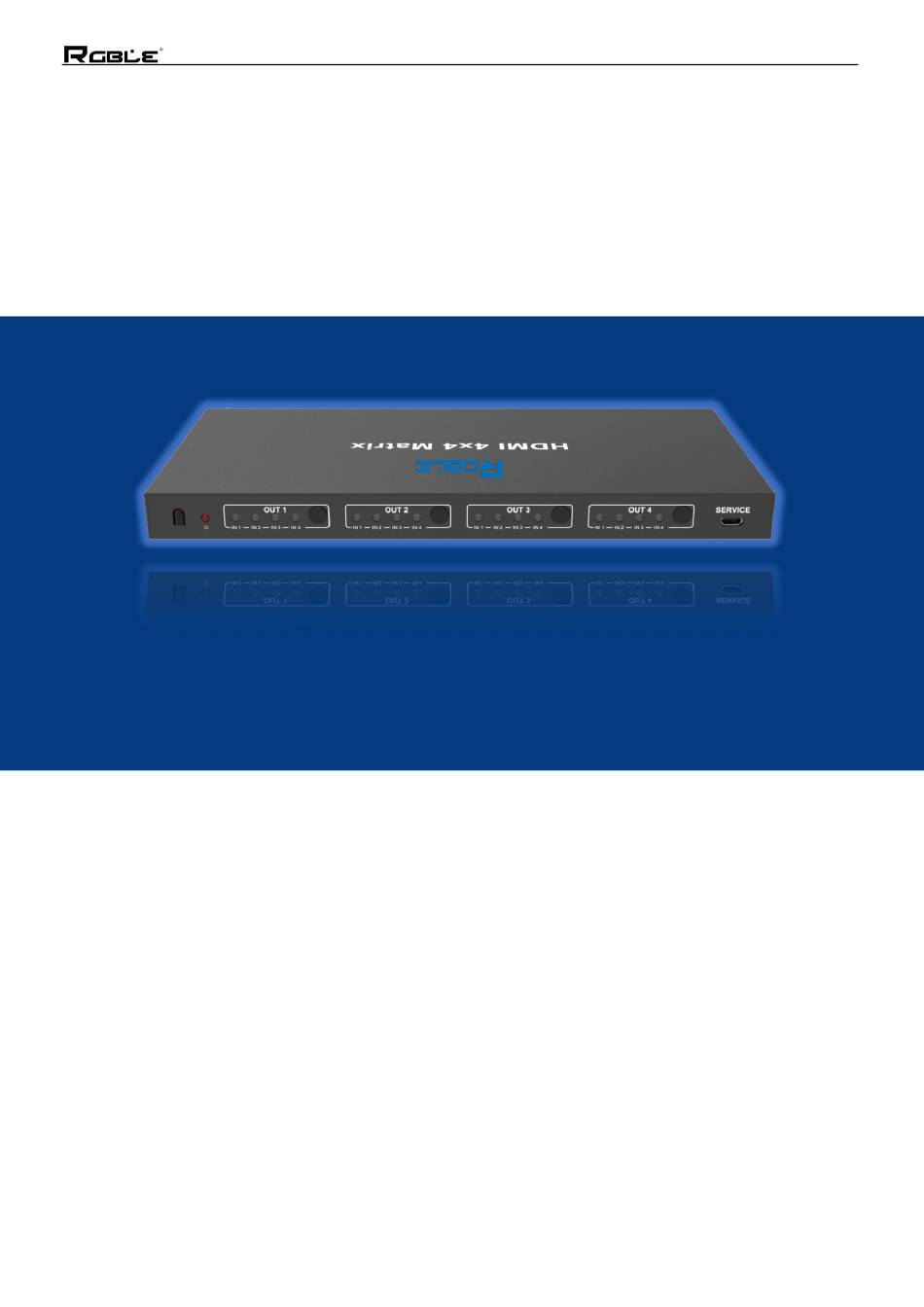

- Page 1 18Gbps 4K2K@60Hz 4X4 HDMI MATRIX SWITCHER MHD-44 User Manual VER 1.0 Stock Code 873117 en.rgble.com 400-1661-021...
- Page 2 1. Introduction..................2 2. Features....................2 3. Package Contents................2 4. Specifications..................3 5. Operation Controls and Functions............4 5.1. Front Panel.................. 4 5.2. Rear Panel................... 5 6. Remote Control..................6 7. Connection Diagram................6 Stock Code 873117 en.rgble.com 400-1661-021...
- Page 3 4K2K@60Hz 18Gbps 1. Introduction The RGBLE MHD-44 4x4 HDMI Matrix supports the transmission of video signal (up to 4K2K@60Hz YCbCr 4:4:4) with multichannel digital audio from up to four high definition sources to up to four HDMI outputs. Each output supports downscaling functionality. It can display the same or different screen on four displays (the user can choose the display screen for any signal source).
- Page 4 Power Supply Output: DC 12V/2.5A (US/EU standard CE/FCC/3C certified) Power Consumption 11.04W Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) Stock Code 873117 en.rgble.com 400-1661-021...
- Page 5 OUT 4 LED: When switching to the corresponding input source, the corresponding input LED illuminates green; Otherwise, the LED will not light up. SERVICE Connect to PC via Micro to USB cable for firmware upgrade. Stock Code 873117 en.rgble.com 400-1661-021...
- Page 6 4K2K60_444, Stereo Audio 2.0 HDR 1010 4K2K60_444, Dolby/DTS 5.1 HDR 1011 4K2K60_444, HD Audio 7.1 HDR 1100 COPY OUTPUT 1 1101 COPY OUTPUT 2 1110 COPY OUTPUT 3 1111 COPY OUTPUT 4 DC 12V DC 12V power supply interface. Stock Code 873117 en.rgble.com 400-1661-021...
- Page 7 1/2/3/4, to select the required source for Output1. ○ 4 SD: Press this button to turn on / off the downscaling function. The corresponding button function of Output2/Output3/Output4 is the same with that of Output1. 7. Connection Diagram Stock Code 873117 en.rgble.com 400-1661-021...
