Wiring The System; Turn Off All Power - Infinity Reference RS-8 Owner's Manual

T O A P
URN FF LL OWER
W
IRING THE
...
IMPORTANT: Make sure all equipment is turned off before making any connections.
Connection Tips
If your receiver does not have a subwoofer output:
RIGHT
– +
– +
RIGHT
SPEAKER OUTPUTS (RECEIVER/AMP)
S
YSTEM

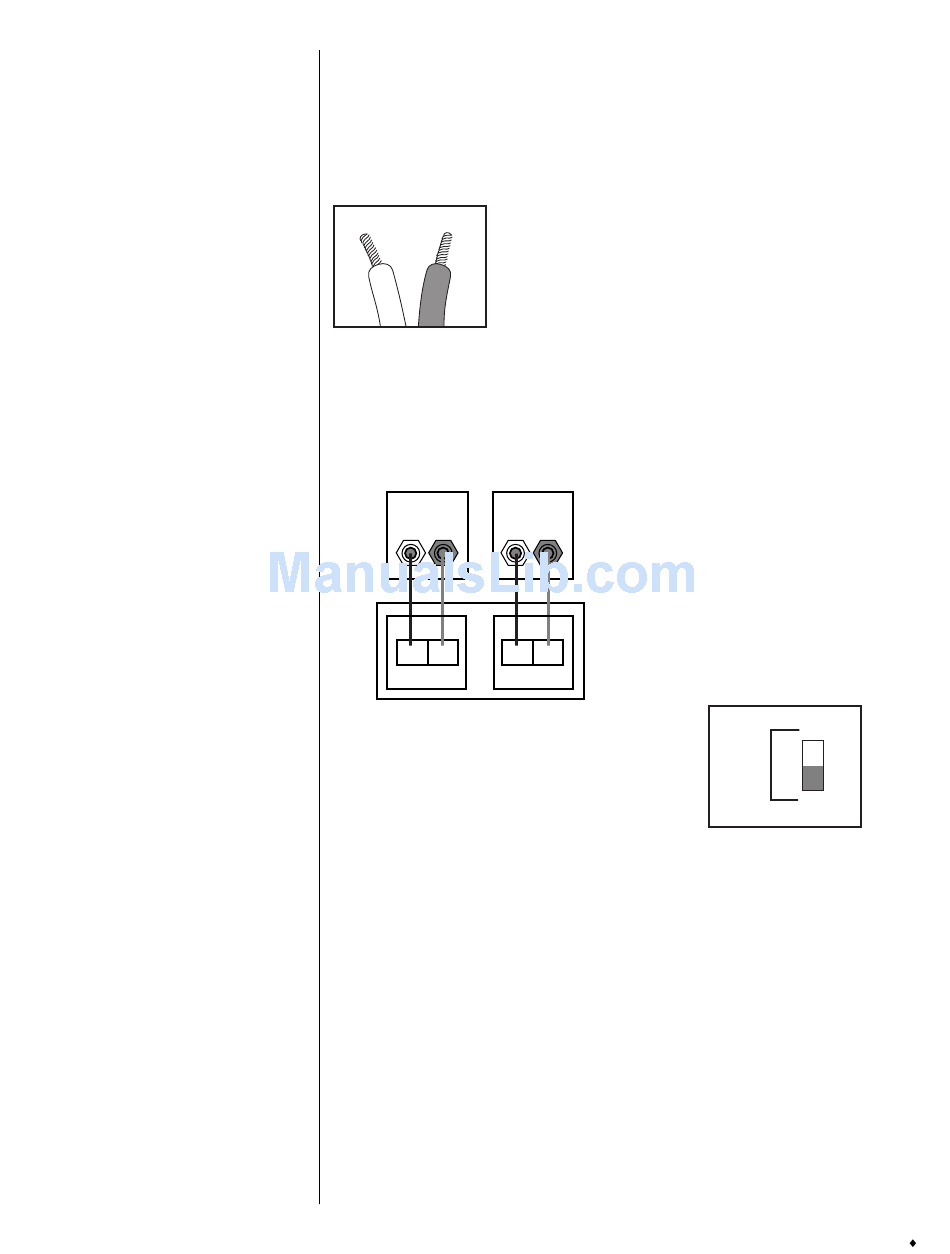

Speakers and electronics terminals have corresponding (+) and (–)
terminals. It is important to connect both speakers identically: (+)
on the speaker to (+) on the amplifier and (–) on the speaker to (–)
on the amplifier. Wiring "out of phase" results in thin sound, weak
bass and a poor stereo image.
RS-8
LEFT
– +
– +
LEFT
Set Input Select switch to "Speaker."
RS-8
Line
INPUT
Select
Speaker
RS-8 – Owner' s Manual 7
