RS-8/RS-8a
Reference Series
Speaker System
SERVICE MANUAL
Infinity Systems, Inc
250 Crossways Park Dr.
Woodbury, New York 11797
REV 2 6/2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reference Series and is the answer not in the manual?

Questions and answers

Related Manuals for Infinity Reference Series

Summary of Contents for Infinity Reference Series

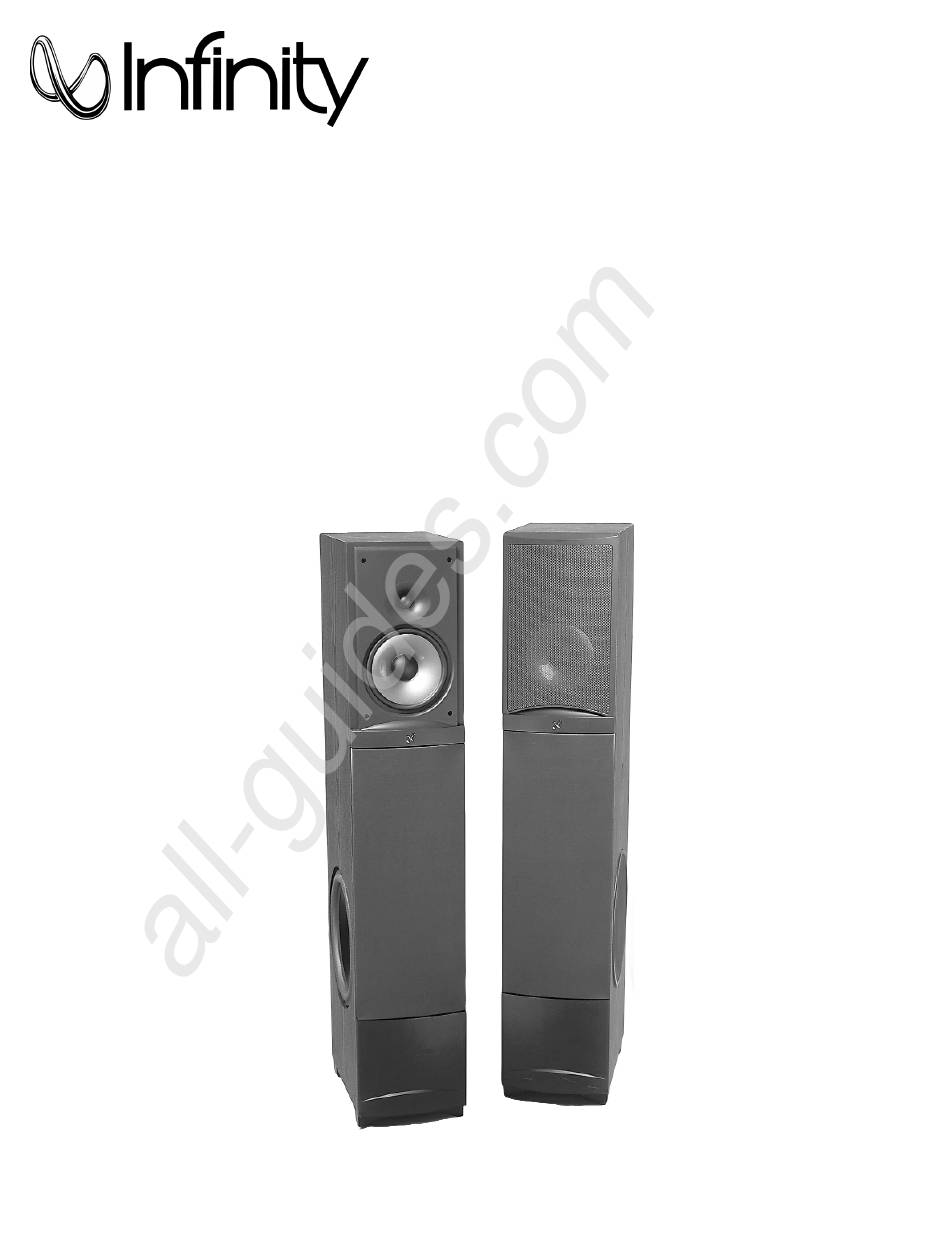

  • Page 1 All manuals and user guides at all-guides.com RS-8/RS-8a Reference Series Speaker System SERVICE MANUAL Infinity Systems, Inc 250 Crossways Park Dr. Woodbury, New York 11797 REV 2 6/2001...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com RS-8/RS-8a TABLE OF CONTENTS SPECIFICATIONS ..........3 DETAILED SPECIFICATIONS .

  • Page 3: Specifications

    All manuals and user guides at all-guides.com RS-8/RS-8a Specifications...

  • Page 4: Detailed Specifications

    All manuals and user guides at all-guides.com RS-8/RS-8a RS8 Amplifier, 100W Powered Sub/Plate Amp...

  • Page 5: Set-Up Guide

    All manuals and user guides at all-guides.com RS-8/RS-8a...
  • Page 6 All manuals and user guides at all-guides.com RS-8/RS-8a...
  • Page 7 All manuals and user guides at all-guides.com RS-8/RS-8a...

  • Page 8: Trouble Shooting

    All manuals and user guides at all-guides.com RS-8/RS-8a Trouble Shooting...

  • Page 9: Service Bulletin

    All manuals and user guides at all-guides.com RS-8/RS-8a Service Bulletin...

  • Page 10: System Components

    All manuals and user guides at all-guides.com RS-8/RS-8a...

  • Page 11: Exploded View

    All manuals and user guides at all-guides.com RS-8/RS-8a Component Exploded View...

  • Page 12: Amplifier Exploded View

    All manuals and user guides at all-guides.com RS-8/RS-8a RS-8a Amplifier Exploded View...

  • Page 13: Block Diagram

    All manuals and user guides at all-guides.com RS-8/RS-8a Block Diagram...

  • Page 14: Pcb Drawing

    All manuals and user guides at all-guides.com RS-8/RS-8a RS-8a Circuit Boards Control PCB Main PCB...
  • Page 15 All manuals and user guides at all-guides.com RS-8/RS-8a RS-8a Circuit Boards (Cont.) Control PCB Main PCB...
  • Page 16 All manuals and user guides at all-guides.com RS-8/RS-8a RS-8a Circuit Boards (Cont.) Control PCB Main PCB...
  • Page 17 All manuals and user guides at all-guides.com RS-8/RS-8a RS-8 Circuit Board...

  • Page 18: Power Transformer

    All manuals and user guides at all-guides.com RS-8/RS-8a Power Transformer 1.330 3.080 TERMINAL FASTON (3X) 0.187" X 0.020" RED COLOR WITH YELLOW STRIPE AROUND RED COLOR (2X) 2.650 2.600 3.570 AMP 2-520263-2 (3X) OR EQUIVALENT R0.188 (MATES WITH FASTON (2X) 11.00 TERMINAL 0.250"...

  • Page 19: Rs8 Electrical Parts List (120V)

    All manuals and user guides at all-guides.com RS-8/RS-8a RS-8 Electronic Parts List (120v) Model RS-8 does not have an “m” in the serial number. Model RS-8a has an “m” in the serial number. Reference Designator Part Number Description Quantity...
  • Page 20 All manuals and user guides at all-guides.com RS-8/RS-8a Electronic Parts List (Cont.) Reference Designator Part Number Description Quantity...
  • Page 21 All manuals and user guides at all-guides.com RS-8/RS-8a Electronic Parts List (Cont.) Reference Designator Part Number Description Quantity...

  • Page 22: Rs8A Electrical Parts List

    All manuals and user guides at all-guides.com RS-8/RS-8a RS-8 Electronic Parts List (120v) Continued. Reference Designator Part Number Description Quantity...
  • Page 23 All manuals and user guides at all-guides.com RS-8/RS-8a RS-8a Electrical Parts List Model RS-8 does not have an “m” in the serial number. Model RS-8a has an “m” in the serial number. Part Number Designator Description...
  • Page 24 All manuals and user guides at all-guides.com RS-8/RS-8a Electrical Parts List (Cont.) Part Number Designator Description...
  • Page 25 All manuals and user guides at all-guides.com RS-8/RS-8a Electrical Parts List (Cont.) Part Number Designator Description...

  • Page 26: Integrated Circuit Diagrams

    All manuals and user guides at all-guides.com RS-8/RS-8a Integrated Circuit Diagrams 4558 DUAL OP AMP, DUAL IN-LINE PACKAGE (TOP VIEW) LM311 COMPARATOR, IC101,102,201,202,203 IC102 OUTPUT INPUT INPUT OFFSET/ STROBE INPUT OFFSET TIP31C, TIP32C, JFET - TL072, TR1183, 1184 IC1041 1. D 2.

  • Page 27: Early Rev0 Schematics

    All manuals and user guides at all-guides.com RS-8/RS-8a RS-8 Rev 0 Schematic...

  • Page 28: Rs-8 Rev1 Schematic

    All manuals and user guides at all-guides.com RS-8/RS-8a RS-8 Rev1 Schematic...

  • Page 29: Rs-8A Schematics

    All manuals and user guides at all-guides.com RS-8/RS-8a RS-8a Schematics...
  • Page 30 All manuals and user guides at all-guides.com RS-8/RS-8a RS-8a Schematic(Cont.)
  • Page 31 All manuals and user guides at all-guides.com RS-8/RS-8a RS-8a Schematics (Cont.)

This manual is also suitable for:

Rs-8Rs-8a
