Infinity Classia C205 User Manual page 2

I C
NFINITY LASSIA
The Infinity Classia series of loudspeakers continues the longstanding
™
Infinity ® commitment to accurate sound reproduction. Our patented Ceramic
Metal Matrix Diaphragm (CMMD
and rigid, well-braced enclosures combine to deliver uncompromised
performance in any stereo or multichannel home theater system.
In addition, Infinity Classia speakers are magnetically shielded for
safe placement adjacent to a television.
U
NPACKING THE
If you suspect damage from transit, report it immediately to your dealer.
Keep the shipping carton and packing materials for future use.

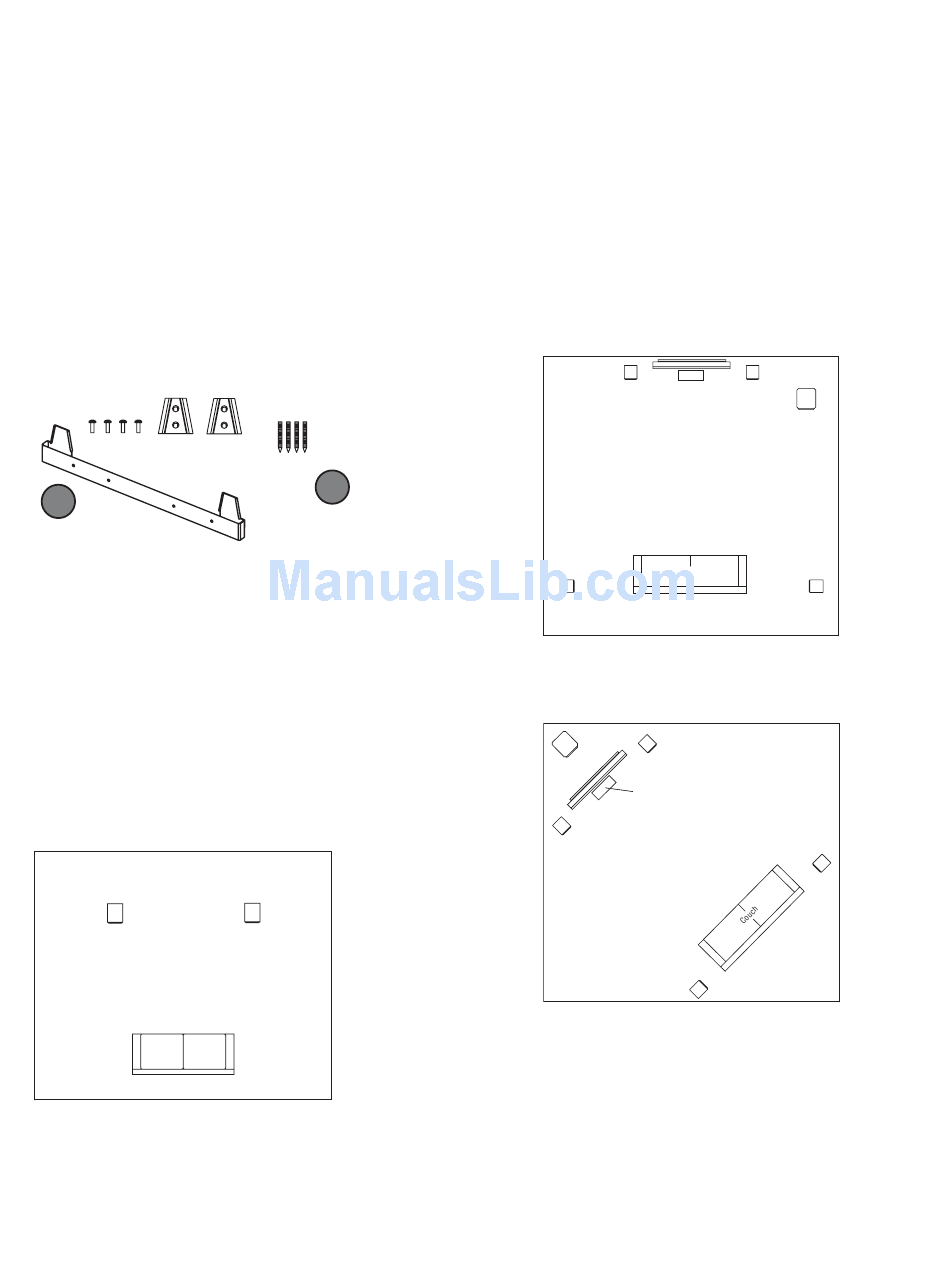

W I
HAT ' S NCLUDED
CC225
1/4"-20 Screws Cleats
Wall
Bracket
x 4
Rubber Bumpers
(For Bottom of Speaker)
P
LACEMENT
Stereo
Before deciding where to place your speakers, survey your room and
think about placement, keeping the following points in mind, using
Figure 1 as a guide:
• For best results, place the speakers 6'– 8' apart.
• Position each speaker so that the tweeter is approximately at ear level.
• Generally, bass output will increase as the speaker is moved closer to
a wall or corner.
• Refer to the "Home Theater" section if you also plan to use the speakers
for home theater reproduction.
Left
Channel
Listening Position
Figure 1. Experiment with speaker placement to obtain the best
bass level and stereo imaging in your room.
2 INFINITY CLASSIA
S
™ ERIES
® ) drivers, precision dividing networks
S
PEAKERS
C336
Spike Kit
C205
x 5
Rubber Bumpers (Four for Bottom
of Speaker, One for Rear of Speaker
if Wall-Mounting). See Page 3.
Right
Channel
H T
OME HEATER
For front-channel use, place one speaker on the left and another on the
right, along either side of the television monitor. Since the speakers are
magnetically shielded, you can place them without worrying about the
field distorting the TV picture.
For surround use, place speakers alongside the listening position.
Final placement depends on room acoustics, availability of space
and your listening preference (Figures 2 and 3).
The CC225 center channel speaker should be placed on top of or directly
below the television and aimed toward the listening area.The CC225
speaker may also be wall-mounted. See page 3.
NOTE: An Infinity powered subwoofer will add impact and realism to both
music and film soundtracks. Contact your Infinity dealer for recommenda-
tions on subwoofer models for your application.
Left
Center
Front
Channel
Channel
Couch
Left
Surround
Channel
Figure 2.This overhead view shows a typical
home theater plan.
Infinity Subwoofer
Right
(optional)
Front
Channel
Center
Channel
Left
Front
Channel
Left
Surround
Channel
Figure 3.This figure shows an alternate layout,
which may be more suitable for some rooms.
Infinity
Subwoofer
(optional)
Right
Front
Channel
Right
Surround
Channel
Right
Surround
Channel
