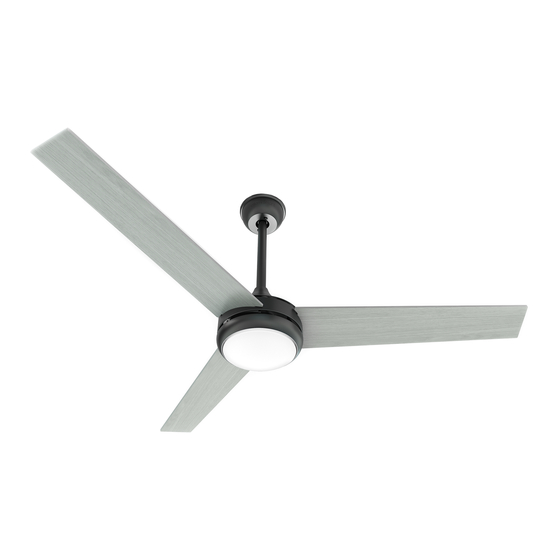

- Page 1 Let’s get started! Smart WiFi Ceiling Fan Quick Start Guide v1.12/21...
-
Page 2: For Your Safety
FOR YOUR SAFETY READ AND SAVE ALL INSTRUCTIONS BEFORE USING. WARNING 1. To reduce the risk of fire, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the screws provided in the bags C1, C2 or C3, or use the ones provided with the outlet box. -
Page 3: What's In The Box
WHAT’S IN THE BOX Ceiling fan (x1) Fan blade (x3) 12” downrod (x1) Angled canopy (x1) Glass shade (x1) Light ring (x1) LED board (x1) Bag A Bag B1 Blade screw (x10) Standard Paper washer (x11) mounting bracket (x1) Bag B2 Bag C1 Bag C2 Bag C3... -
Page 4: Tools Needed For Installation
TOOLS NEEDED FOR INSTALLATION Ladder Screwdriver Wire strippers Drill (If applicable) (If mounting to a support structure or concrete. Only concrete-compatible screws are included.) SELECT YOUR INSTALLATION LOCATION Measure room dimensions 30 inches 7 feet from from blade tip bottom to nearest wall edge of or obstruction... -
Page 5: Flush Mounting
CEILING FAN MOUNTING OPTIONS Unpack and inspect the fan carefully to be certain all parts are included. Flush Mounting Standard Mounting Pre-assembled. The Atomi Smart Ceiling Fan comes already prepped for this installation option. Ceiling Outlet Box Ceiling Outlet Box... -
Page 6: Installing The Blades
FOR THIS STEP YOU WILL NEED INSTALLING THE BLADES One at a time, insert each blade into the slot on the fan structure. Secure each blade with the screws and washers found in bag A. -
Page 7: Assembling The Light Fixture
FOR THIS STEP YOU WILL NEED ASSEMBLING THE LIGHT FIXTURE Remove the three screws as shown in the drawing. Pass the connector through the center hole of the light ring and the LED board. - Page 8 Connect the white plug from the housing structure to the white plug in the LED board. Align the keyhole slots in the light ring and the LED board with the keyhole slots in the housing area. Insert the screws and tighten them. PREVENT FAN FALLING INJURY OR DEATH.
-
Page 9: Installing The Brackets
INSTALLING THE BRACKETS Only use the provided Atomi Smart ceiling bracket that comes with your fan. Pick which installation option (below) that works best for your location. Remove any existing bracket from your ceiling prior to installation. PREVENT POSSIBLE ELECTRIC SHOCK. Before installing your fan, disconnect the power by turning off the circuit breakers to the outlet box associated with the wall switch location. - Page 10 REPLACING THE DOWNROD (OPTIONAL) This step is for Standard and Angled Mounting only. For the Flush Mounting (pre-assembled) go to Step 5. If you have a longer downrod from Atomi Smart, please, follow the same instructions. If you are using the Angled Bracket,...
- Page 11 Locate and remove the clip and pin. Loose the screws and remove the downrod, canopy, and funnel.
- Page 12 Remove the clip and pin from the new downrod. Insert the canopy and funnel Keep the canopy and funnel up into the downrod, passing all and insert the pin and clip. wires through the downrod.
- Page 13 Tighten the screws. Slide down the funnel. Re-attach the wires to the wire splitter, matching the colors. Plug the white and black wires. Note: Use the canopy to place the exceeded wires.
-
Page 14: Hanging The Fan
HANGING THE FAN Lift and carefully hang the fan on the mounting bracket. -
Page 15: Wiring The Fan
FOR THIS STEP YOU WILL NEED WIRING THE FAN Carefully follow these steps to get your fan wired safely and quickly. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualified electrician. THE CEILING FAN MUST BE GROUNDED. WIRING MUST BE UP TO CODE. - Page 16 Push the bare metal ends of the wires together and slide a wire nut over them. Twist the wire nut clockwise until tight. Give it a gentle pull to ensure none of the wires come apart. Connect the BLACK Connect the WHITE Connect the GREEN (ungrounded) wire from the wire from the RECEIVER...
-
Page 17: Installing The Canopy
FOR THIS STEP YOU WILL NEED INSTALLING THE CANOPY Lift the canopy into place so that the screw Tighten the screws. holes are aligned with the housing holes. Fit the canopy in place as shown (1) and turn it clockwise. -
Page 18: Installing The Glass Shade
Turn on the circuit breakers to the outlet box associated with the wall switch location, then turn on the wall switch and check if the Atomi Smart WiFi Ceiling Fan starts flashing white light. If it does not flash a white light, please, check all wiring connections for any wrong connections. -
Page 19: Using The Remote Control
FOR THIS STEP YOU WILL NEED USING THE REMOTE CONTROL Note: Requires 2 AAA batteries (not included). Control buttons Light Switch + Brightness Press to turn the light ON/OFF Press to increase the light brightness Brightness by 10%. Hold the button to quickly Warm increase to maximum levels Press to increase the white light... - Page 20 Attaching to an existing light switch Note: This is only compatible with toggle switches. Remove the screws from your light switch cover Place the Remote Control Mount over the cover (Do not remove the cover). and attach it with the cover’s screws. Mounting it to the wall Place the Remote Control Mount Drill holes for the included...
- Page 21 Now that your Smart WiFi Ceiling Fan is installed, it is time to connect and start using it. Connecting your Smart WiFi Ceiling Fan...
- Page 22 Register Get the app Register Download the Atomi Smart app from the App Follow the on-screen instructions and register an Store or Google Play. account. Make sure to allow access to Location (Android), Bluetooth and Local Network (iOS). Add Device...
- Page 23 WiFi Password Continue Select the right network Enter your home WiFi name and password, then press “Continue” Make sure you’re connected to a 2.4GHz WiFi network (Atomi Smart can’t connect to 5GHz networks).
-
Page 24: Troubleshooting
WiFi bars in the vicinity of your Atomi your devices and add them again to the app. Smart device. If not, move your Atomi Smart device closer to your router. (The list will refresh every 10 How to reset my device? seconds). - Page 25 The Ceiling Fan is too noisy Remote Control doesn’t work Confirm that the blades are properly installed. - Make sure that the AAA batteries (not included) are correctly in place. The Ceiling Fan is wobbling - Replace the batteries with new ones. - Confirm that the downrod was correctly attached to the mounting bracket.
- Page 26 8. Promo code is not exchangeable for cash. 4. Customers can only use the promo code once. 9. Atomi Smart will not be liable and/or be required to offer replacement codes, discounts, credits, cash or otherwise 5. Atomi Smart reserves the right to cancel or modify any order, or revoke the use of the promo code for any reason.
- Page 27 Manufactured and marketed by Atomi Inc. 10 West 33rd St., New York, NY 10001 atomi™ is a trademark of Atomi Inc. atomi smart is a registered trademark of Atomi Inc. ® Designed by Atomi in New York. Made in China.
