Parts List
Control Box
Power Cable
Lifting Column
3
Foot
3
Thank you for your order!
If you have any issues with your product, please feel free to contact us via
team@effydesk.ca
For more information, please visit
https://effydesk.ca/pages/how-to-assemble-your-height-adjustable-standing-desk
Instruction Manual
info@effydesk.ca
or
Technical Data
Segment Column
Recommend Load
Height Range
Accessory List
Accessory List
Ax12
Bx8
M6X12
M6X8
Ex19
Fx2
Rubber Pads
M4X12
Ix12
Jx16
M5X20
M8X10
We will help you resolve the issue as soon as possible.
3
300 lbs
＜
Certification
240 lbs
600-1250mm
Tool Required
Cx19
Dx10
or
M5X18
M6X16
Zip Ties
Gx12
Hx6
3mm Allen Key
(included)
M6X16
M4X10
Kx2
Lx2
Tape Measure
Mending Plates
Hangers
Extension Cord
Side Bracket
6
7
8
9
35mm/s
UL
4mm Allen Key
(included)
Screwdriver
2
3
Crossbar
Cable Tray
Keypad
Advertisement
Related Manuals for Effydesk Executive
Summary of Contents for Effydesk Executive

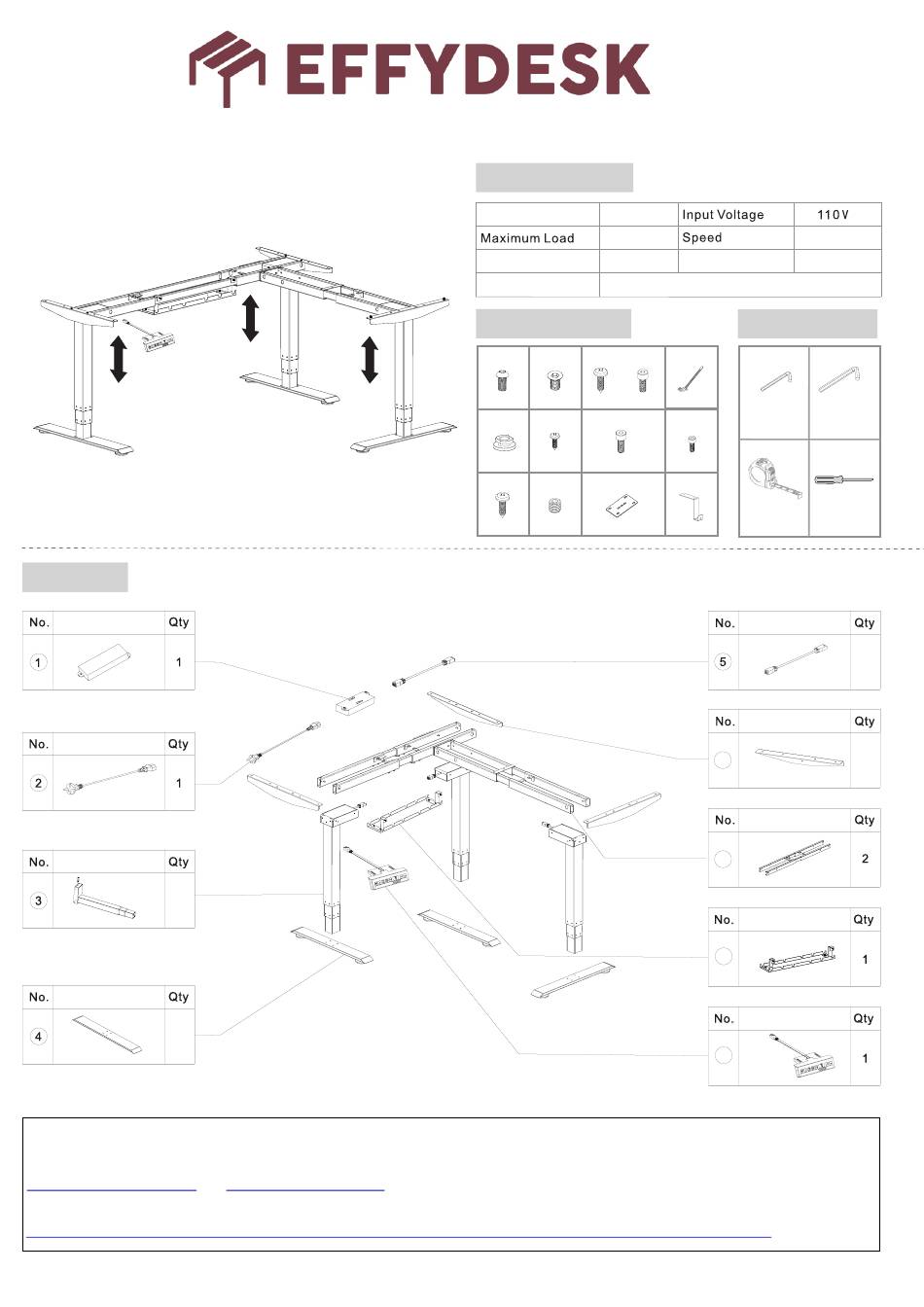

- Page 1 Foot Keypad Thank you for your order! If you have any issues with your product, please feel free to contact us via info@effydesk.ca team@effydesk.ca We will help you resolve the issue as soon as possible. For more information, please visit...
- Page 2 Separate the Crossbar ⑦ and you will find the Crossbar Rail inside. STEP 1 Crossbar Rail Crossbar End Crossbar End Insert one of the Crossbar Ends into the one of the Lifting Columns ③ and secure with screws. STEP 2 Repeat the same step for the other Lifting Column.
- Page 3 Attach the Crossbar as shown. STEP 4 Allen Key Slide the Crossbar two Rails back into the Crossbar Ends. STEP 5 Please make sure to fit the slots as shown below. STEP 6 Attach the Feet ④ to the bottom of the Lifting Columns. Allen Key...
- Page 4 Use the screws to tighten the Hangers onto Place Mending Plates (J) over the seam STEP 7 STEP 8 the Crossbar. between the two tabletops and attach them using Wood Screws (I). Allen Key Screwdriver Note: The screws do not go through the Crossbar. Hangers, Allen Key and screws are found in a separate bag.
- Page 5 connect all the cables to the Control Box ①. Firmly secure the Crossbar with Screws (A) and STEP 10 Power Port Lifting Column Ports Keypad Port Allen Key Note : Use Zip Ties (D) to secure cables under the table. Slider for Control Box STEP 11 Attach the Cable Tray ⑧...
- Page 6 Attach the Keypad ⑨ with Screws (F) to the tabletop. STEP 12 Screwdriver STEP 13 Plug the cable from the Keypad into the Control Box and flip the table onto its feet. Power Port Lifting Column Ports Keypad Port Note: The Control Box is equipped with a gyro sensor so the table and the Control Box must be level in order to work properly or else it will not move up and down.
- Page 7 Prepare for First-time Use Memory Programmable Presets Desk Height Up and Down Before plugging in the table, make sure that The Lifting Columns are level and set at their lowest position. ● All the screws are tightened to avoid the desk becoming wobbly. ●...
- Page 8 Reset the table When an error code or “RST” appears on the display, please reset the table. Unplug the power cord from the Control Box. ● Unplug the cable that connects the Keypad to the Control Box. ● Wait 30 minutes and plug all the cables back in again. ●...
- Page 9 If you have any questions, please contact us at team@effydesk.ca info@effydesk.ca www.effydesk.ca...
