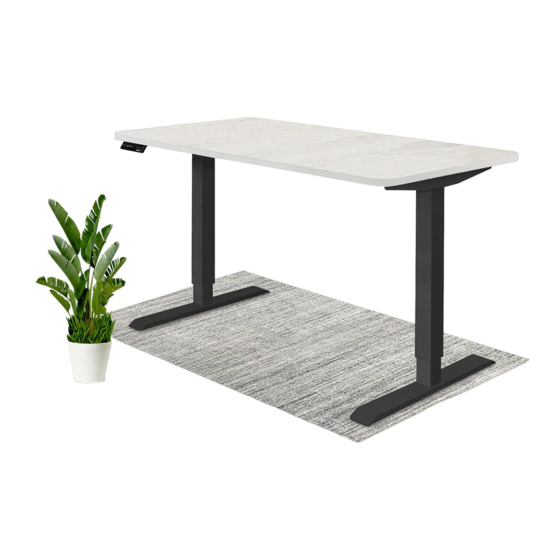

Parts List
Control Box
Power Cable
Lifting Column
Foot
Thank you for your order!
If you have any issues with your product, please feel free to contact us via
team@effydesk.ca
For more information, please visit
https://effydesk.ca/pages/how-to-assemble-your-height-adjustable-standing-desk
Instruction Manual
or
info@effydesk.ca
Technical Data
Segment Column
Recommend Load
Height Range
Accessory List
Accessory List
Ax16
Bx4
M6X12
M6X8
Dx5
Ex12
Zip Tie
Rubber Pad
Power Bar Holder
We will help you resolve the issue as soon as possible.
2
240 lbs
<220 lbs
710-1160mm
Tool Required
Cx12
or
4mm Allen Key
(included)
M5X18
M6X16
Fx2
Gx8
M4X12
M6X16
Jx1
6
7
8
30mm/s
UL
Tape Measure
Screwdriver
Extension Cord
Side Bracket
Keypad
Crossbar
Advertisement
Related Manuals for Effydesk Home Office Standing Desk 715 CAD
Summary of Contents for Effydesk Home Office Standing Desk 715 CAD
- Page 1 Crossbar Foot Thank you for your order! If you have any issues with your product, please feel free to contact us via team@effydesk.ca info@effydesk.ca We will help you resolve the issue as soon as possible. For more information, please visit...
- Page 2 STEP 1 Separate the Crossbar ⑧ and you will find the Crossbar Rail inside. Crossbar Rail Crossbar End Crossbar End Insert one of the Crossbar Ends into the one of the Lifting Columns ③ and secure with screws. STEP 2 Repeat the same step for the other Lifting Column.
- Page 3 Slide the two Crossbar Ends back into the Crossbar Rail. STEP 4 Please make sure to fit the slots as shown below. Note: Please make sure the circular holes are facing inwards as shown below. Slider for Control box Attach both Feet ④ to the bottom of the Lifting Columns. STEP 5 Allen Key...
- Page 4 STEP 6 Install the tabletop (Predrilled / Non-predrilled ). Predrilled Non-predrilled Connect all the cables to the Control Box ①. STEP 7 Power Port Lifting Column Ports Keypad Port Note : Use Zip Ties (D) to secure cables under the table.
- Page 5 STEP 8 attach the Keypad ⑦ with Screws (F) to the tabletop. Firmly secure the Crossbar with Screws (A) and Allen Key Screwdriver STEP 9 a) Carefully peel the backing on one side of the double-sided adhesive and stick it to the back side of either slider.
- Page 6 STEP 10 Slide the Power Bar into the Power Bar Holder as shown below. STEP 11 Plug the cable from the Keypad into the Control Box and flip the table onto its feet. Power Port Lifting Column Ports Keypad Port Note: The Control Box is equipped with a gyro sensor so the table and the Control Box must be level in order to work properly or else it will not move up and down.
- Page 7 Prepare for First-time Use Memory Programmable Presets Desk Height Up and Down Before plugging in the table, make sure that The Lifting Columns are level and set at their lowest position. ● All the screws are tightened to avoid the desk becoming wobbly. ●...
- Page 8 Reset the table When an error code or “RST” appears on the display, please reset the table. Unplug the power cord from the Control Box. ● Unplug the cable that connects the Keypad to the Control Box. ● Wait 30 minutes and plug all the cables back in again. ●...
- Page 9 If you have any questions, please contact us at team@effydesk.ca or info@effydesk.ca www.effydesk.ca...
