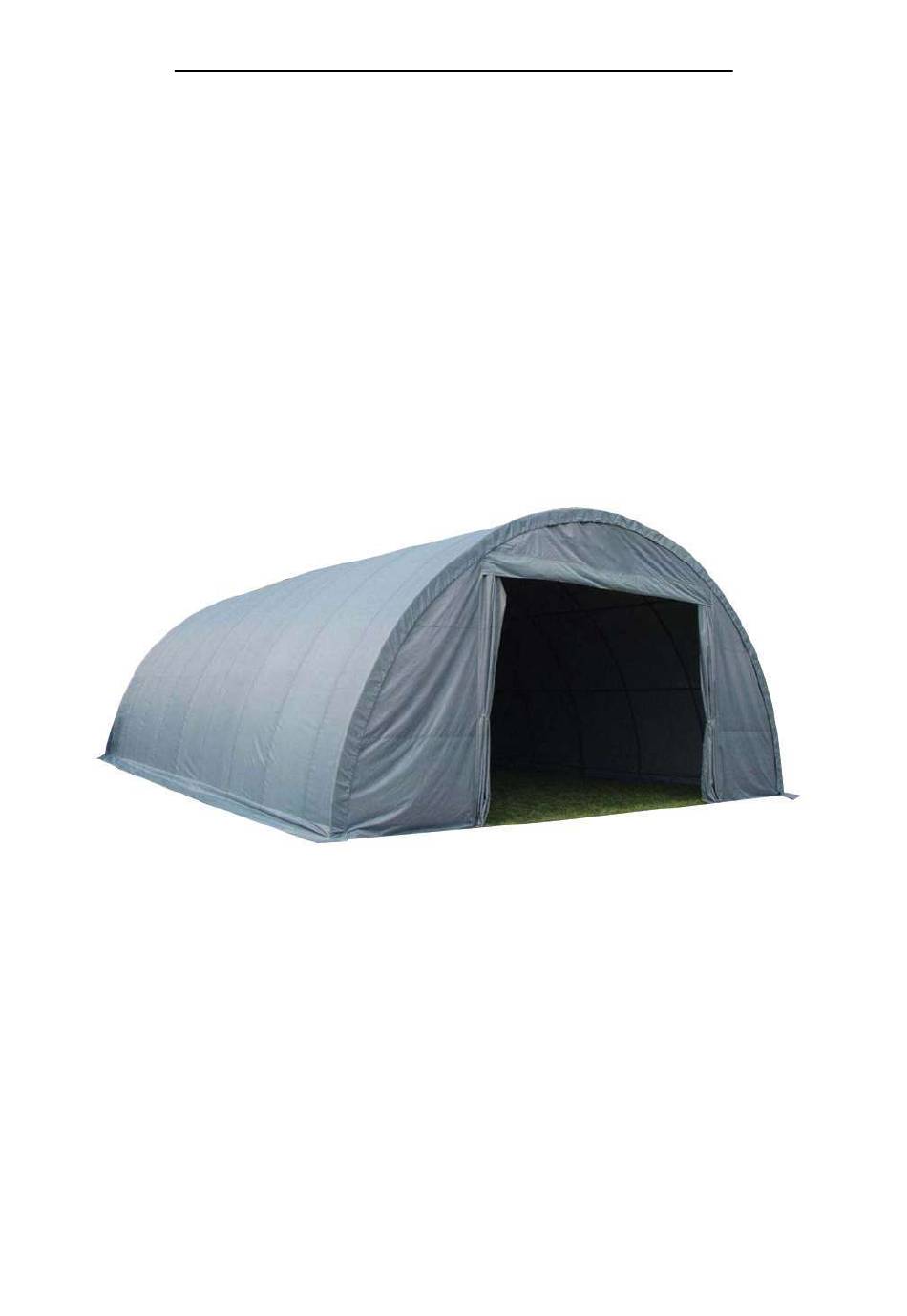

- Page 1 Covering Your World FABRIC BUILDING INSTRUCTIONS MODEL:SH-RO205010 W20'xL50'xH10' PICTURE MAY NOT REFLECT THE EXACT MODEL doc#SH-RO205010-2017-03...
- Page 2 Covering Your World TO OUR NEW AND VALUED CUSTOMER Thank you for purchasing your new Instant Shelter. We know you will have as much pleasure owning your new shelter as we had in making it for you. Our shelters have been designed for rapid assembly and minimal maintenance.
- Page 3 Covering Your World CLIMBING EQUIPMENT It is highly recommended that scaffolding, ladders and mechanical lifting equipment conform to all local building codes when erecting the shelter. Safety straps and harnesses should be used at all times. The metal structure of the shelter has not been designed for human weight. Erecting shelter during wind or rain is unsafe and could result in serious injury.
- Page 4 Covering Your World SHELTER RELOCATION Should the shelter require relocation or disassembly for any reason, it is strongly recommended that the structure and its cover are thoroughly inspected prior to rebuilding PERIODIC SHELTER INSPECTION As with all structures, periodic inspection of the cover and all structural components is highly recommended.
- Page 6 M8x75 M8x75 M8x90 Door Bracing cable kit 6x4020 Wind bracing strap Base for #31 M12x120 Wedge anchor for#32...
- Page 10 Choose the place you want to fix the shelter, measure according to above drawing, then place and connect the base parts as illustrated below, and fix to ground with anchors.
- Page 11 Step 1: Install the firt row of rafters with#3,#4 and #1,#2. Then put it in the base feet.(To avoid accident, It is very important to hold the first row of rafter with support(wood, rope or similar thing), make sure that it won’t fall down.) Step 2: Install the second row of rafters with #1,#2,then connect with first row with #11,#12, bracing with #22 and fasten.
- Page 12 Step 3:The same way to install other rows of rafters. Step 4:Install the door frames as illustrated below, then fasten all the screws and parts again.
- Page 13 TIPS : Slide the roof cover over assembled frame from one side insert the conduit to pocket on side: #13 #14 Pocket for side wall conduit Ratchet tie down for tensioning the Side wall (roof cover)
- Page 14 Note: #34for main roof cover tensioning. #35 for front and end covers tensioning. Your assembled shelter will be similar to the illustration as below : Illustration for Ratchet...
- Page 15 Door Bracing cable...
- Page 16 Covering Your World (in order to protect the shelter from heavy wind, please install the wind bracing straps at points 300 mm measur- ing from the ends, and others to be installed in the middle averagely.) (photos are for reference only, the real quantity is according to packing list.)
