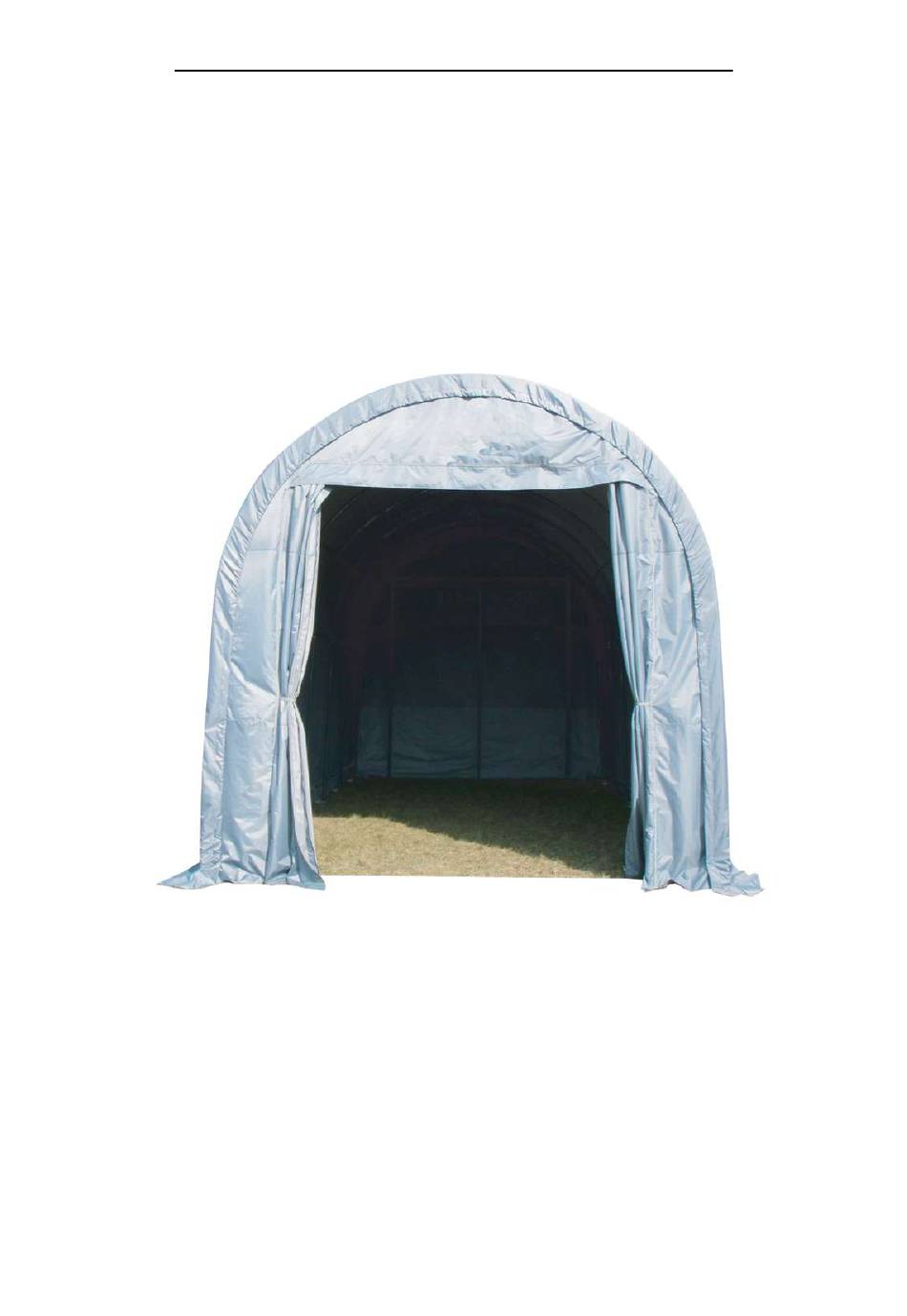

- Page 1 Covering Your World PORTABLE SHELTER INSTRUCTIONS MODEL:SH-1430R L9.2mxW4.3mxH4.3m PICTURE MAY NOT REFLECT THE EXACT MODEL 20170301...
- Page 5 Covering Your World PARTS LIST FOR SH-1430R Dimensions Parts# Descriptions Diagram Q'TY BOX (in mm) 45x1630 Top rafter 45x1630 Top rafter Side roof rafter 45x1630 Side roof rafter(end) 45x1630 Leg rafter 45x2100 Door frame vertical tube(upper) 45x1360 45x2100 Door frame vertical tube(lower)
- Page 6 Covering Your World PARTS LIST FOR SH-1430R Dimensions Parts# Descriptions Diagram Q'TY BOX (in mm) Upper door support connection Door frame side cross support connection clamp Door sliding cable kits 6x3000 (S:12pcs/L) Side rafter bracing cable 6x2280 Roof rafter bracing cable...
- Page 7 Covering Your World PARTS LIST FOR SH-1430R Dimensions Parts# Descriptions Diagram Q'TY BOX (in mm) Door bracing cable kit 6x4220 Roof wind bracing strap Base (for #40) Wedge anchor (for #41) M12x120 Auger anchor Guy rope 6x4000 Guy rope fixer...
- Page 8 Covering Your World SH-1430R...
- Page 9 Covering Your World SH-1430R Main Dimention(mm) ※サイズは約です。必ず現物で合わせてください。...
- Page 10 Covering Your World Base drawing (mm) ※サイズは約です。必ず現物で合わせてください。...
- Page 11 Covering Your World Frame Assembly Steps Choose the place, measure according to above drawing, and install base as illustrated below. （Note：Please install the shelter after the concrete concreted）...
- Page 12 Covering Your World Step 1: Install the first row of rafters with #5, #4 and #1, #2 as illustrated below. (To avoid accident, It is very important to hold the first row of rafter with support(wood, rope or similar thing), make sure that it won’t fall down.) Step 2: Install the second row of rafters with #5,#3 and #1, #2, connect the first row with #11, #12, install the cables#24, #25, and fasten.
- Page 13 Covering Your World Step 3：The same way to install other rows of rafters, purlin and cables. Step 4：Install the end frames as following，then fasten all the screws and parts.
- Page 14 Covering Your World Roof Cover Assembly TIPS : Slide the roof cover over assembled frame from one side insert the conduit to pocket on side: #14 #15 Pocket for side wall conduit Ratchet tie down for tensioning the Side wall (roof cover)
- Page 15 Covering Your World Step 2 : Attach the cover (#33/#35) to the frame as following : Note: #33for main roof cover tensioning. #35 for front and end covers tensioning. Your assembledshelter will be similar to the illustrationbelow : #37 #38 Illustration for Ratchet using.
- Page 16 Covering Your World PS:Guy rope using instruction: Inside view Fix the item #A,#B,#C onto the sides of shelter as shown above,to tension the shelter and make the shelter stable. Cinch the rope to auger anchor as shown below,and fix the anchor into ground.
- Page 17 Covering Your World...
- Page 18 Covering Your World (in order to protect the shelter from heavy wind, please install the wind bracing straps at points 300 mm measur- ing from the ends, and others to be installed in the middle averagely.) (photos are for reference only, the real quantity is according to packing list.)
