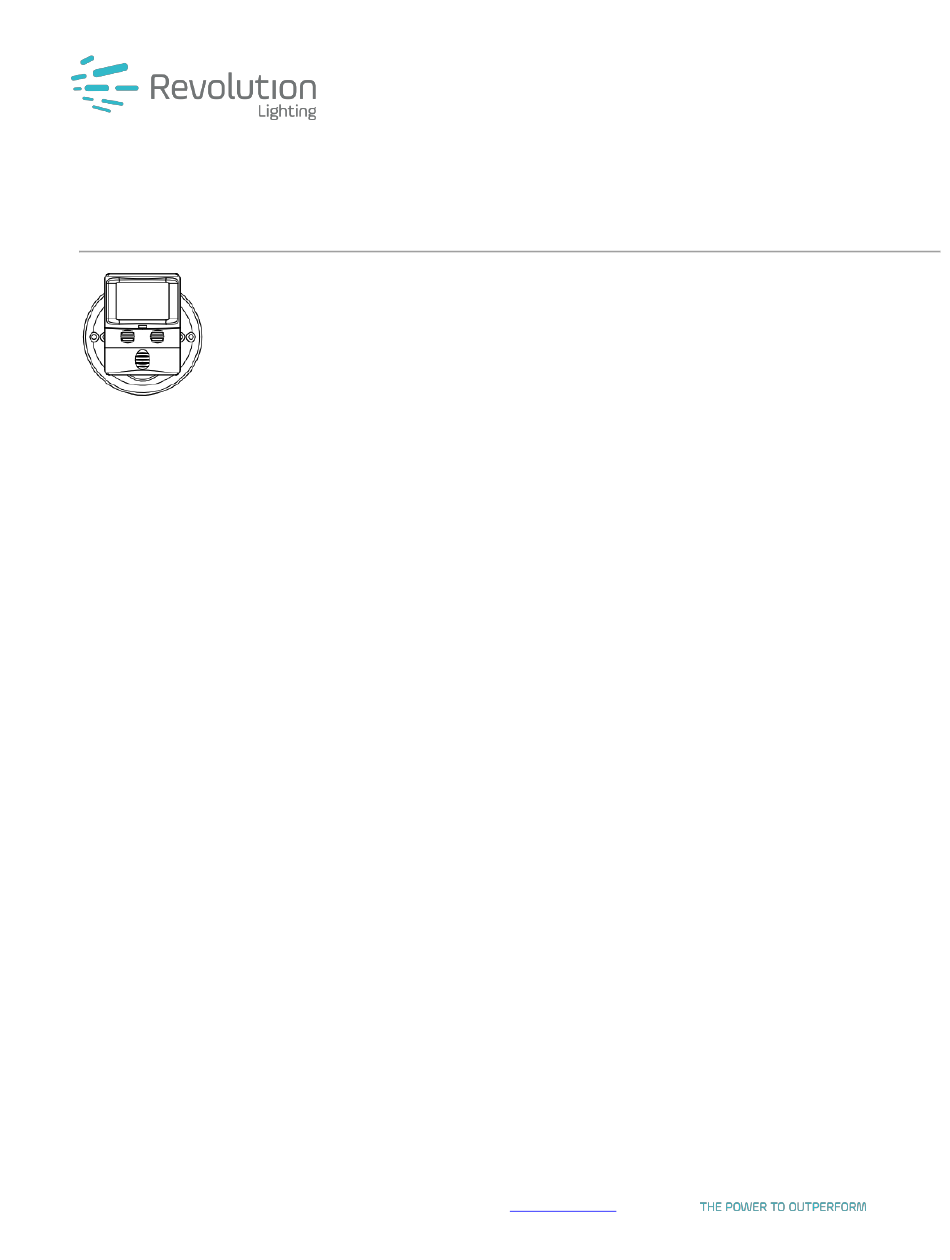

Specifications and Installation: RNET-OCC-HV-DT-WM Dual Technology
Line Voltage Occupancy Sensor
Voltage ................................................................................. 120/277VAC, 50/60Hz
Load Requirements: ..............................................................
Incandescent ........................................................................ 800W-120VAC, 50/60Hz
Fluorescent ........................................................................... 600VA-120VAC, 1385 VA-277VAC, 50/60Hz
Motor .................................................................................... 1/4HP-120VAC, 50/60Hz
Adjustment Time Delay ......................................................... 30 seconds to 30 minutes.
Walk-Through Mode .............................................................. 3 minutes if no activity after 30 seconds.
Test Mode............................................................................. 5 seconds at initial power up or DIP switch reset
PIR Coverage ....................................................................... 1000 ft2
Sensitivity Adjustment Automatic or Low (DIP switch setting)
Ultrasonic Coverage .............................................................. 800-1200 ft2
Sensitivity Adjustment ........................................................ Minimum to Maximum (trimpot)
Frequency .......................................................................... 40 kHz
Operation Temperature ......................................................... 32° to 131°F (0° to 55° C)
DESCRIPTION
This Dual Technology Occupancy Sensor combines advanced passive infrared (PIR) and ultrasonic technologies into one
unit. The combined technologies help to avoid false triggering even in difficult applications. The RNET-OCC-HV-DT-WM turns
lighting on and off based on occupancy and ambient light levels.
The sensor offers numerous operating modes that can be combined to create the ideal custom control. Selectable operating
mode allow the sensor to turn a load on, and hold it on as long as either or both technologies detect occupancy. After no
movement is detected for the selected time delay, the lights switch off. A "walk-through" mode can turn the lights off after only
3 minutes, if no activity is detected after 30 seconds following an occupancy detection.
This sensor contains a light level sensor. If adequate daylight is present, the sensor holds the load OFF until light levels drop,
even if the area is occupied.
th
177 Broad Street, 12
Floor, Stamford, CT 06901 T
Copyright 2017 Revolution Lighting. All rights reserved.
–
–
877 578 2536 E
Support@rvlti.com
INS015_01_20170531
rvlti.com
Page 1 of 7
Advertisement
Table of Contents
Related Manuals for Revolution Lightning RNET-OCC-HV-DT-WM
Summary of Contents for Revolution Lightning RNET-OCC-HV-DT-WM
- Page 1 This Dual Technology Occupancy Sensor combines advanced passive infrared (PIR) and ultrasonic technologies into one unit. The combined technologies help to avoid false triggering even in difficult applications. The RNET-OCC-HV-DT-WM turns lighting on and off based on occupancy and ambient light levels.
- Page 2 COVERAGE PATTERN The MWD-V provides an elliptical coverage pattern (see Figure 1). The coverage shown represents walking motion at a mounting height of 10 feet. For building spaces with lower levels of activity or with obstacles and barriers, coverage size may decrease.
- Page 3 INSTALLATION Make sure that the power has been turned OFF at the circuit breaker. Connect lead wires as WIRING DIAGRAM (see Figure 2): Black lead to Line (Hot), Red lead to Load wire, White lead to Neutral wire. Mount device up to walls or ceilings. Gently position wires in wall/octagon box: Attach the sensor switch to the box, and fix it to the wall/ceiling with two screws or Attach the sensor switch to the mounting yoke with wires through its central hole, and fix the yoke to the...
- Page 4 ADJUSTMENT Ultrasonic & PIR Sensitivity Adjustment Knob Default position: Center Adjustable: 25% (Position 1) to 100% (Position 4) Note: Turn toward the right for greater room space. Turn toward the left to avoid false alert in smaller room and near the door way or heat source. Ambient Light Level Adjustment Trimpot Default position: Daylight (100% at position 4) Adjustable: Clock wise...
- Page 5 DIP SWITCH SETTING The RNET-OCC-HV-DT-WM has 7 DIP switches under the cover. They are used to set the trigger mode delay and walk through mode feature settings. The sensor has 6 trigger options, set with DIP switches1, 2 and 3.
- Page 6 OPERATION The Sensor Switch is programmed for Occupancy Mode only. Automatic Turning On/Off the Load Once the power is on, the load will be turned on according to the occupancy settings. The sensor time delay operates as programmed. When the load turns off due to the lack of motion detection, the load can be turned on again by occupancy detection or switch activation.
- Page 7 WARRANTY INFORMATION If within two (2) years from the date of purchase, this product fails due to a defect in material or workmanship, we will repair or exchange it, at its sole option free of charge. This warranty does not apply to: Damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use;...
