Specifications and Installation: RNET-OCC-HV-P-WS-J Occupancy/Vacancy
(2-in-1) Sensor Switch
SPECIFICATIONS
Voltage ................................................................................. 120/277VAC, 60Hz
Incandescent ........................................................................ 800W
Fluorescent/Ballast ................................................................ 800VA@120VAC /1600VA@277VAC
Motor .................................................................................... 1/4Hp
Time Delay ........................................................................... 15Sec to 30Mins
Light Level ............................................................................ 30 Lux-Daylight
Operation Temperature ......................................................... 32 F-131 F
DESCRIPTION
Passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the
background space.
The sensor switch can turn a load on and hold it as long as the sensor detects occupancy. After no motion is detected for the
set time delay, the load turns off automatically. The sensor switch has one relay (equal to single pole switch). It also includes
an Ambient Light Level Sensor, Auto Set and Walk-Through features.
Coverage Area

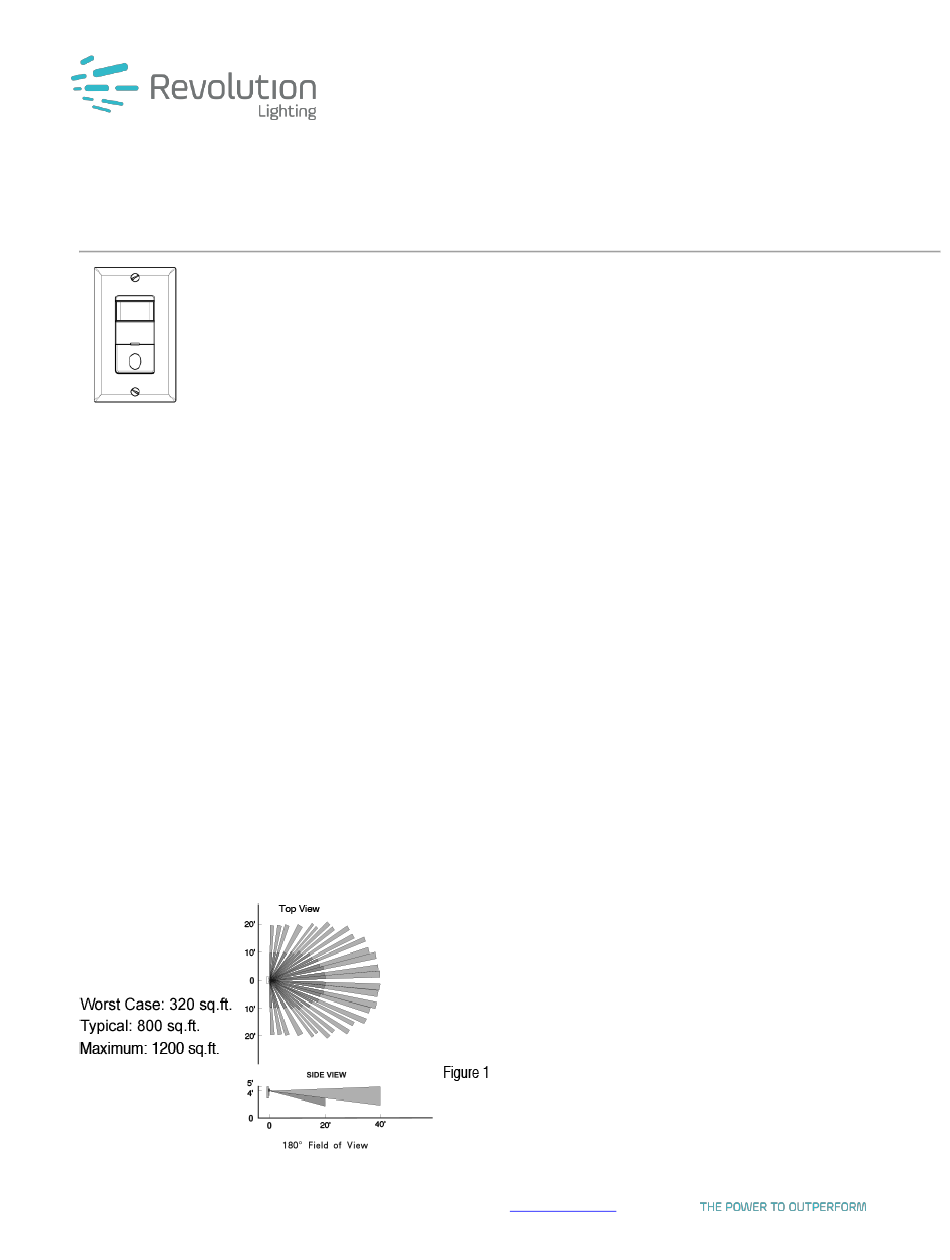

The coverage range of the sensor switch is specified and illustrated in Figure 1. Large objects and some transparent barriers
like glass windows will obstruct the sensors' view and prevent detection, causing the light to turn off even though someone is
still in the detection area.
th
177 Broad Street, 12
Floor, Stamford, CT 06901 T
Copyright 2017 Revolution Lighting. All rights reserved.
–
–
877 578 2536 E
Support@rvlti.com
INS010_01_20170525
rvlti.com
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Revolution Lightning RNET-OCC-HV-P-WS-J
Summary of Contents for Revolution Lightning RNET-OCC-HV-P-WS-J
- Page 1 Specifications and Installation: RNET-OCC-HV-P-WS-J Occupancy/Vacancy (2-in-1) Sensor Switch SPECIFICATIONS Voltage ................. 120/277VAC, 60Hz Incandescent ................ 800W Fluorescent/Ballast ..............800VA@120VAC /1600VA@277VAC Motor ..................1/4Hp Time Delay ................15Sec to 30Mins Light Level ................30 Lux-Daylight Operation Temperature ............32 F-131 F...
- Page 2 WARNING: Turn off the circuit breaker before installation Ground wire is required Indoor use only Do not exceed electrical ratings INSTALLATION Connect lead wires as WIRING DIAGRAM (see Figure 2): Black lead to Line (Hot), Red lead to Load wire, Green lead to Ground.
- Page 3 ADJUSTMENT Band switch prescription Time Delay knob Default position: 15 Seconds (Test mode) Adjustable: from 15 Seconds to 30 Minutes (clockwise) Sensor Sensitivity Range Knob Default position: Center at 65% Adjustable: 30% (Position 1) to 100% (Position 4) Note: Turn toward right for greater room space. Turn toward left to avoid false alert in smaller room and near the door way or heat source.
- Page 4 OPERATION The Sensor Switch is programmed independently for any Mode (AUTO, OCC, or VAC). Refer to the Band Switch position under the control panel cover. Some might call the Vacancy mode as “Manual On Occupancy Mode”. Manual On/Off Button By Pushing the Control Panel Cover, the Load can be turned On/Off under any Mode (AUTO, OCC, or VAC). (Illustrated as Figure 5) There is a 5 seconds re-trigger delay between ON and OFF.
- Page 5 TROUBLESHOOTING For proper operation, the Sensor Switch has to consume power from hot and Ground. Therefore, a Secured Ground Wiring is required. Initial run The Sensor Switch needs initial run within three minutes. During the initial run, the load might be turned On and Off several times.
- Page 6 WARRANTY INFORMATION If within five (5) years from the date of purchase, this product fails due to a defect in material or workmanship, we will repair or exchange it, at its sole option free of charge. This warranty does not apply to: Damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use;...
