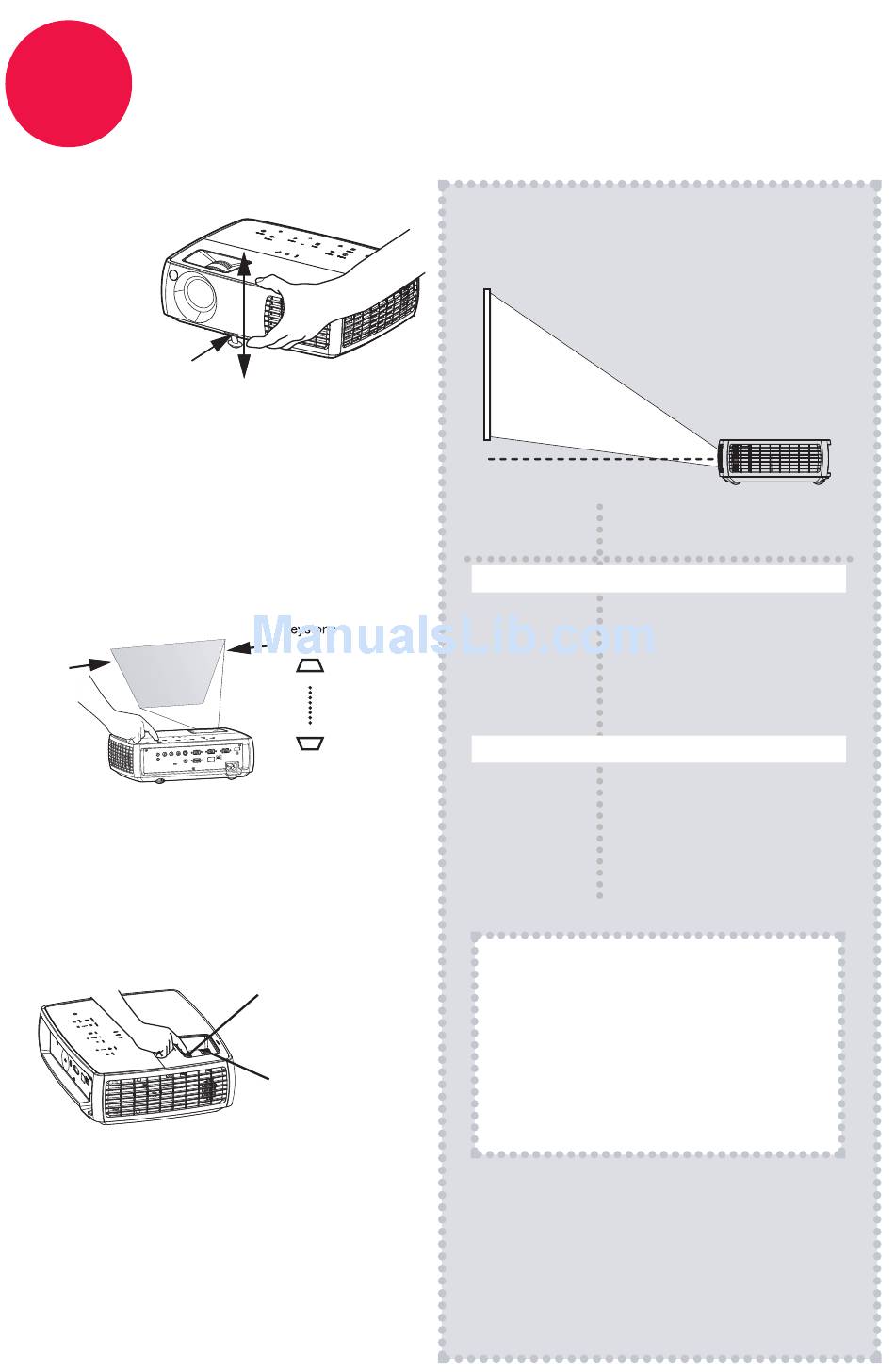

Adjust the picture

1
Height
1
Hold down the release button
under the front of the projector.
2
Lift the front of the projector to
the desired height.
3
Release the button.
2
Keystone
Press the keystone buttons to
make the picture square.
3

Zoom and focus

Adjust zoom fi rst, then focus the
center of the image.
1
2
Zoom
(rear)
Focus
(front)

Projector Location

As distance increases, the
image gets larger and moves
upwards.
Lens center line
Diagonal Distance to Screen
Screen Size Minimum
IN3102 & IN3104
60"/1.5m 7'10"/2.4m
80"/2.0m 10'5"/3.2m
90"/2.3m 11'8"/3.6m
150"/3.8m 19'6"/5.9m
IN3106
60"/1.5m 6'6"/2.0m
80"/2.0m 8'8"/2.7m
90"/2.3m 9'10"/3.0m
150"/3.8m 16'4"/5.0m
Interactive Screen Size and Distance
Calculator
www.infocus.com/calculator
Buy a Screen and Other Custom
Accessories
www.infocus.com/store

Ceiling mount?

To fl ip the image, turn on the Ceiling
Mount setting in the Setup menu.
Maximum
8'7"/2.6m
11'6"/3.5m
12'11"/3.9m
21'6"/6.6m
7'4"/2.2m
9'8"/2.9m
10'11"/3.3m
18'1"/5.5m
