InFocus IN32 Setup Instructions

RS-232 Setup Instructions
Communication Configuration
Baud Rate 19,200bps
Data Bits 8
Parity None
Stop Bits 1
Flow Control None
Emulation VT100
Required Cable

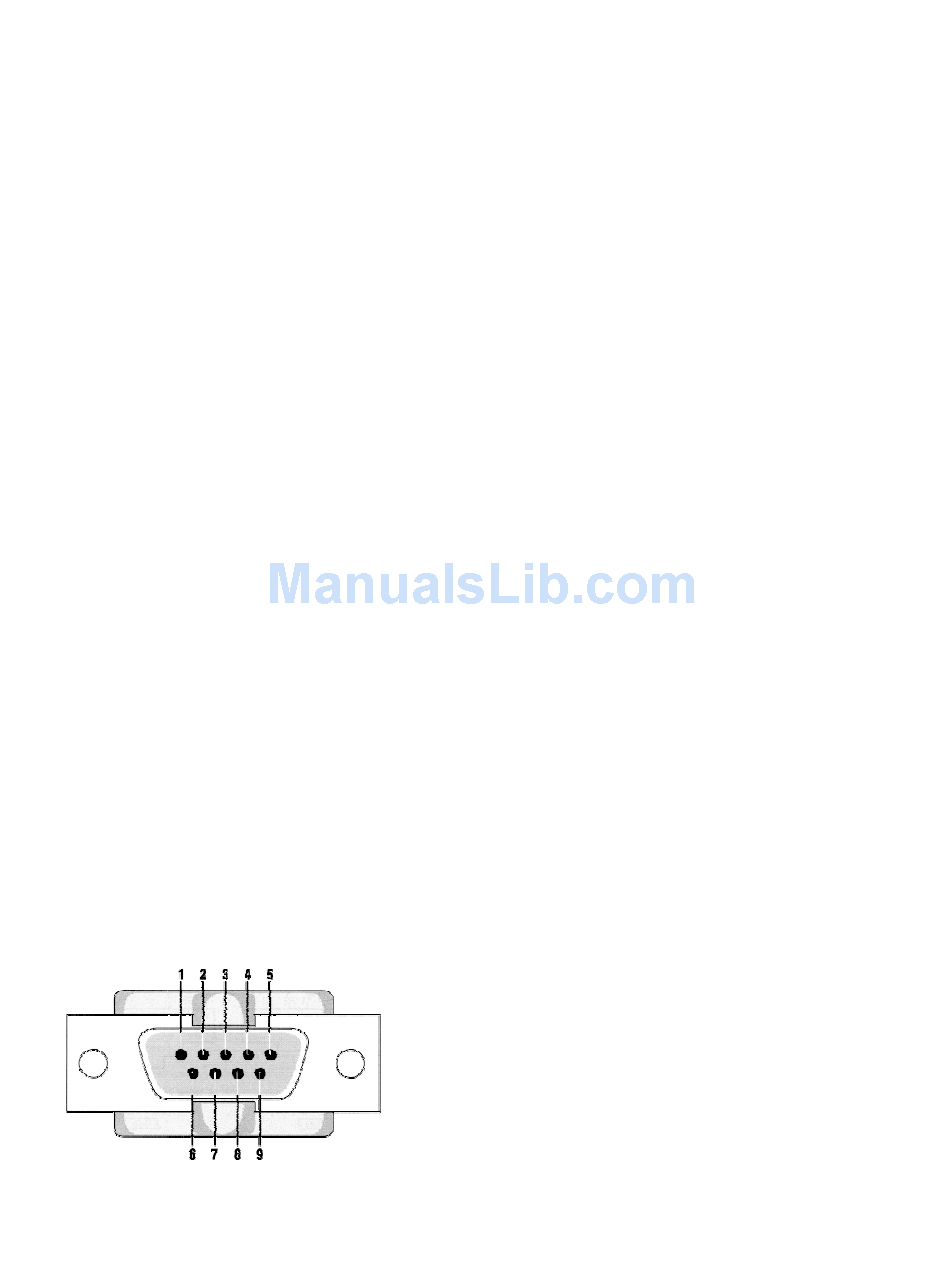

Null Modem Cable – female to female 9-pin serial
Cable Pinouts
InFocus projectors use the basic form of RS-232 functionality. Following are the required pinouts. Note
that the cables commonly available at local computer or electronic stores meet these requirements.
Function
No Connection
Received Data (RxD)
Transmitted Data (TxD)
No Connection
Signal Ground (GND)
No Connection
No Connection
No Connection
No Connection
Three pins need to be terminated: ground, send and receive (5, 3, and 2 respectively).
Pin Pin Function
1 1 No Connection
2 3 Received Data (RxD)
3 2 Transmitted Data (TxD)
4 4 No Connection
5 5 Signal Ground (GND)
6 6 No Connection
7 7 No Connection
8 8 No Connection
9 9 No Connection
