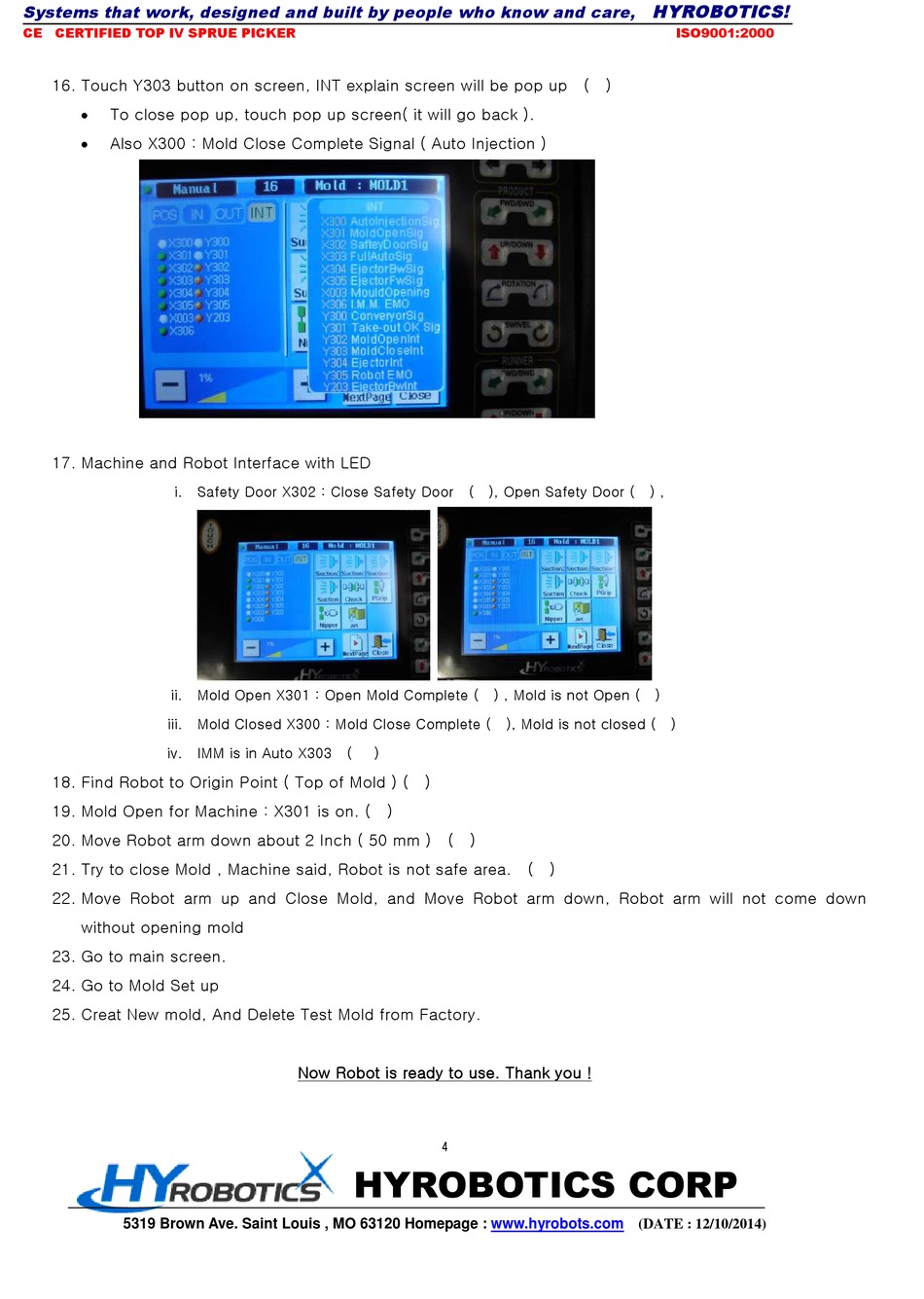

16. Touch Y303 button on screen, INT explain screen will be pop up ( )

To close pop up, touch pop up screen( it will go back ).

Also X300 : Mold Close Complete Signal ( Auto Injection )
17. Machine and Robot Interface with LED
i. Safety Door X302 : Close Safety Door ( ), Open Safety Door ( ) ,
ii. Mold Open X301 : Open Mold Complete ( ) , Mold is not Open ( )
iii. Mold Closed X300 : Mold Close Complete ( ), Mold is not closed ( )
iv. IMM is in Auto X303 (
18. Find Robot to Origin Point ( Top of Mold ) ( )
19. Mold Open for Machine : X301 is on. ( )
20. Move Robot arm down about 2 Inch ( 50 mm ) ( )
21. Try to close Mold , Machine said, Robot is not safe area. ( )
22. Move Robot arm up and Close Mold, and Move Robot arm down, Robot arm will not come down
without opening mold
23. Go to main screen.
24. Go to Mold Set up
25. Creat New mold, And Delete Test Mold from Factory.
5319 Brown Ave. Saint Louis , MO 63120 Homepage :
)
Now Robot is ready to use. Thank you !
