Enjoy Our Smart Life

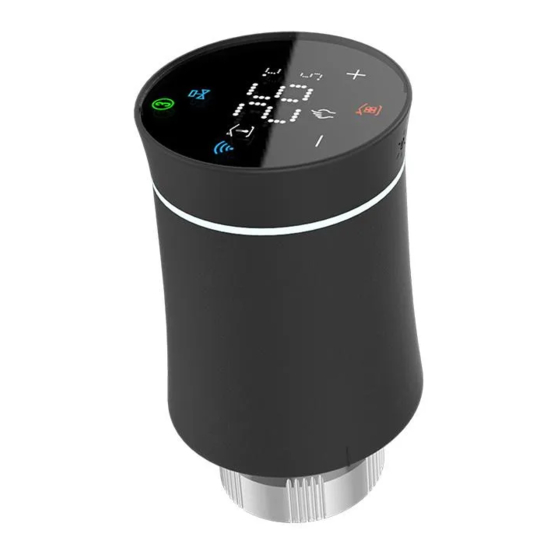

BRT-100 Radiator Thermostat
(TRV)
User Guide
Zigbee Type
Welcome
Thank you for your purchase. MOES always
made high-quality products with our high-end
technology, high-quality craftsmanship, safe
and reliable materials .The new radiator
thermostat will bring you a more comfortable
smart life .
Please read this installation/ programming
manual for installing and operating. Please
also make sure someone qualified to install
the radiator .
Comply with all local regulations.
FEATURES
1. LED display, no window, wider perspective
2. Colorful display
3. Graceful arc waist shape
4. Rubber stretch paint, feel like baby skin
5. Night Halo colors your home
6. Low power consumption,battery can last 1
year for normal use and standby for 2 years.
7. Low battery tip
8. Diagram of temperature curve added in APP
9. Vary colors are available like white, Black,
gray etc.
In the box you will find
Raditor Thermostat
1pc
Special note: The Zigbee
version of the temperature
User Guide
1pc
control valve should be used
RA Adapter
1pc
with a Zigbee gateway
compatible with "Tuya iot'".
RAV Adapter
1pc
The package does not
RAVL Adapter
1pc
include the battery and
gateway.
Comap Adapter
1pc
T+A Herz Adapter
1set
Herz Adapter
1pc
APPLICATION

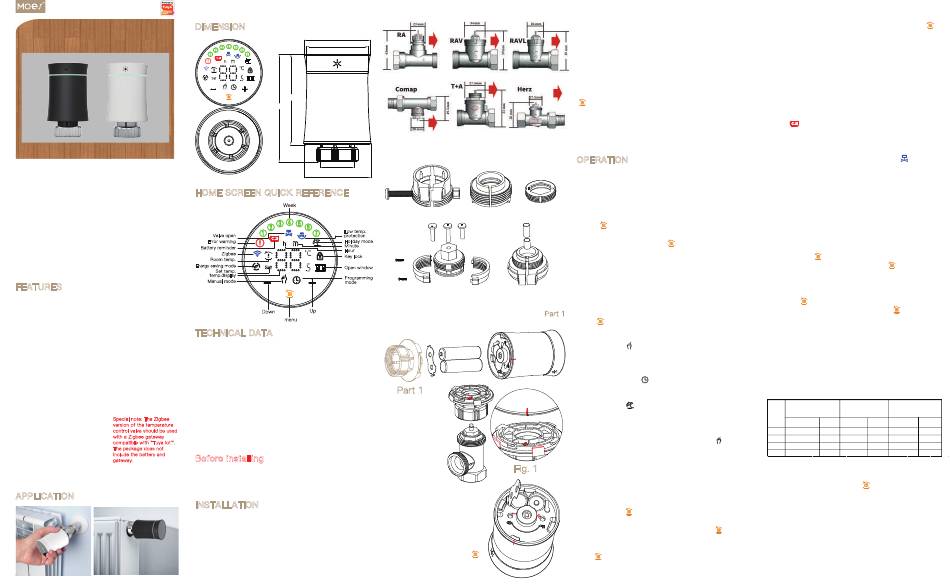

DIMENSION
52.0
Unit: mm
48.5
71.5
85.0
M30*1.5
53.0
HOME SCREEN QUICK REFERENCE
Week
Low temp.
Valve open
protection
Error warning
Holiday mode
Minute
Battery reminder
Hour
Zigbee
Key lock
Room temp.
Energy saving mode
Open window
Set temp.
temp.display
Programming
Manual mode
mode
Up
Down
menu
TECHNICAL DATA
Power Supply: 3 V,2xAA Batteries,
Packaging not have battery.
Maximum stroke: 4.5mm
Accuracy: ± 0.5°C
Set Temp. Range: 5~45 °C
Display temp. Range: 0~70°C
Ambient Temp.: 0 ~ 45 °C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.: -5~ 45 °C
Timing Error: < 1%
Protection Class: IP 20
Buttons: Capacitive Touch Buttons
Before installing
To avoid damages to the product during installation,
please read the manual carefully before installing
TRV.
INSTALLATION
Step 1
: Select the adapter.TRV is usually
connected with M30*1.5mm valve. If you have
different valves, please determine your valve type
according to the picture below, and choose the
correct adapter from the package. If you do not find
the valve that matches your use in the picture below,
please buy it carefully.
Step 2
: Install the adapter.Install the adapter on
your valve as the picture below. If you don't need an
adapter, please ignore this step.
RA
RAV
Comap
RAVL
T+A Herz
Step 3:
Install the thermostat mounting plate.
Remove the mounting plate of the thermostat
(Part 1
in the picture below) counterclockwise.
Part 1
Follow the
instructions in the
figure below to
install the mounting
plate on the valve.
Pay attention to
Fig. 1
the
red label
in
the picture.
Step 4:
Install battery
Follow the picture below to
install the battery in the
correct direction. After the
battery is installed correctly,
the thermostat will be turned
on. At this time, click the
(only once),the thermostat
will display and flash "F1",
when the "F1" stops flashing, the thermostat motor
It will all shrink to facilitate the connection of the
thermostat and the mounting plate.
Step 5:
Connect the thermostat and the mounting
board When "F1" stops flashing, find the "mark
point" of the thermostat, shown Fig. 1.Turn
clockwise to complete the connection between the
thermostat and the mounting plate. After clicking the
(only once), the thermostat will display "F2".
When "F2 "disappears, while the screen remains on,
turn the thermostat clockwise to adjust the screen to
your liking direction.
Installation finished.
OPERATION
1. Power: After installing the battery, it will
automatically turn on. It can't be turned off till the
battery is removed.
When the TRV is turned on, it will enter the
self-check program, and all icons will be displayed
firstly.
Press
, the screen flashes "F1", indicating that
the temperature control valve is shrinking; when
"F1" stops flashing, press
again, The screen
displays "F2",Indicates that the temperature control
valve is measuring.; when the screen displays the
room temperature, it indicates that the temperature
control valve has completed the stroke measure-
ment, and you can start using the temperature
control valve normally.
2. Mode selection
Press
to switch between manual, programming,
vacation modes.
Manual mode
- In this mode, the device executes
manual temperature setting. When the set temperature
is lower than the"minimum temperature", the valve is
closed (forced closed);
Programming mode
-In this mode, the device
executes a preset week programming temperature time
and temperature;
Holiday mode
- In this mode, for example, the
vacation mode is set for 10 days and the temperature
is set to 15 degrees Celsius. After 10 days, the device
will automatically switch to programming mode;
Temporary manual mode
- In this mode,
icon will
flash.At this time, the device executes the manually set
temperature and returns to the weekly programming
mode in the next time period.
3. Set the temperature
Press "+"/"-" key to adjust the temperature.
4. Set the clock
Press and hold
for 3 seconds, the screen will display
"h" and numbers, indicating that the hour is being set,
set the hour by press "+" / "-" keys; press
again,
the screen will display "m", indicating that the minute
is being set, press "+" /"-" keys to set the minutes;
press
again, the screen will display "number",
indicating that the day of the week is being set, and
the day of the week can be set by "+" /"-"; press
again, the screen will flash "number, h, m", indicating
that the number of days in the vacation mode is set,
which can be set by the "+" and "-" keys;
5. Lock your Radiator
Press the +" and"-" keys together for 3 seconds to
lock or unlock the keys.
6. Low voltage reminder
When the voltage is lower than 1.8V, the screen will
display
.
7. Boost heating
Press and hold "+" for 3 seconds, the device will
enter the boost heating mode, and the
will
flash.The countdown will be displayed in the APP.
8. Adjusting/Setting the Programmable Schedules
Method one;
Manually set a week of programming settings, specific
operations are as follows:
Method Two;
Use APP for one week of programming settings, please
refer to the second page "Programming your Radiator"
Manual editing:
Press and hold
for 3 seconds. When you see the
flashing numbers on the screen, press
4 times to
skip the clock setting. When the screen displays
"①②③④⑤" (means Monday to Friday), flashing
numbers and "h", you can set the hour with "+" and
"-"; press
again, flashing numbers and "m", you
can use " +" "-" Set the minutes; press
again, the
screen displays "Set", and the temperature can be set
by "+" "-". This completes the setting of the
programmed temperature for one week in the morning
from Monday to Friday.
By analogy, refer to the one-week programming
temperature default table to complete one-week
programming settings.
9. Programming setting
MON.-FRI.
SAT.
SUN.
Time
(①②③④⑤ shows on scteen)
(⑥ shows on scteen)
(⑦ shows on scteen)
display
TIME
TEMP.
TIME
TEMP.
TIME
TEMP.
Period 1
6:00~11:30
20
6:00~12:00
24
6:00~12:30
19
Period 2
11:30~13:30
21
12:00~14:30
23
12:30~14:30
20
Period 3
13:30~17:30
22
14:30~17:30
22
14:30~18:30
21
Period 4
17:30~6:00
23
17:30~6:00
21
18:30~6:00
20
10. Setting the Functions and Options
Press and hold the "-" and
3 seconds together
, entering into the advanced option settings. The
screen displays "A1" (function), after 2 seconds,
the number (settings and options) will display, and
the options can be set by the "+"/"-" key.
