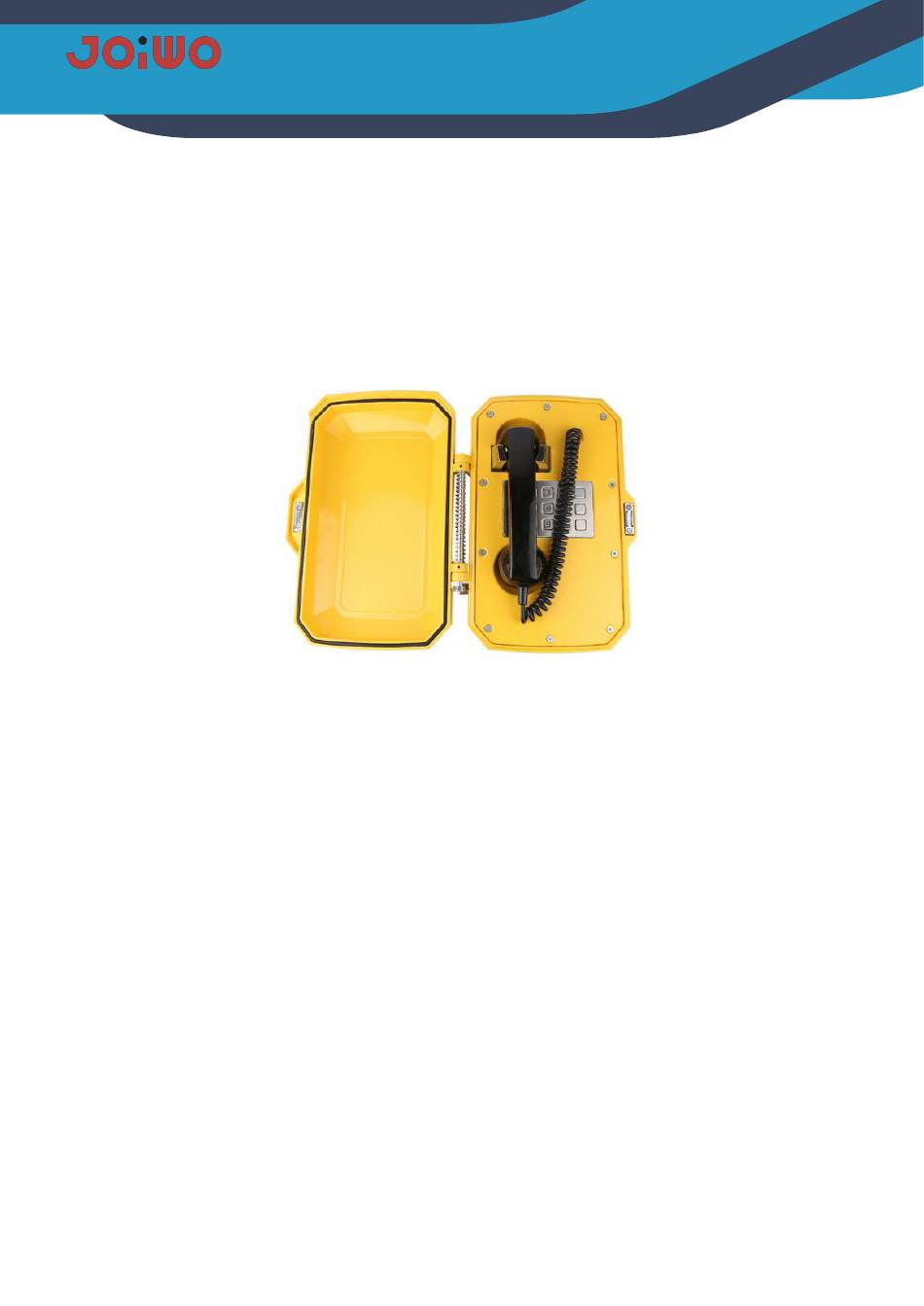

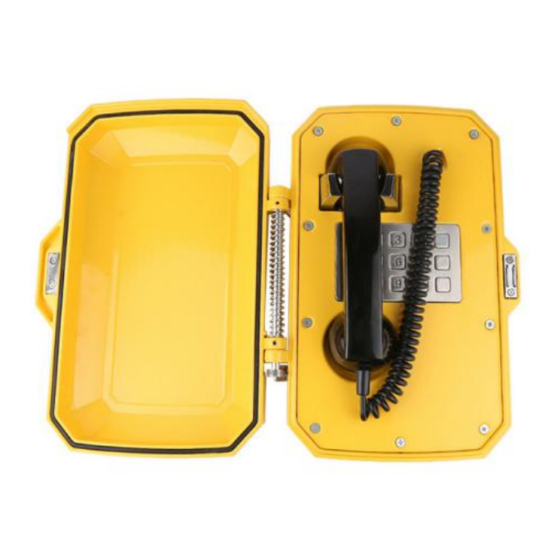

User Manual Of IP Waterproof Telephone JWAT909-910

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JWAT909 and is the answer not in the manual?

Questions and answers

Related Manuals for JOIWO JWAT909

Summary of Contents for JOIWO JWAT909

  • Page 1 User Manual Of IP Waterproof Telephone JWAT909-910...

  • Page 2: Table Of Contents

    Table of Contents 1. Overview......................................1 2. Product Structure Characteristics..............................1 3. Main technical parameters................................2 4.How to Use....................................... 2 5.Product Dimensions and Installation..........................3 6. Web Settings....................................6 7. Transportation and storage requirements..........................29 8. Unpacking and inspection................................29 9. Attention......................................29 10. Safety warnings..................................29 11. After sales....................................29 12.Basic Troubleshooting:................................30...

  • Page 3: Overview

    1. Overview JWAT909 / 910 IP waterproof telephone product is a high-tech product that used for subway, highway, power plant, petrol station, terminal, steel company which have special requirements for moisture, fire, dust, and frost. It is a fully digital network type.The core part of the telephone adopts the mature Voip solution with stable and reliable performance.

  • Page 4: Main Technical Parameters

    4.1 How to make a call 1. JWAT909 / 910: After picking up the handset, dial the number on the keypad. After the other party is connected, the two parties can talk normally, and then hang up the handset after the call. During the call, the volume of the handset can be adjusted according to the environment.

  • Page 5: Product Dimensions And Installation

    4.2 How to answer a call: 1. JWAT909 : When receive a call, the loudspeaker will turned on, the speaker rings, and it automatically connects to the broadcast mode after three beeps, which can be used to call people. When someone picks up the handset to connect the phone, the loudspeaker is turned off and the handset mode is entered.
  • Page 6 Pay attention to the wiring When the copper wire is not exposed, the terminal screws must be tightened, and do not lock to the insulated wire. sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 7 Pay attention to the level when punching, otherwise the cover will open and close automatically after installation. Easy to pinch when using. 5.5 The connection method of the RJ45 network cable: (JWAT909/JWAT910) The cable connections that we have described in the previous section can be made in several possible ways and thus the application for which the RJ45 cable is to be used is varied.

  • Page 8: Web Settings

    When the device enters a password prompt, entering different information will enter a different mode: User mode:：  Username: guest  Password：guest sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 9 Network settings DHCP, and bridge mode status. The default is static IP: 192.168.1.128 Telephone Current SIP line 1-2 Register the corresponding phone number and status. number b) Wizard sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 10 Select the static IP mode, click [Next] to simply configure the network address and SIP parameters (default is 1 line) and browse the configuration items, click [Back] to return to the previous page. sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 11 Please enter your primary DNS server address. Secondary DNS Please enter your Secondary DNS server address. Quick SIP Setting,Quickly set the account information of the SIP line (default 1 line). sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 12 Configure the SIP registered account. user Authentication Configure the password for the SIP registration account. password SIP User Configure the number registered to the SIP server. Enable Configuration allows/prohibits registration; Registration sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 13 SIP account. The server name, such as PPPoE service provider, has no special requirements. This PPPoE server name is generally the default value. sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 14 This call records the other party's account number and the call protocol and usage line. Type The type of this call record. d) language settings Use this page to set the language you want to display. sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 15 TIME&DATE sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 16 To manually set the time, you need to disable the SNTP service first, and the year, month, day, hour, minute, and minute in the above figure need to be filled out and submitted in order to make the manual setting successful. sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 17 6.5 Network Settings sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 18 DHCP server and you do not need to enter these fields manually. PPPoE When you select this mode, you must enter the ADSL online account and password. sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 19 The service name, such as PPPoE service provider, has no special requirements. This PPPoE Server name is generally the default value. User Please enter your ADSL account number. sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 20 After saving, save the settings. After restarting the device, be sure to log in as http://xxx.xxx.xxx.xxx:xxxx when logging in again. Telnet Port Configure the telnet port, the default is 23 ports. sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 21 1024, because the port in 1024 is the system reserved port. 3) If the HTTP port number is set to 0, the HTTP service is disabled. 6.6 VOIP Settings Configure the SIP server here sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 22 No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 23 Configure the backup proxy server address. If the primary proxy server address is not Server Address available, the device will enable the backup proxy server address. Backup Proxy Configuring a backup proxy server port. Server Port sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 24 Edition to communicate normally. Use RFC3261 by default. DTMF_SIP_INFO There are two options: send 10/11 and send */# Mode Local Port Configure separate ports for each line sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 25 If the type is UDP, the device sends a UDP message to the Time server to maintain server detection every configured server detection time. DND Return Configure the SIP response code of the DND. Code sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 26 Select the DSP first priority speech coding algorithm, which has: G.711A/u, G.722， First Code G.723, G.729,G.726-32 Select the DSP second priority speech coding algorithm, which has: G.711A/u, G.722， Second Code G.723, G.729,G.726-32 sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 27 Set the volume level of the signal tone; Volume Codec Gain Settings Handsfree Hardware MIC Set the gain of the hands-free microphone Gain Handsfree Hardware Set the gain of the hands-free speaker Speakerphone Gain sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 28 Configuring auto disconnect when no answer is enabled Field Name Explanation No answer hang up Configure to hang up automatically when there is no answer within the set time time sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 29 FEATURE as you can see in the picture below. Select Disabled of the Enable Auto Answer option. Input the hotline number and then click Apply. The hotline number setting is finished. sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 30 It means that the configuration is cleared. 3. Unplug the power line and then re-plug the line, the board is reset successfully. sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...

  • Page 31: Transportation And Storage Requirements

    11. After sales The Warranty of Joiwo’s products is 2 years. Within 2 years since the products are shipped, if there is any quality issue or technical requirements, we will take care of all the trouble shooting and send the spare parts or complete product as required for replacements at our charge.

  • Page 32: Basic Troubleshooting

    2.Check if the cable between the phone and the speaker and the speaker is well connected 3.Replace the speaker 3.Check whether the speaker is damaged sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
