JOIWO JWAT306 User Manual

Weatherproof telephone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual Of Weatherproof Telephone JWAT306-307

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JWAT306 and is the answer not in the manual?

Questions and answers

Related Manuals for JOIWO JWAT306

Summary of Contents for JOIWO JWAT306

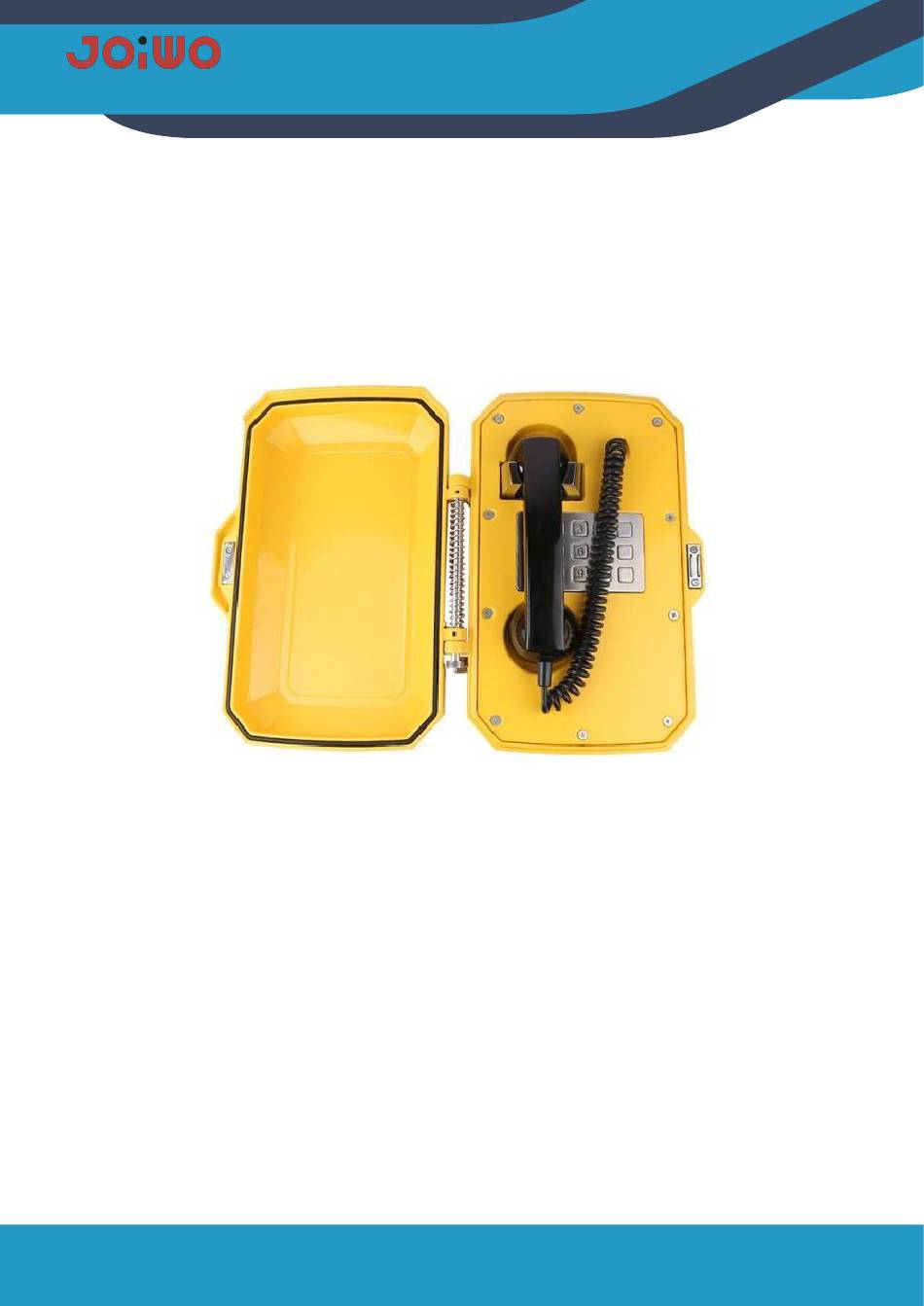

  • Page 1 User Manual Of Weatherproof Telephone JWAT306-307...

  • Page 2: Table Of Contents

    Table of Contents 1. Overview....................................1 2. Product Structure Characteristics............................1 3. Technical Parameters................................2 4. Product Dimensions and Installation..........................2 5. How to Use..................................... 4 6. Transportation and storage requirements.........................5 7. Unpacking and inspection..............................5 8. Attention....................................5 9. Safety warnings..................................5 10.

  • Page 3: Overview

    1.1 Product Features 1.1.1 The JWAT306-307 waterproof telephone case is made of aluminum alloy die-casting, which has good impact strength and protection performance. The surface high temperature powder is not electromagnetically sprayed to prevent static electricity. Full keyboard input, you can not only directly enter the number of the other party to make a call, you can also set a shortcut key to speed dial.

  • Page 4: Technical Parameters

    3. Technical Parameters 3.1 Power supply: Telephone line powered. 3.2 Network communication protocol: Analogue. 3.3 Frequency response: 300 ～ 3400 Hz 3.4 Protection level: IP66 3.5 Specification: 13.3'' *8.7'' *5.6'' 3.6 Installation: Wall-mounted 3.7 3.7 Net weight: 17 LBS 4. Product Dimensions and Installation 4.1 product dimensions...
  • Page 5 4.2 Installation: 1. Lock the mounting bracket with the delivered M8 screws to the back of the cabinet. The screws must be tightened, and the direction of the bracket cannot be reversed, as shown in Figure above. 2. Measure the holes of the bracket at the installation position, and then fix the phone with the expansion screws to the place to be installed.

  • Page 6: How To Use

    (the number of ringing times can be set). Automatically hang up after busy tone, not occupying the channel and not affecting the next incoming call JWAT306: The buzzer rings when there is an incoming call, and it stops ringing after going off-hook. Use the...

  • Page 7: Transportation And Storage Requirements

    10. After sales The Warranty of Joiwo’s products is 2 years. Within 2 years since the products are shipped, if there is any quality issue or technical requirements, we will take care of all the trouble shooting and send the spare parts or complete product as required for replacements at our charge.

  • Page 8: 11.Basic Troubleshooting

    Failure phenomenon Troubleshooting method Approach Check if the telephone line is No effect on keyboard, connected to the motherboard. Use a Reconnect the unconnected phone line no sound on handset multimeter to measure whether the voltage at both ends is 48V. Some keys on the Check if the cable between keyboard and Plug the keyboard cable back into the...

This manual is also suitable for:

Jwat307
