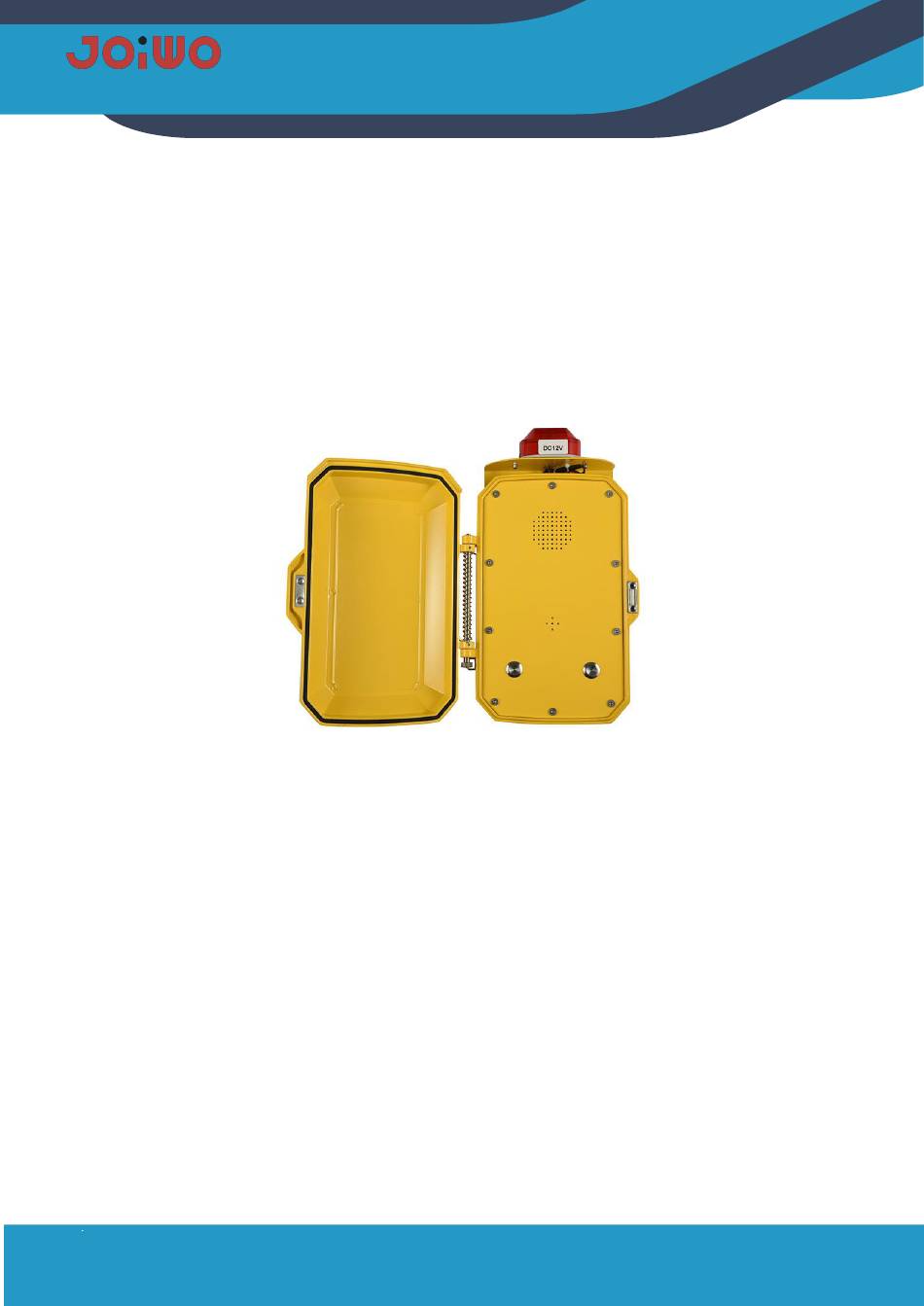

  • Page 1 Ningbo Joiwo Explosionproof Science & Technology Co., Ltd. User Manual Of JWAT410 Phone +86-574-58223619 sales@joiwo.com https://www.joiwo.com No. 8 Middle Road Guoxiang Bridge Lanjiang Street Yuyao Zhejiang China...
  • Page 2 Ningbo Joiwo Explosionproof Science & Technology Co., Ltd. Table of Contents 1. Overview......................................1 2. Product Structure Characteristics..............................1 3. Main technical parameters................................2 4. How to Use ?....................................2 5.Product Dimensions and Installation............................2 6. Transportation and storage requirements..........................7. Unpacking and inspection................................
  • Page 3 1.1 Product Features The JWAT410 series waterproof phone case is made of aluminum alloy die-casting, which has good impact resistance and protection performance. The high-temperature powder on the surface is not electrostatically sprayed to prevent static electricity.
  • Page 4 Ningbo Joiwo Explosionproof Science & Technology Co., Ltd. 3. Main technical parameters 3.1 Standby, working current: 50mA, ≤2A 3.2 Power supply voltage: AC100-240V/50-60Hz 3.3 Feeding voltage: DC48V 3.4 Frequency response: 300~3400 Hz 3.5 Loop impedance: 680Ω 3.7 Signal: DTMF 3.8 Distortion degree: ≤2% 3.8 Protection level: IP66...
  • Page 5 Ningbo Joiwo Explosionproof Science & Technology Co., Ltd. 5.2 Installation and Wiring: 5.2.1. Signal line connection: The RJ11 crystal plug has been suppressed when the telephone line leaves the factory. You can use the adapter to connect in the junction box, or cut off the crystal plug and connect it directly in the junction box with the system telephone line through the terminal.
  • Page 6 10. After sales The Warranty of Joiwo products is 2 years. Within 2 years since the products are shipped, if there is any quality issue or technical requirements, we will take care of all the trouble shooting and send the spare parts or complete product as required for replacements at our charge.
