User Manual Of IP Waterproof Telephone JWAT921

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JWAT921 and is the answer not in the manual?

Questions and answers

Related Manuals for JOIWO JWAT921

Summary of Contents for JOIWO JWAT921

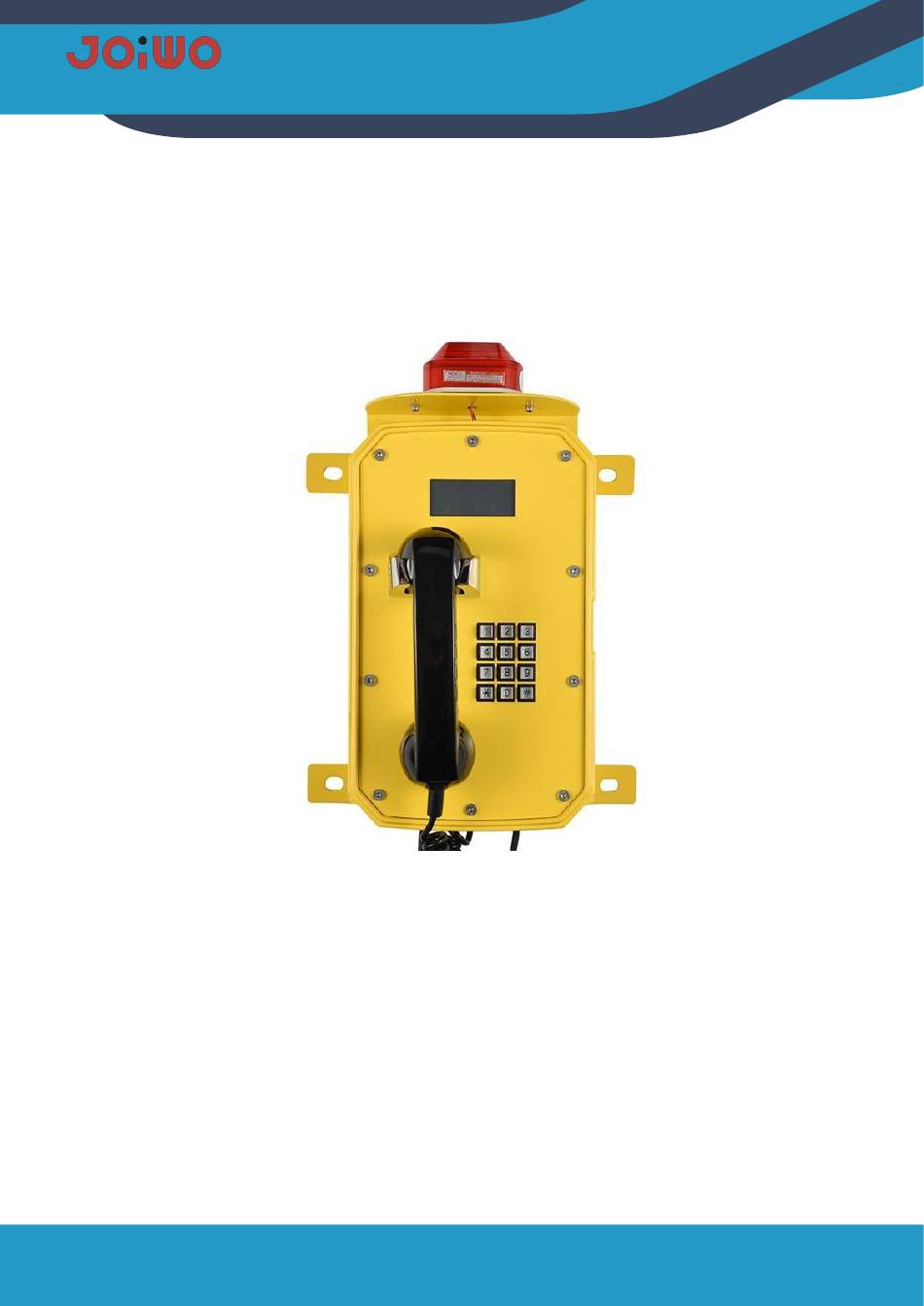

  • Page 1 User Manual Of IP Waterproof Telephone JWAT921...

  • Page 2: Table Of Contents

    Table of Contents Overview....................................1 Product Structure Characteristics............................1 3.Main technical parameters..............................2 4. How to use................................2 5.Product Dimensions and Installation........................2 6.Web Settings................................... 4 7.Transportation and storage requirements......................28 8. Unpacking and inspection..............................28 9. Attention....................................28 10. Safety warnings.................................28 11. After sales...................................28 12.

  • Page 3: Overview

    1.1 Product Features 1.1.1 JWAT921 waterproof phone case is made of aluminum alloy die-casting, which has good impact resistance and protection performance. The high-temperature powder on the surface is not electrostatically sprayed to prevent static electricity. The circuit board adopts the concept of integrated design, and integrates the basic call circuit and noise removal circuit in a machine.

  • Page 4: Main Technical Parameters

    3. Main technical parameters 3.1 Power supply voltage AC110C-240 or POE power supply 3.2 Network communication protocol: SIP 2.0 (RFC-3261) 3.3 WAN: 10/100BASE-TX s Auto-MDIX, RJ-45 3.4 Support protocol: RTP 3.5 G.729, G.723, G.711, G.722, G.726 3.6 Frequency response: 300～3400 Hz 3.8 Distortion degree: ≤2% 3.9 Protection level: IP66 3.10 Size specifications: 15.8’’...
  • Page 5 5.2 Telephone wiring 1. Signal line connection: The RJ45 crystal plug has been suppressed when the telephone line leaves the factory. You can use the adapter to connect in the junction box, or cut off the crystal plug and connect it directly in the junction box with the system phone line through the terminal.

  • Page 6: Web Settings

    5.3 Installation: 1. Lock the mounting bracket to the back of the case with the delivered M8 screws. The screws must be locked and the direction of the bracket cannot be reversed. 2. Measure the hole position of the bracket at the installation position, and then use the expansion screw to fix the phone to the position to be installed.
  • Page 7  Username: guest  Password：guest Manager mode:  Username：admin  Password：admin 6.4 WEB page function commentary 6.41 Basic Settings a) STATUS STATUS Field Name Explanation Current WAN configuration of the device: including WAN IP acquisition method (static IP, DHCP, PPPoE), MAC address, device IP, IP gateway ; LAN configuration: IP address, Network settings DHCP, and bridge mode status.
  • Page 8 Wizard Field name Explanation Network connection mode of the device.Please select the appropriate network mode according to the actual network environment. The device provides three network connection methods: If your ISP has a fixed IP address, you can choose this option.After selection, you must fill in the static table: IP Address / Netmask /Gateway / Primary DNS and other related Static IP mode information.
  • Page 9 Field name Explanation Static Please enter the IP address you are assigned to. IP address Subnet mask Please enter the subnet mask you have assigned. Gateway Please enter the default gateway address you have assigned. Set the DNS domain suffix. When the user enters the domain name address and cannot DNS domain be resolved by DNS, the device adds the domain to the domain name address and then name...
  • Page 10 Configure the display name. When the caller can be called, the called party (named Display Name without calling the caller) can display this configuration parameter and allow English letters to be entered. Configure the SIP registration server address to support the address in the form of a Server Address domain name.
  • Page 11 Field name Explanation Displays the details of the manual configuration. Select DHCP mode (default is DHCP mode), click [Next] to simple SIP parameters (default is 1 line) and browse configuration items. Click [Back] to return to the previous page, and the specific operation is set quickly with the SIP account.
  • Page 12 User Please enter your ADSL account number. Password Please enter your ADSL password. Note: After clicking the [Complete] button after the above operation is completed, the device will automatically save the current configuration and restart. After the restart is successful, you can use the account you just registered to dial the intercom.
  • Page 13 e) TIME&DATE...
  • Page 14 Time setting Field Name Explanation System current time Display the time of the current time zone SNTP setting SNTP Configure whether to enable the SNTP server Whether to use DHCP to dynamically obtain time, when enabled, the device will DHCP Time automatically synchronize the network time for a certain period of time.
  • Page 15 6.5 Network Settings...
  • Page 16 Field Name Explanation WAN Status Active Current IP Address IP Address Current Subnet Subnet mask Mask Current Current preset gateway IP IP Gateway MAC Address Display the local MAC address MAC Timestamp Show time to get MAC address Field Name Explanation WAN Settings For the network connection mode of the device, select the appropriate network mode according to the...
  • Page 17 PPPoE When you select this mode, you must enter the ADSL online account and password. The following settings are only required when the device is in static IP mode. Static IP Please enter the IP address you are assigned to. Subnet Mask Please enter the subnet mask you have assigned.
  • Page 18 Password Please enter your ADSL password. note: 1) After setting the parameters, you need to click [Submit] to take effect. 2) If the IP operation is changed, the web page must no longer respond. In this case, you should enter a new IP in the address bar to connect to the device.
  • Page 19 RTP Start Port The device RTP opens the start port. This port is assigned as a dynamic allocation; Number of RTP The maximum number of RTP ports allocated by the device. The default is 200; ports Note: 1) After modifying this setting, you need to submit the storage and restart the device to take effect. 2) If you change the Telnet, HTTP port number, it is better to set the port number to be greater than 1024, because the port in 1024 is the system reserved port.
  • Page 21 Field Name Explanation Select the SIP account for configuring the first line. There are two lines to choose from. Basic Settings The SIP registration status of the device is displayed. If the registration is successful, the Status registration is displayed, the unsuccessful display is not registered, the password error displays 403 error, and the account failure display timeout.
  • Page 22 Configure the SIP local domain name. If the server does not require the local domain name of the SIP terminal to be the specified domain name, the local domain name canbe Domain Realm configured with the same address or domain name as the server. In order to simplify user input, the user does not have to input the local domain name, and the system will automatically go to the registration address to fill in the content as domain realm.
  • Page 23 Whether the configuration supports RFC3581, the rport mechanism is used in the internal Enable Rport network and needs to be supported by the SIP server to maintain the NAT connection between the internal network device and the external network device. Configure whether the device supports registration and send authentication directly, so Keep that the device does not need to authenticate and respond to the server every time.
  • Page 24 Reject Return Configure Reject SIP response code. Code Busy Return Configure Busy's SIP response code Code 6.7 Intercom Settings AUDIO Through this page, users can set voice coding, input and output, and so on. Audio Settings Field Name Explanation Select the DSP first priority speech coding algorithm, which has: G.711A/u, G.722， First Code G.723, G.729,G.726-32 Select the DSP second priority speech coding algorithm, which has: G.711A/u, G.722，...
  • Page 25 Select the DSP third priority speech coding algorithm, which has:G.711A/u, G.722， Third Code G.723, G.729,G.726-32 Select the DSP forth priority speech coding algorithm, which has:G.711A/u, G.722， Forth Code G.723, G.729,G.726-32 DTMF Payload Set the DTMF payload type, ranging from 96 to 127. The default is 101. Type Default Ring Configure the default ringtone;...
  • Page 26 Function Field Name Explanation Function setting Do not disturb,select this item, the device will reject any incoming calls, the caller will Do not disturb prompt the device is not available; but the local call is not affected. Prohibit outgoing calls, When enabled, off-hook dialing will send a busy tone, Prohibit outgoing calls prompting to hang up.
  • Page 27 Fixed length receiving Configure to enable/disable fixed length receiving number number Length of the Configure the length of the receiving number; the default is 4, after the user dials the receiving number 4-digit number, the device will automatically call out the 4-digit number. Speed Dial key Enables/disables the Speed...
  • Page 29 6.9 Resetting There are two switches on the phone board, one switch is * and the other one is #. To reset the board, you need to do as follow steps: 1. Plug the power cable, Press “#” until the status indicator light is on continuously and then come off . 2.

  • Page 30: Transportation And Storage Requirements

    11. After sales The Warranty of Joiwo’s products is 2 years. Within 2 years since the products are shipped, if there is any quality issue or technical requirements, we will take care of all the trouble shooting and send the spare parts...

  • Page 31: Basic Troubleshooting

    Correct the registration information until the registration is successful Can make calls, but Go to WEB to see if DND mode is set. Turn off ”Do Not Disturb’’mode Can't get in 13. The connection method of the RJ45 network cable: (JWAT921)
  • Page 32 The cable connections that we have described in the previous section can be made in several possible ways and thus the application for which the RJ45 cable is to be used is varied. The ways to connect them are: >Direct: the same order of pins is respected at both ends, that is, it will connect the same in the two RJ45s that we have in a cable.
