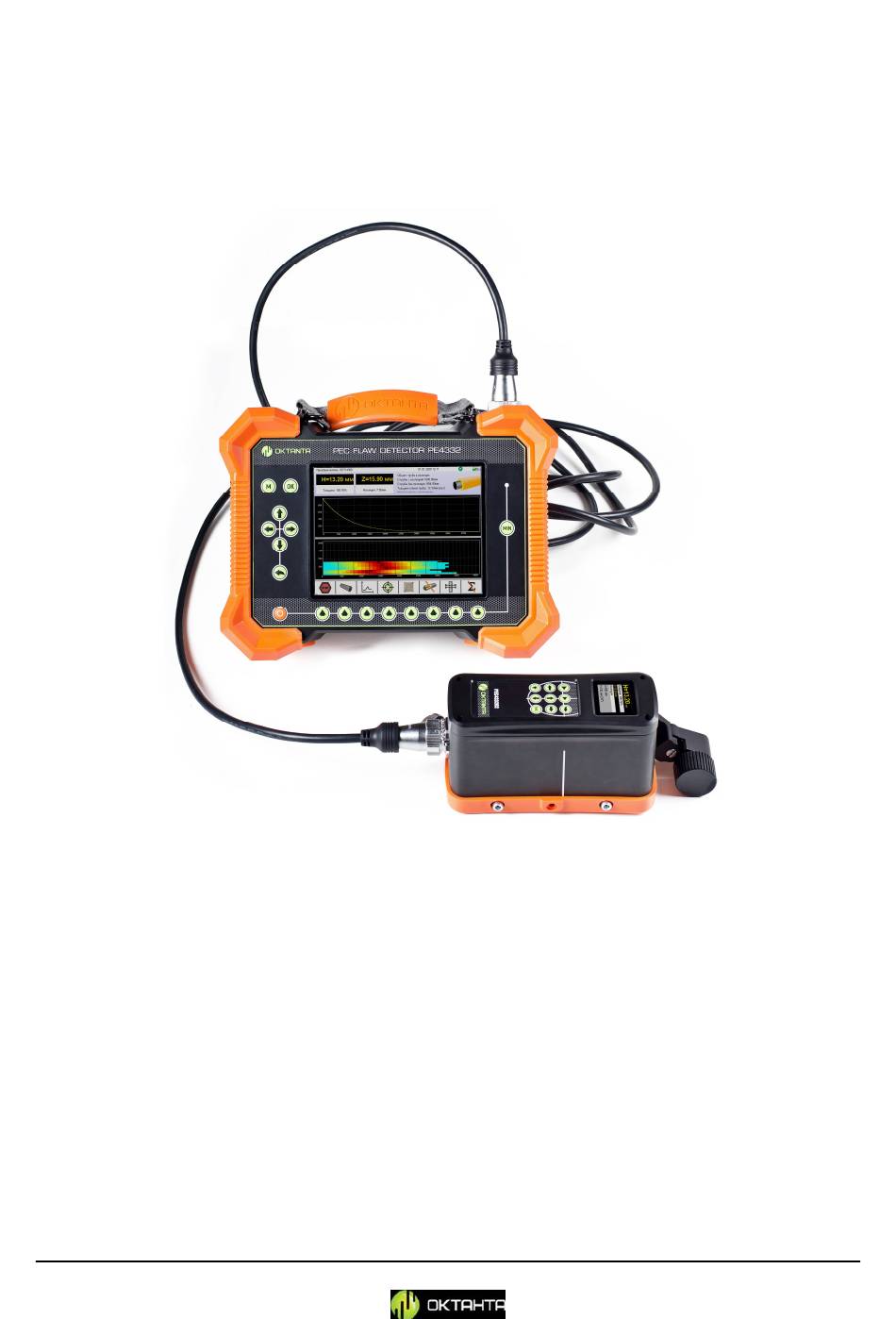

- Page 1 PEC Flaw Detector PE4332 Operation Manual Saint Petersburg 2021 +7(812) 385-54-28 info@oktanta-ndt.ru...
-
Page 2: Table Of Contents
PEC Flaw Detector PE4332 Operation Manual Contents PURPOSE ............................3 PRINCIPLE OF OPERATION........................5 TECHNICAL CHARACTERISTICS ......................6 PEC FLAW DETECTOR APPEARANCE ....................7 Device ............................7 Sensor ............................10 DEVICE MENU ...........................12 Scanning start/stop/continuation menu..................13 Calibration ..........................15 Grid ............................16 Test item parameters ......................24... -
Page 3: Purpose
PEC Flaw Detector PE4332 Operation Manual PURPOSE The Pulsed Eddy Current Flaw Detector PE4332 (PEC Flaw Detector PE4332) is designed to detect corrosion under insulation without removal of the latter. The Device is used to inspect such items as: Insulated pipelines including pipelines in operation: Figure 1. - Page 4 PEC Flaw Detector PE4332 Operation Manual LNG tank supports: Figure 4. LNG tanks. Ship hulls with thick paint or epoxy coating: Figure 5. Ship hull. The Device allows testing such items without preliminary surface preparation or insulation removal. The insulation can be represented with any non-conducting coating, such as polyurethane, mineral wool, plastics, paint, or air.
-
Page 5: Principle Of Operation
PEC Flaw Detector PE4332 Operation Manual PRINCIPLE OF OPERATION The Device operation is based on the pulsed eddy current technique of nondestructive inspection. A Device sensor generates a pulsed magnet field, which magnetizes a test item area located beneath it. Time of magnetization and demagnetization of this area depends on the metal thickness. -
Page 6: Technical Characteristics
PEC Flaw Detector PE4332 Operation Manual TECHNICAL CHARACTERISTICS Measured thickness range for steel (depends on insulation 0 to 60 mm thickness and sensor, see Sensor Selection) Average thickness measurement error Thickness range for insulation coating (depends on insulation 0 to 300 mm... -
Page 7: Pec Flaw Detector Appearance
PEC Flaw Detector PE4332 Operation Manual FLAW DETECTOR APPEARANCE Figure 7 shows the appearance of the PEC Flaw Detector PE4332. You can see the Device itself and the sensor connected with the Device using the cable. Figure 7. PEC Flaw Detector PE4332 appearance. - Page 8 PEC Flaw Detector PE4332 Operation Manual Figure 8. Device appearance. Numbers in the Figure stand for: 1 – Device carrying handle, 2 – Device display, 3 –Device keyboard, 4 – connector for transducers, 5 – USB-A and USB-B connectors, 6 – recharger connector, 7 –...
- Page 9 PEC Flaw Detector PE4332 Operation Manual Indicator of a switched-on light Indicator of a switched-on encoder Indicator of activated scan mode Panel 2 This panel provides information on the test item as well as displays measured thickness of metal and current thickness of the item insulation.
-
Page 10: Sensor
PEC Flaw Detector PE4332 Operation Manual Display and locking A-scan on the screen for a point with MIN key minimum metal thickness detected Various functions specified by Multi-functional keys the icons Sensor Figure 10 shows the appearance of the sensor. - Page 11 PEC Flaw Detector PE4332 Operation Manual 1 – encoder, 2 – sensor display, 3 – sensor keyboard, 4 – cable connector. Figure 11 shows the appearance of the sensor display. Figure 11. Sensor display. The sensor display shows the following information: Indicator of a switched-on light ...
-
Page 12: Device Menu
WARNING! During operation of the PEC Flaw Detector PE4332, the sensor generates a large pulsed magnet field. Be careful when using the sensor as the field can magnetize such sharp tools as a knife, pricker, needle, etc. Do not keep the sensor close to any... -
Page 13: Scanning Start/Stop/Continuation Menu
PEC Flaw Detector PE4332 Operation Manual The icons shown in the main window of the Device are provided in Table 3: Table 3. Icons above the keys in the main window of the Device Icon Purpose Access to scanning start/stop/continuation... - Page 14 PEC Flaw Detector PE4332 Operation Manual Figure 13. Scanning start/stop/continuation menu. This menu has three menu items between which you can navigate using the keys of the Device keyboard. To select the appropriate menu item, press on key. These menu items allow to start new scanning, stop scanning, as well as to continue the stopped scanning.
-
Page 15: Calibration
PEC Flaw Detector PE4332 Operation Manual Scanning stop To stop scanning, select "Stop scanning" menu item and press on the key on the Device keyboard. Scanning continuation To continue scanning, select "Continue scanning" menu item and press on the key of the Device keyboard. This function can be used not only to continue the stopped scanning, however, to continue the previous scans that were not completed. -
Page 16: Grid
PEC Flaw Detector PE4332 Operation Manual Figure 15. Device calibration window The numbers are entered as follows: select any digit place using functional keys; the icon of the highlighted digit position will change to change value from 0 to 9 for each digit position selected using the ... - Page 17 PEC Flaw Detector PE4332 Operation Manual Figure 16. Window with grid parameters. To navigate through the window, use the navigation keys This menu contains the following items: Grid scale There are two scale options: dimensional scale (mm/mm) and non- dimensional scale (123/ABC). The first option is used when the grid has fixed linear dimensions;...
- Page 18 PEC Flaw Detector PE4332 Operation Manual Figure 17. Quick entry window. To change over the digit position, use the keys or the keys under icons. To enter the given number, use the keys or the keys under the icons. Vertical spacing This parameter is used to set the grid spacing along the vertical axis.
- Page 19 PEC Flaw Detector PE4332 Operation Manual Figure 18. Grid saving window. By default, the grid name is automatically generated from the grid parameters; however, you can change the grid name as you wish. To this end, the Device has the keyboard mode (see Figure 12). To navigate through the keyboard, use the keys.
- Page 20 PEC Flaw Detector PE4332 Operation Manual Change-over of the language: English or Russian Space Space key Saving information and exit from the keyboard Enter mode Quick change-over between the keys similarly marked on the keyboard Erasion of one character Complete clearing of the entry field or...
- Page 21 PEC Flaw Detector PE4332 Operation Manual Figure 19. Grid selection keys and press on To select the required grid, select its name from the list using the key or the key under the icon. In addition, you can use this window to delete the unnecessary grid. To this...
- Page 22 PEC Flaw Detector PE4332 Operation Manual Figure 20. Grid position change We recommend to use our self-adhesive grids. An example of such grid located on the pipe is shown in Figure 21. Figure 21. Self-adhesive grid on the pipe. Use of this grid will save time for its drawing.
- Page 23 PEC Flaw Detector PE4332 Operation Manual For quick entry of the specified parameter, you can use the key under icon. For quick entry window appearance, see Figure 22. To change over between the number registers, use the keys under the icons or the keys.
-
Page 24: Test Item Parameters
PEC Flaw Detector PE4332 Operation Manual Figure 23. Grid application To confirm the selected operation, use the key under the icon. WARNING! You can get access to "Grid" menu through the Device main menu key. Test item parameters To operate the Device, you shall enter data on the test item. Figure 24 shows the window for test item parameters entry. - Page 25 PEC Flaw Detector PE4332 Operation Manual Figure 24. Window with test item parameters. This window contains the following menu items: Item shape. This menu item is used to select the test item shape. To select the test item shape, use the...
- Page 26 PEC Flaw Detector PE4332 Operation Manual key under the icon. In this case, the quick For quick entry, use the entry window shown in Figure 25 will appear. Figure 25. Quick entry window. To change over between the digit positions, use the...
- Page 27 PEC Flaw Detector PE4332 Operation Manual If the insulation thickness varies, select the "Variable" option for the “Insulation thickness" parameter. In this case, an additional menu item ("Set insulation thickness") will appear. Figure 26 shows the window, which appears when you open the "Set insulation thickness"...
- Page 28 PEC Flaw Detector PE4332 Operation Manual Figure 27. Set the insulation thickness. To change over between the digit positions, use the keys or the keys under the icons. Enter the insulation thickness in the given point using the keys under the icons or the keys.
- Page 29 PEC Flaw Detector PE4332 Operation Manual Figure 28. Selection of point 2 Then, install the Device sensor near point 2 and press on the key. As a result, the Device will measure the new insulation thickness and go to point ...
- Page 30 PEC Flaw Detector PE4332 Operation Manual Figure 29. Insulated pipe diameter entry. To enter the pipe diameter, use the keys under the icons (see Figure 29) or the keys. For quick entry, you can use the key under the icon. In this case, the window shown in Figure 30 will appear.
-
Page 31: Diagrams
PEC Flaw Detector PE4332 Operation Manual To select the digit position, use the keys under the icons or the keys. Enter value for each position using the keys or the keys under the icons. To save changes, press on the key. - Page 32 PEC Flaw Detector PE4332 Operation Manual – enables to change-over the vertical axis scale between decibels and percents. By default, the decibel scale is used. – enables to change the horizontal axis scale. By pressing the under the icon once, you can change over the A-scan window to the mode of changing the maximum value along this axis.
- Page 33 PEC Flaw Detector PE4332 Operation Manual By pressing on the key under the icon thrice, you can return the window to the initial state. – enables to change the vertical axis scale. The scale can be changed in the same manner as for the horizontal axis. (See the previous paragraph –...
-
Page 34: Insulation Thickness
PEC Flaw Detector PE4332 Operation Manual – For the test item of "pipe" type, you can select units of measurement to be displayed for the vertical axis; possible options are millimeters and degrees. This key changes over display modes between millimeters and degrees. -
Page 35: Thresholds
Thresholds The PEC Flaw Detector PE4332 has the scan mode using which you can fill C-scan with thickness measurements performed in the grid nodes. Each thickness measurement is displayed on C-scan of the Device as a rectangle highlighted in certain color. You can set positions of the upper and the lower thresholds in the Device. - Page 36 PEC Flaw Detector PE4332 Operation Manual Figure 35. Window for threshold position change. All thickness measurements, which are higher than the upper threshold (threshold 1), will be displayed in blue on C-scan. All thickness measurements, which are lower than the lower threshold (threshold 2), will be displayed in black on C-scan. The thickness measurements between two thresholds are displayed on C-scan in color according to the legend shown in Figure 35.
-
Page 37: Averaging
PEC Flaw Detector PE4332 Operation Manual WARNING! You can get access to threshold position change menu through the Device main menu key. Averaging To reduce impact of such interfering factors as network interference, acoustic noise, etc., the Device can use averaging. The averaging means averaging of measurements many times performed in one point. -
Page 38: Main Menu
PEC Flaw Detector PE4332 Operation Manual By default, averaging is off. WARNING! The averaging number can be also changed through the Device main menu key in the "Settings" tab. Main menu Figure 37 shows the Device main menu. Figure 37. Device main menu... - Page 39 PEC Flaw Detector PE4332 Operation Manual Settings. The menu items of "Scanning start/stop/continuation menu", "Test item parameters", "Calibration", "Grid", "Thresholds" are described in Section "DEVICE MENU". Open file This menu allows you to load the pre-saved archives to review, adjust or continue scanning.
- Page 40 PEC Flaw Detector PE4332 Operation Manual USB drive operation You can copy all saved archives to the external USB drive. To this end, insert the USB drive into USB-A connector and select the Device menu the "USB drive operation" menu item. In this case, the window shown in Figure 39 will appear on the Device screen.
- Page 41 PEC Flaw Detector PE4332 Operation Manual To change the parameters, use the keys or the functional keys under the icons. Language You can change the Device interface language. To this end, use the keys or the keys under the icons to select the language; possible options are “China”, “English”...
- Page 42 PEC Flaw Detector PE4332 Operation Manual Figure 41. Entry of Operator name The name is entered sequentially one character at a time. To navigate the keyboard, use the keys. The selected character is entered when the key is pressed on. To complete entry of the name and to exit from this window,...
- Page 43 PEC Flaw Detector PE4332 Operation Manual Space Space key Saving information and exit from the keyboard Enter mode Quick change-over between the keys similarly marked on the keyboard Erasion of one character Complete clearing of the entry field or Undo...
-
Page 44: Device Operation
DEVICE OPERATION The PEC Flaw Detector PE4332 can operate in two modes. They are the simple mode of thickness measurements and the scan mode. The scan mode is used when it is necessary to test any expanded area of the test item. - Page 45 PEC Flaw Detector PE4332 Operation Manual Figure 43. Diagram for sensor selection, for aluminum casing or for option without casing Figure 44. Diagram for sensor selection, for tin casing. The larger is the thickness range and insulation thickness range, the larger is the sensor.
- Page 46 PEC Flaw Detector PE4332 Operation Manual the larger is the sensor, the larger is the area over which the averaging takes place and, accordingly, the larger is the minimum fault that the device can detect. Therefore, it is advisable to use as small sensor as possible.
- Page 47 PEC Flaw Detector PE4332 Operation Manual Figure 45. Dependence of magnetization area size on insulation thickness. Table 6. Size of averaging area Insulation thickness, mm Sensor name 260mm X 280mm X 310mm X PEC433201 160mm X 70mm 170mm X 70mm 180mm X 75mm 210mm X 80mm 230mm X 90mm...
-
Page 48: Thickness Measurement
25 cm from each of the above items. Thickness Measurement The PE4332 measures thicknesses by analyzing the metal demagnetization under the sensor. The demagnetization process is always displayed on A-scan. An example of A-scan is shown in Figure 41 Figure 47. - Page 49 PEC Flaw Detector PE4332 Operation Manual this line. If this line is unavailable, then the measured thickness shall be considered incorrect; such example is shown in Figure 48. Figure 48. Unavailable point of crossing the threshold on A-scan Such situation may arise, if you have incorrectly set the value of "Insulation thickness"...
-
Page 50: Scan Mode
Any thickness measurement to be carried out with PE4332 is performed relative to the known thickness in a certain point of the test item. Therefore, prior to the thickness measurements, it is necessary to calibrate the Device for this test item. - Page 51 The example of such grid is shown in Figure 50. Figure 50. Example of self-adhesive grid produced by Oktanta. You can manually draw the grid on the test item using a ruler and a marker, however, we do not recommend this method as it requires a lot of time.
- Page 52 PEC Flaw Detector PE4332 Operation Manual Figure 51. Self-adhesive grid on the pipe. Prior to the beginning of measurements in the scan mode, do as follows: Select the casing material, Enter all data in the menu ("Test item parameters").
- Page 53 PEC Flaw Detector PE4332 Operation Manual Using the menu ("Thresholds"), set the required values of thresholds, which influence on the color used to display one or another thickness. We recommend to set 80% of nominal pipe thickness for threshold 1 and 50% of nominal pipe thickness for threshold 2.
- Page 54 PEC Flaw Detector PE4332 Operation Manual Figure 53. Sensor position indicator. The current coordinates of the sensor are displayed on the sensor screen. You shall install the sensor in the grid node with coordinate (0.0). The Device sensors have the keyboard with a cross; you shall install the sensor so that the cross point on the keyboard coincides with the grid node.
- Page 55 PEC Flaw Detector PE4332 Operation Manual While holding the sensor in this position, press on the key on the sensor keyboard. Then, the Device will measure the thickness and automatically move to the next point. You shall move the sensor to the next grid node, for example, point ...
- Page 56 PEC Flaw Detector PE4332 Operation Manual Then, press on the key on the sensor keyboard to move the sensor position indicator on C-scan to the next line beginning. This position is shown in Figure 57. Figure 57. Sensor indicator position at the second line beginning.
- Page 57 PEC Flaw Detector PE4332 Operation Manual While holding the sensor in this position, press on the key on the sensor keyboard. The Device will measure the thickness and move to the next point. Thus, sequentially point by point, row by row, you will fill the entire C- ...
-
Page 58: Data Transfer
Data transfer using PC connection. You can connect the PEC Flaw Detector PE4332 to the PC using a USB-B – USB- A cable. To this end, insert the USB-B connector into the Device, and the USB-A connector into the PC. Switch on the Device. When you connect the switched-on Device to the PC, the PC considers the Device as the external USB drive;... -
Page 59: Sensor Replacement
Tighten the screws WARNING! The battery of the PEC Flaw Detector PE4332 is a 12.V 18Ah lithium-ion battery. Do not disassemble, heat, or expose to mechanical shocks the battery. These actions can cause spontaneous ignition of the battery!!! Sensor Replacement... -
Page 60: Encoder Installation And Removal
PEC Flaw Detector PE4332 Operation Manual Connect the new sensor. Switch on the Device. Encoder Installation and Removal To install the encoder, do as follows: Switch off the Device, Take the encoder from the scope of supply, ... -
Page 61: Transportation And Storage
PEC Flaw Detector PE4332 Operation Manual TRANSPORTATION AND STORAGE During storage and transportation of the Device, maintain the following climatic conditions: Air temperature: +5 to +30 С Humidity 80% at +25 C Store and transport the Device only in a case from the scope of supply. Avoid any mechanical damages of the case and Device. -
Page 62: Manufacturer Warranty
PEC Flaw Detector PE4332 Operation Manual MANUFACTURER WARRANTY The warranty period for the Device is 2 years from the purchase date. Within the warranty period, the Manufacturer shall rectify faults of the Device provided that the housing is not damaged and the warranty seals are available. -
Page 63: Information About Repair
PEC Flaw Detector PE4332 Operation Manual INFORMATION ABOUT REPAIR Completed/Not Completed Date of Fault Type Repair (Date, Signature, Application Stamp) +7(812) 385-54-28 info@oktanta-ndt.ru...
