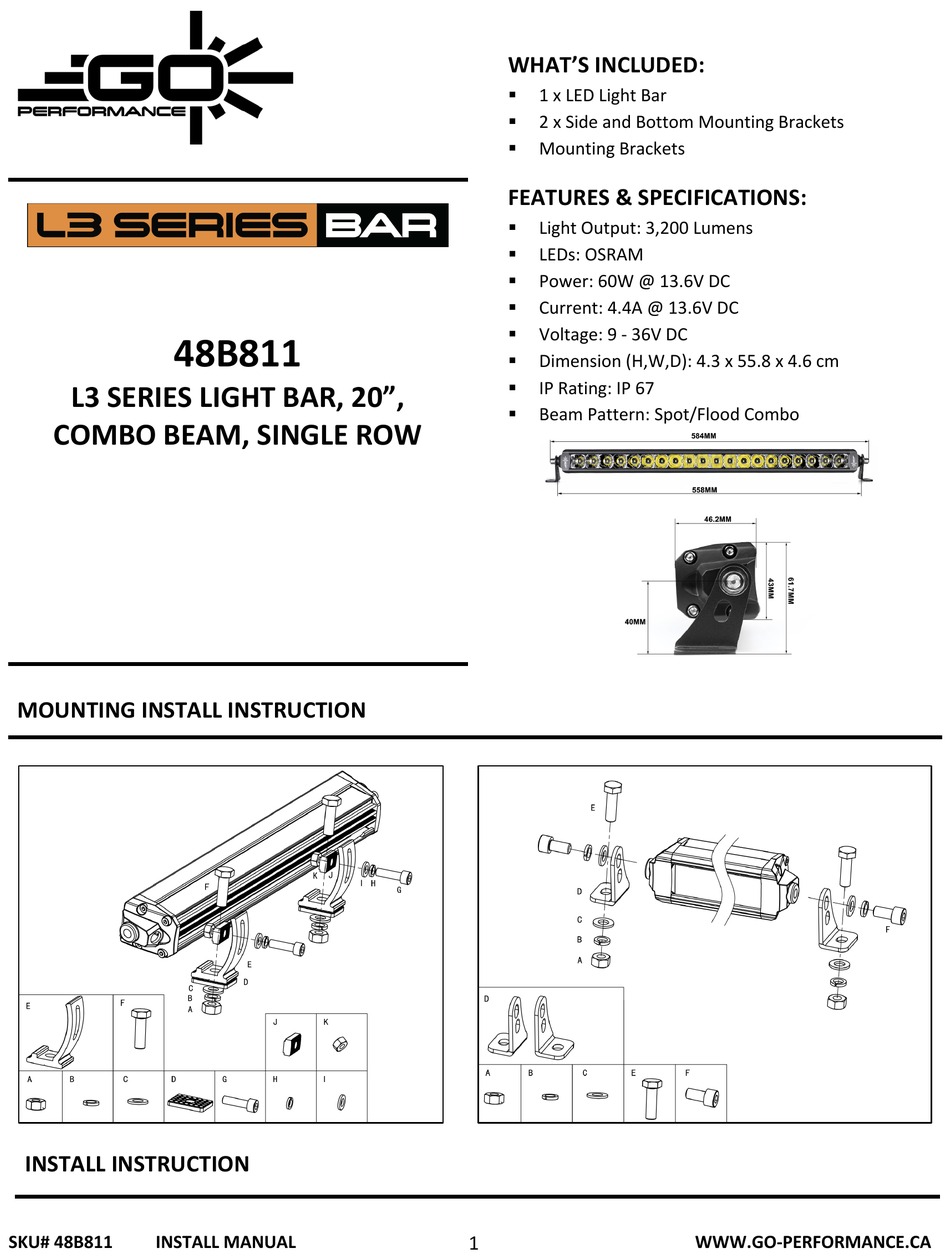

L3 SERIES LIGHT BAR, 20",
COMBO BEAM, SINGLE ROW
MOUNTING INSTALL INSTRUCTION
INSTALL INSTRUCTION
SKU# 48B811
INSTALL MANUAL
WHAT'S INCLUDED:
1 x LED Light Bar
§
2 x Side and Bottom Mounting Brackets
§
Mounting Brackets
§
FEATURES & SPECIFICATIONS:
Light Output: 3,200 Lumens
§
LEDs: OSRAM
§
Power: 60W @ 13.6V DC
§
Current: 4.4A @ 13.6V DC
§
Voltage: 9 - 36V DC
§
Dimension (H,W,D): 4.3 x 55.8 x 4.6 cm
§
IP Rating: IP 67
§
Beam Pattern: Spot/Flood Combo
§
1
WWW.GO-PERFORMANCE.CA
Advertisement
Table of Contents
Related Manuals for GO PERFORMANCE L3 Series
Summary of Contents for GO PERFORMANCE L3 Series
- Page 1 Voltage: 9 - 36V DC § 48B811 Dimension (H,W,D): 4.3 x 55.8 x 4.6 cm § IP Rating: IP 67 § L3 SERIES LIGHT BAR, 20”, Beam Pattern: Spot/Flood Combo § COMBO BEAM, SINGLE ROW MOUNTING INSTALL INSTRUCTION INSTALL INSTRUCTION SKU# 48B811 INSTALL MANUAL WWW.GO-PERFORMANCE.CA...
- Page 2 Wiring Harness 840001 Sold Separately 1. Determine suitable mounting locations to install the LED light bar, wiring harness and switch. Once all mounting locations are confirmed, connect the wires as shown above. Proper insulation at connections is required. 2. Connect positive and negative wire properly. Press the switch button to test if the light bar is functioning properly.
