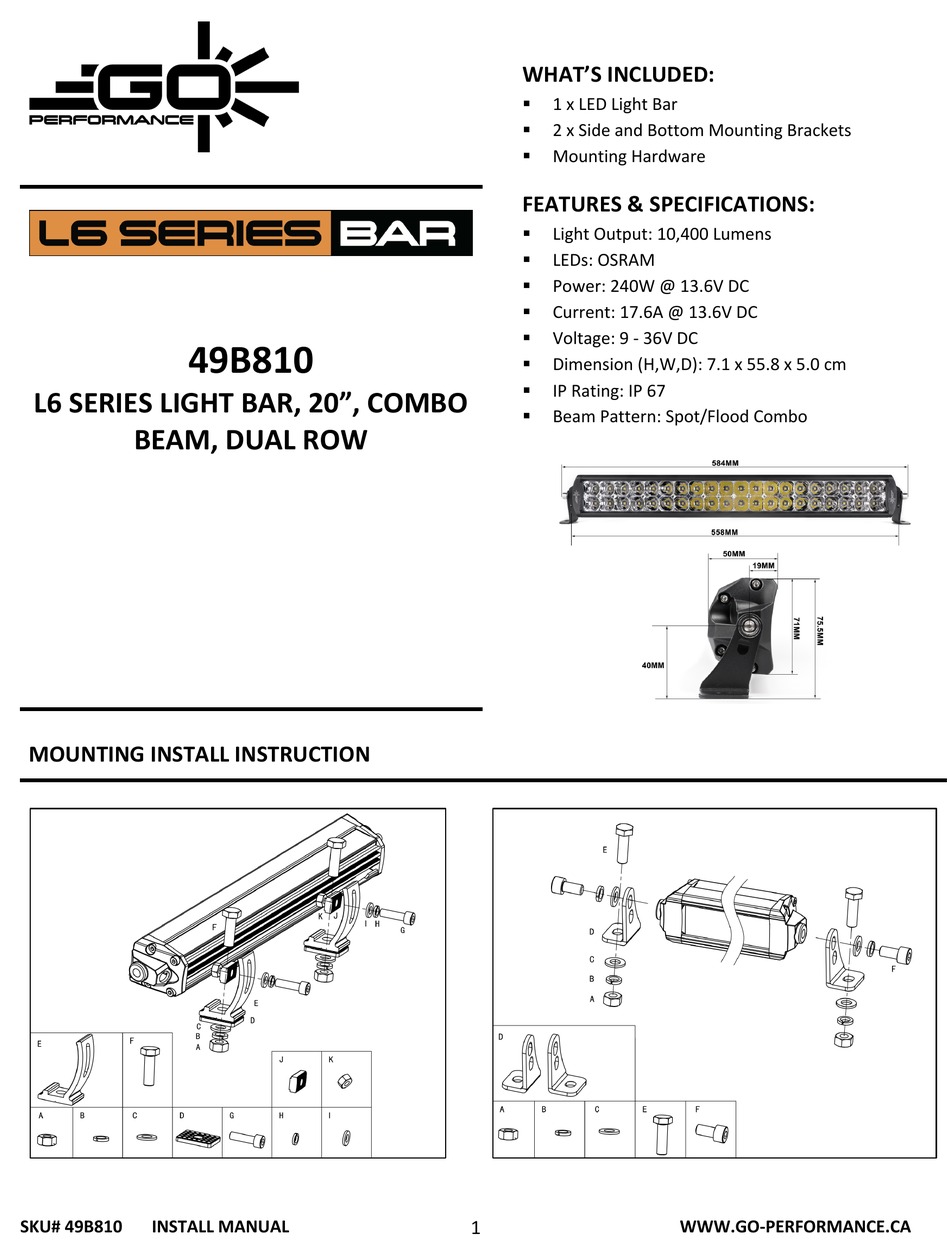

49B810
L6 SERIES LIGHT BAR, 20", COMBO
BEAM, DUAL ROW
MOUNTING INSTALL INSTRUCTION
SKU# 49B810
INSTALL MANUAL
WHAT'S INCLUDED:
1 x LED Light Bar
§
2 x Side and Bottom Mounting Brackets
§
Mounting Hardware
§
FEATURES & SPECIFICATIONS:
Light Output: 10,400 Lumens
§
LEDs: OSRAM
§
Power: 240W @ 13.6V DC
§
Current: 17.6A @ 13.6V DC
§
Voltage: 9 - 36V DC
§
Dimension (H,W,D): 7.1 x 55.8 x 5.0 cm
§
IP Rating: IP 67
§
Beam Pattern: Spot/Flood Combo
§
1
WWW.GO-PERFORMANCE.CA
Advertisement
Table of Contents
Related Manuals for GO PERFORMANCE L6 Series
Summary of Contents for GO PERFORMANCE L6 Series
- Page 1 Voltage: 9 - 36V DC § 49B810 Dimension (H,W,D): 7.1 x 55.8 x 5.0 cm § IP Rating: IP 67 § L6 SERIES LIGHT BAR, 20”, COMBO Beam Pattern: Spot/Flood Combo § BEAM, DUAL ROW MOUNTING INSTALL INSTRUCTION SKU# 49B810 INSTALL MANUAL...
- Page 2 INSTALL INSTRUCTION Wiring Harness 840001 Sold Separately 1. Determine suitable mounting locations to install the LED light bar, wiring harness and switch. Once all mounting locations are confirmed, connect the wires as shown above. Proper insulation at connections is required. 2.
