5G3510/5G3610/6G3110/
6G3310
L5 SERIES POD
3" CUBE LED POD LIGHTS
U MOUNT

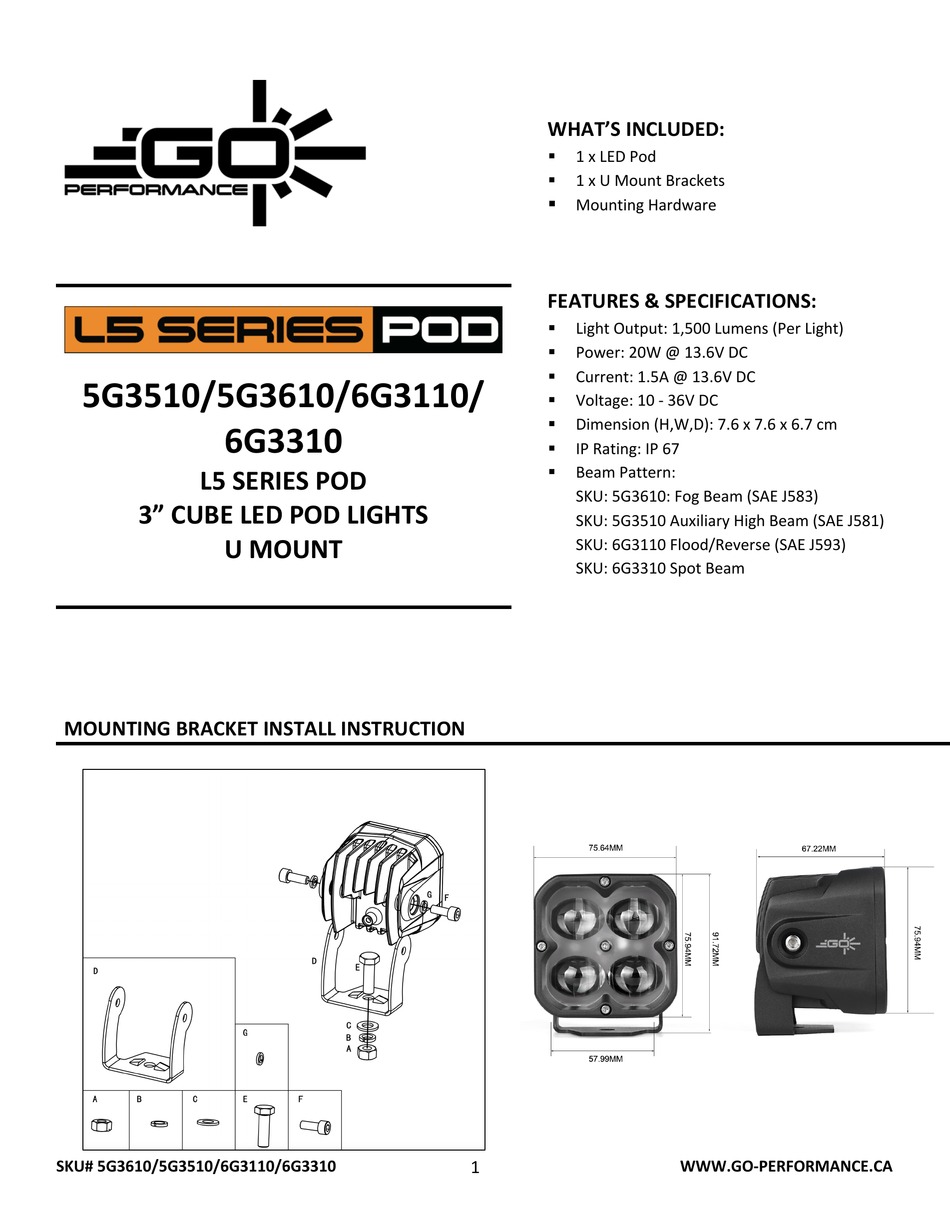

MOUNTING BRACKET INSTALL INSTRUCTION
SKU# 5G3610/5G3510/6G3110/6G3310
WHAT'S INCLUDED:
1 x LED Pod
§
1 x U Mount Brackets
§
§
Mounting Hardware
FEATURES & SPECIFICATIONS:
Light Output: 1,500 Lumens (Per Light)
§
Power: 20W @ 13.6V DC
§
Current: 1.5A @ 13.6V DC
§
Voltage: 10 - 36V DC
§
§
Dimension (H,W,D): 7.6 x 7.6 x 6.7 cm
IP Rating: IP 67
§
Beam Pattern:
§
SKU: 5G3610: Fog Beam (SAE J583)
SKU: 5G3510 Auxiliary High Beam (SAE J581)
SKU: 6G3110 Flood/Reverse (SAE J593)
SKU: 6G3310 Spot Beam
1
WWW.GO-PERFORMANCE.CA
Advertisement
Table of Contents
Related Manuals for GO PERFORMANCE L5 Series
Summary of Contents for GO PERFORMANCE L5 Series
- Page 1 Dimension (H,W,D): 7.6 x 7.6 x 6.7 cm 6G3310 IP Rating: IP 67 § Beam Pattern: L5 SERIES POD § SKU: 5G3610: Fog Beam (SAE J583) 3” CUBE LED POD LIGHTS SKU: 5G3510 Auxiliary High Beam (SAE J581) U MOUNT...
- Page 2 Wiring Harness (840002) sold separately 1. This installation guide is for the following SKUs: § 5G3610 - L5 Series Pod, 3” Cube LED Pod Lights, Fog Beam, U Mount § 5G3510 - L5 Series Pod, 3” Cube LED Pod Lights, Driving Beam, U Mount §...
- Page 3 2. Determine and suitable mounting locations to install the LED Pods, wiring harness and switch. Once all mounting locations are confirmed, connect the wires as shown above. Proper insulation at connections is required. 3. Connect positive wire and negative wire properly. Press the switch to test if the lights are functioning properly.
