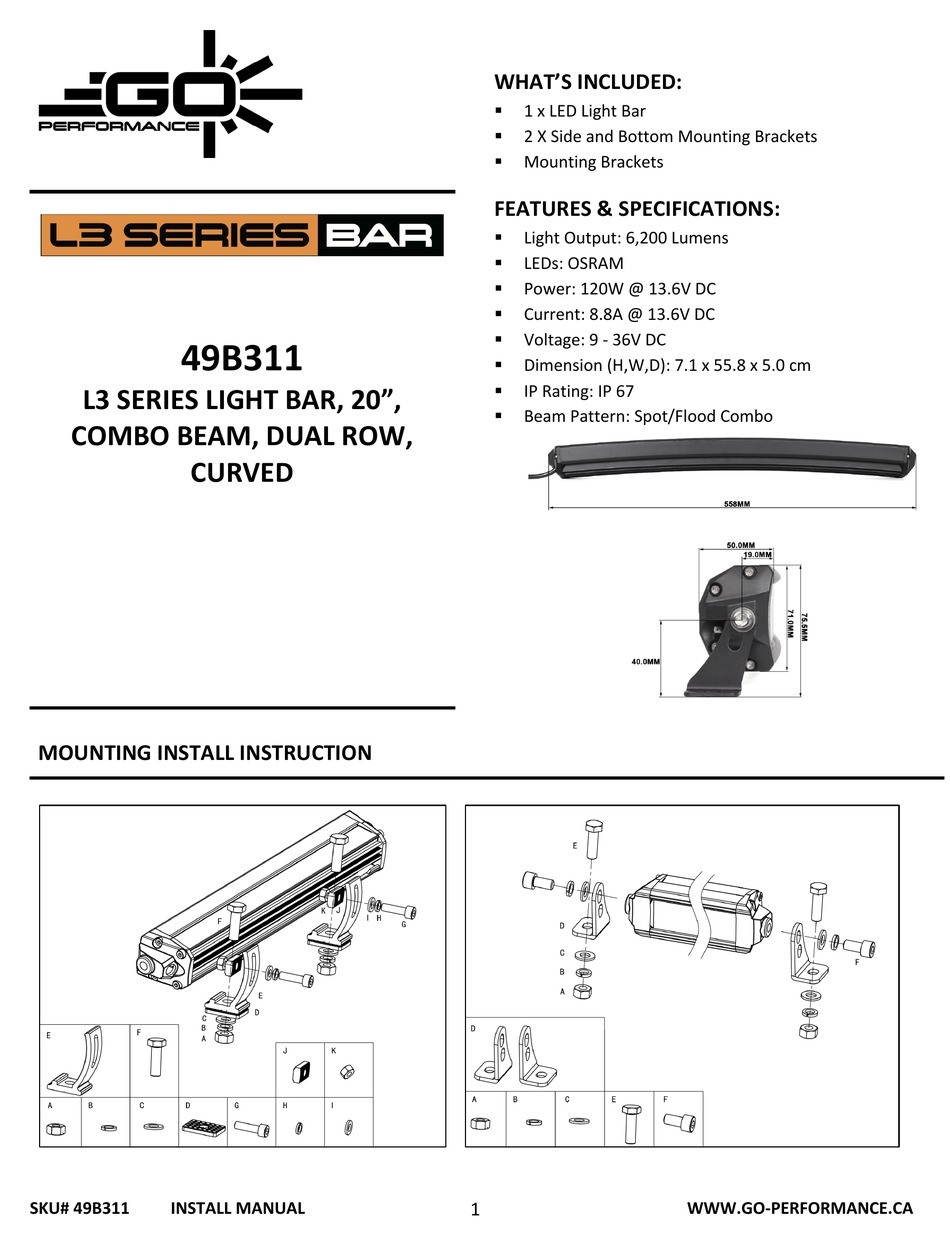

49B311
L3 SERIES LIGHT BAR, 20",
COMBO BEAM, DUAL ROW,
CURVED
MOUNTING INSTALL INSTRUCTION
SKU# 49B311
INSTALL MANUAL
WHAT'S INCLUDED:
1 x LED Light Bar
§
2 X Side and Bottom Mounting Brackets
§
Mounting Brackets
§
FEATURES & SPECIFICATIONS:
Light Output: 6,200 Lumens
§
LEDs: OSRAM
§
Power: 120W @ 13.6V DC
§
§
Current: 8.8A @ 13.6V DC
Voltage: 9 - 36V DC
§
Dimension (H,W,D): 7.1 x 55.8 x 5.0 cm
§
IP Rating: IP 67
§
Beam Pattern: Spot/Flood Combo
§
1
WWW.GO-PERFORMANCE.CA
Advertisement
Table of Contents
Related Manuals for GO PERFORMANCE L3 Series
Summary of Contents for GO PERFORMANCE L3 Series
- Page 1 Voltage: 9 - 36V DC § 49B311 Dimension (H,W,D): 7.1 x 55.8 x 5.0 cm § IP Rating: IP 67 § L3 SERIES LIGHT BAR, 20”, Beam Pattern: Spot/Flood Combo § COMBO BEAM, DUAL ROW, CURVED MOUNTING INSTALL INSTRUCTION SKU# 49B311 INSTALL MANUAL WWW.GO-PERFORMANCE.CA...
- Page 2 INSTALL INSTRUCTION Wiring Harness 840001 Sold Separately 1. Determine suitable mounting locations to install the LED light bar, wiring harness and switch. Once all mounting locations are confirmed, connect the wires as shown above. Proper insulation at connections is required. 2.
