Summary of Contents for Avent Security VN168

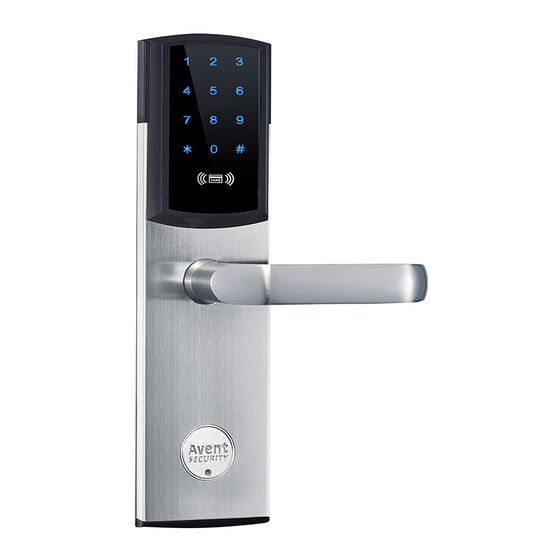

- Page 1 Digital Door Lock VN168...
- Page 2 Keypad Battery Card Reader Micro-USB Port Cylinder Brief Introduction There are 1 master password user, 50 password users and 200 card users available in the lock. The default master password is “1234-5678”. New Lock only has master password, people only can input the master password to unlock.
-
Page 3: Installation
Installation Front Fold Side Fold 1.Drill the holes on the door according 2. Install the mortise into the door, 3.Install the cylinder into the mortise, to the template; and fasten the screws; and then install the cover on the mortise. Insert the spindle into the mortise. -
Page 4: Operation
Operation Password Unlocking Touch the keypad to activate the lock, and then input the password with press “#” to finish. If the password is correct, the LED indicator shows blue light with sounds, and then you can press down the handle for unlocking. “BLUE”... - Page 5 RF Card Unlocking Place the card close to keypad. If the card is correct, the LED indicator shows blue light with sounds, and then you can press down the handle for unlocking. “BLUE” Mechanical Key Unlocking When there are problems with electronic part, and the batteries run out of power using mechanical key is the way to unlock the lock.
- Page 6 Change Master Password Master Input master password, Input 1 press # to confirm; (default password is 1234-5678) Input new master password, Input new master password again, press # to confirm; press # to confirm, and then finish the registration. The master password has to be 8 digits. Once finish the operations, please try to unlock the lock to confirm the operation is successful.
- Page 7 Add Users (Password User) Master Input Master Password, Input 8 press # to confirm; Input new password, Input new password again, press # to confirm; press # to confirm, and then finish the registration. The password has to be 6 digits; Once finish the operations, please try to unlock the lock to confirm the operation is successful.
- Page 8 Add Users (Card User) Master Input Master Password, Input 8 press # to confirm; Place the card on the card reader and finish the registration. If the deadbolt comes out when registering, the card can unlock when the deadbolt is open. It is suggested to make a list for recording the card user ID.
- Page 9 Delete Single User (Password or Card) Master Input 4 Input Master Password, Input the password (or Card) press # to confirm; you want to delete, and the system will delete it. Once finish the operations, please try to unlock the lock to confirm the operation is successful.
-
Page 10: Modify Password
Modify Password Input Old Password, Input 1 press # to confirm; Input new password, Input new password again, press # to confirm, and finish. press # to confirm; The password has to be 6 digits. Once finish the operations, please try to unlock the lock to confirm the operation is successful. - Page 11 Unlocking Mode When the lock is requested for unlocking frequently, you can activate the passage mode and let the people unlocking without identifications. Single Unlocking Mode to Double Unlocking Mode Master Input master password, Input 6, press # to confirm, and finish.
-
Page 12: Passage Mode
Passage Mode When the lock is requested for unlocking frequently, you can activate the passage mode and let the people unlocking without identifications. Enable: Press down the inside handle Keep retracting the latch bolt, and retract the latch bolt. and then place an unlock card on the reader when the lock has an alarm Disable: Place an unlocking card on the reader to unlock,...
