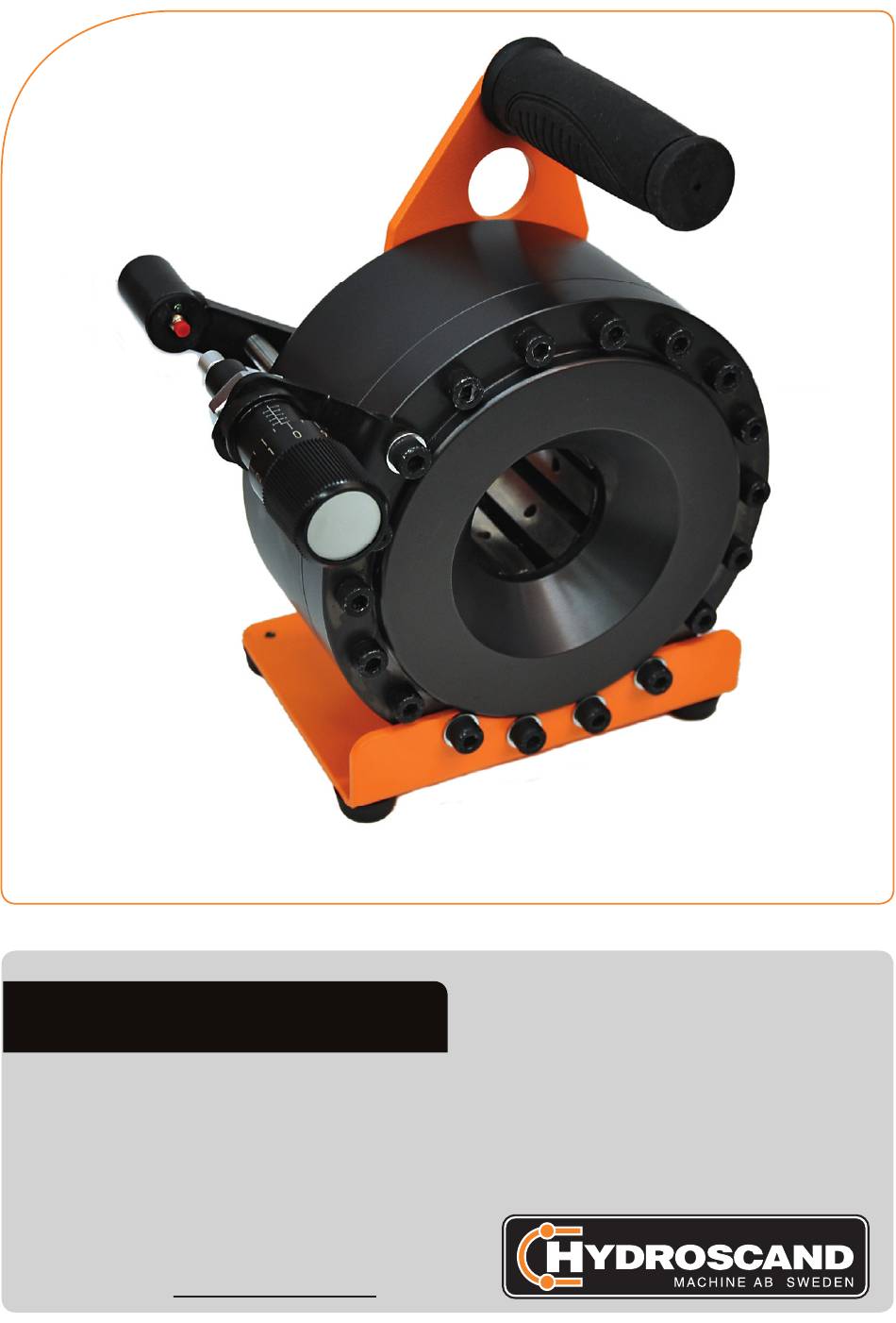

- Page 1 H16P UseR MAnUAL edition II - 2017-05-18 serial number:...
- Page 2 High quality and reliable performance in a demanding environment was the primary focus. Downtime and unnecessary service is always more expensive than the small extra cost of a quality product. That was the philosophy and still is for what became Hydroscand Machine AB in Säter, 20 years ago.
-
Page 3: Table Of Contents
Contents 1. INTRODUcTION ..........4 2. SAFETY RULES ......... 4 - 5 3. EqUIPMENT ..........5 - 7 3.1 WARRANTY ..........5 3.2 IMPORTANT ..........6 3.3 IDENTIFIcATION ........ 6 - 7 4. START - UP ..........7-10 4.1 MAcHINE PLAcEMENT....... 7 4.2 SELEcTINg DIES ........ -
Page 4: Introduction
This manual provides necessary information for safe use of this machine. This manual is the result of continual development, testing and technical evalua- tions that are registered and verified by Hydroscand Machine AB according to 2006:42/Ec. This information is intended only for specialized operators who can operate the machine without risk to themselves, other persons, property, the machine, or the environment. -
Page 5: Equipment
All maintenance not described in this manual must be performed by an authorized service technician. 3. equipment H16P is a portable, manual crimping machine for hydraulic hose intended for use in service vehicles. The machine is designed for smaller hose crimping series and not intended for large-scale production. -
Page 6: Important
H16P is designed, manufactured and made safe for crimping hydraulic hose in dimensions 3/16”-1”. Any other use of this machine is considered improper and Hydroscand Machine AB is not liable for injury or damage to persons, property or the machine. The machine shall only be used for crimping hydraulic hose accor- ding to specifi cation. -
Page 7: Start-Up
H16P USER MANUAL EDITION II 2017-05-18 H16P 1. Crimp diameter adjusting knob 1. Crimp diameter adjusting knob 2. Dies 3. Hydraulic connection for high pressure 3. Hydraulic connection for high pressure 4. start-up 4.1 Machine placement Place the machine on a stable and fl at surface. -
Page 8: Setting Crimping Measurments
H16P USER MANUAL EDITION II 2017-05-18 H16 DIes Die set Crimping area 16-10 10-12 mm 16-12 12-14 mm 16-14 14-16 mm 16-16 16-19 mm 16-19 19-23 mm Die size marking 16-23 23-27 mm 16-27 27-31 mm Die set pin 16-31... -
Page 9: Changing Die Set
H16P USER MANUAL EDITION II 2017-05-18 DIE SET 0 turn 1 turn 2 turns 3 turns 4 turns 5 turns 6 turns 7 turns 16-10 16-12 16-14 NEXT 16-16 SIZE! 16-19 16-23 16-27 16-31 Masterdies 4.4 Changing die sets Retract the dies completely by turning the return valve one turn. -
Page 10: Crimping
Use a small brush to lubricate the cone shaped surfaces in the cylinder. Better to lubricate sparingly and more often than seldom and excessively. Without lubrica- tion, the machine looses power and you will damage the sliding surfaces. Use only the lubrication recommended by Hydroscand Machine AB: Optimol viscogen 4. -
Page 11: Calibration
H16P USER MANUAL EDITION II 2017-05-18 5.2 Calibration If the actual crimping measurement differs too much from the set crimping measurements then calibrate the machine. Use die set nr 19. Set the dial to 0.0. Crimp. The crimping diameter is reached when the the indication lamp lights. -
Page 12: Technical Data
DIMensIons teCHnICAL DAtA Depth/Width/Height ......180x230x270 mm Crimping range in mm........10 - 45 Weight H16P ............20 kg Crimping range in inch ........0,39 - 1,77 Crimping force in metric tons ......... 95,5 Crimping force in kN ..........955 DesIGnAtIon: PARt nUMBeR: Maximum hose size in inches ...... -
Page 13: Spare Parts
H16P USER MANUAL EDITION II 2017-05-18... - Page 14 H16P USER MANUAL EDITION II 2017-05-18...
- Page 15 H16P USER MANUAL EDITION II 2017-05-18...
- Page 16 Pungmakarbovägen 1, SE-783 90 Säter, Sweden Phone: +46-(0)225-573 30 Fax: +46-(0)225-501 08 info@hydroscand-machine.se www.hydroscand-machine.se...
