4.4

Outriggers/elbow outriggers

The outriggers/elbow outriggers stated in the assembly tables must always be fitted as
soon as the bottom section of the stair tower reaches a height of 2 metres.
The basic shape to be used, i.e. the outrigger/elbow outrigger to be used (small or
large), can be found in the assembly tables.
The basic shapes given below must be strictly followed!
If the required shape is deviated from, it may be necessary to use ballast. Contact the
manufacturer or supplier for further information. Small elbow outriggers may be
replaced by small outriggers and large elbow outriggers may be replaced by large
outriggers if, when using the outriggers, the same basic shape is maintained as for
the elbow outriggers. This means that the outriggers must be fitted in the same
position as the elbow outriggers when viewed from above.

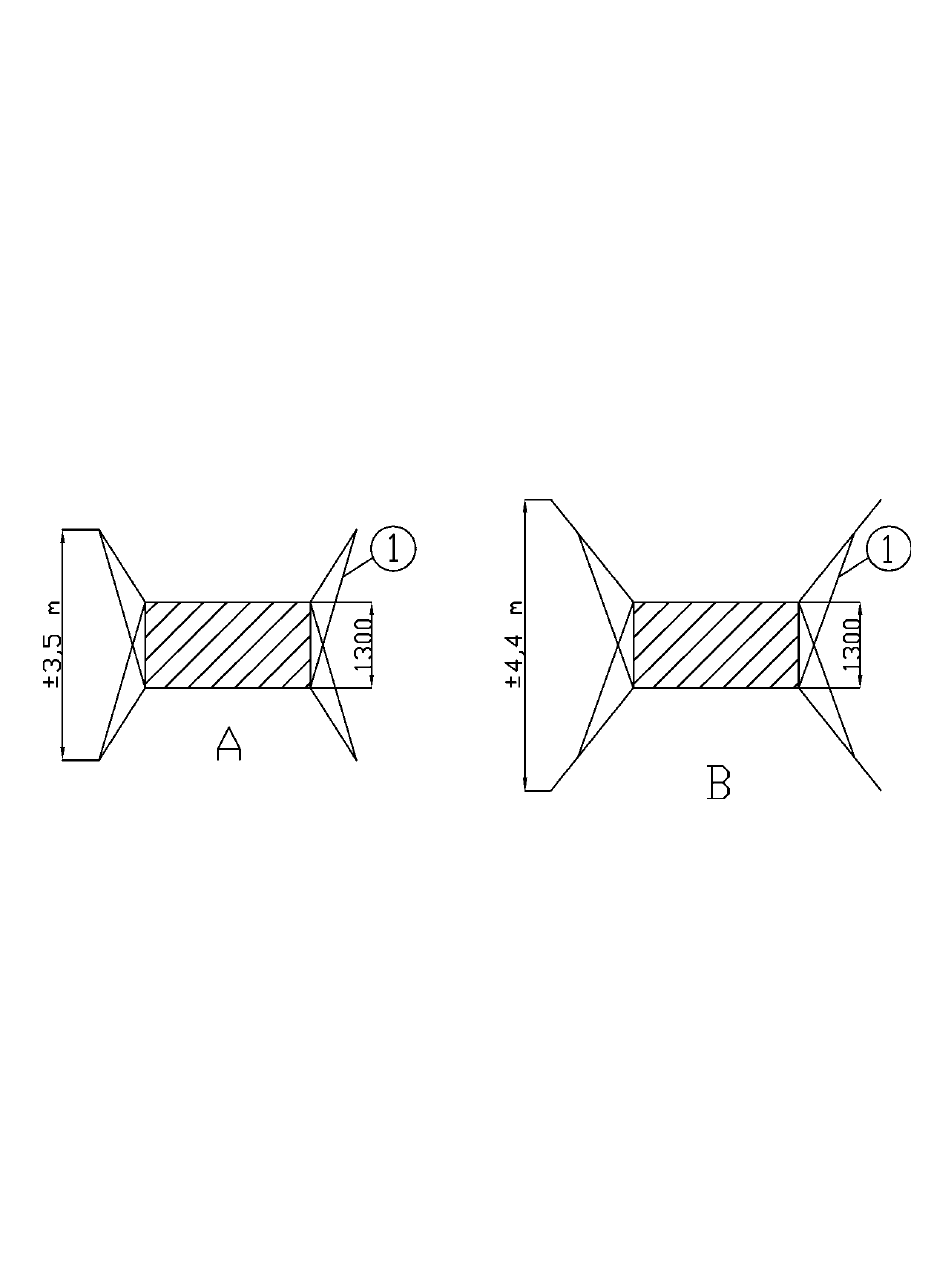

Basic shapes
A: Small elbow outrigger, length 1300 mm B: Large elbow outrigger, length 2000 mm
1: Horizontal, length 2500 mm, art. nr. 9501.200.030
