Retro Antenna PA-02 Installation Instructions

Welcome

Thank you for purchasing a RetroAntenna

to mount the motor separately from the antenna, which facilitates installation for vehicles with limited space. Care must be taken during the

installation to make sure that the antenna mast functions properly before finalizing the install. Please note that this antenna does not work

with antenna systems requiring a switch.

Our antenna uses a standard end designed to fit most applications. Some factory radios for 1995 and newer Fords, 1988 and newer GMs and

some imports use a unique connector at the radio, and an adapter may be needed. Contact a local car audio shop for the correct

adapter part if one is needed.

Disconnect the battery before you begin. Gain access to the underside of the fender area through the trunk, fender, splash panel, etc.

Remove and disassemble the old antenna and base. Retain the old base and mounting parts for your reference. In some cases you

can reuse them if you wish to keep the old look. Remove the mounting bracket, drain tube, electrical wires and antenna coaxial cable.

When removing electrical wires and the coaxial cable from the antenna, follow the wire's path to the closest connector and

disconnect. DO NOT CUT THE COAXIAL CABLE

Remove the old antenna from below the fender.

INSTALLATION INSTRUCTIONS

PA-02 / PA-04

power antenna. This antenna features fully automatic operation. This unique antenna allows you

Table of Contents

Do you have a question about the PA-02 and is the answer not in the manual?

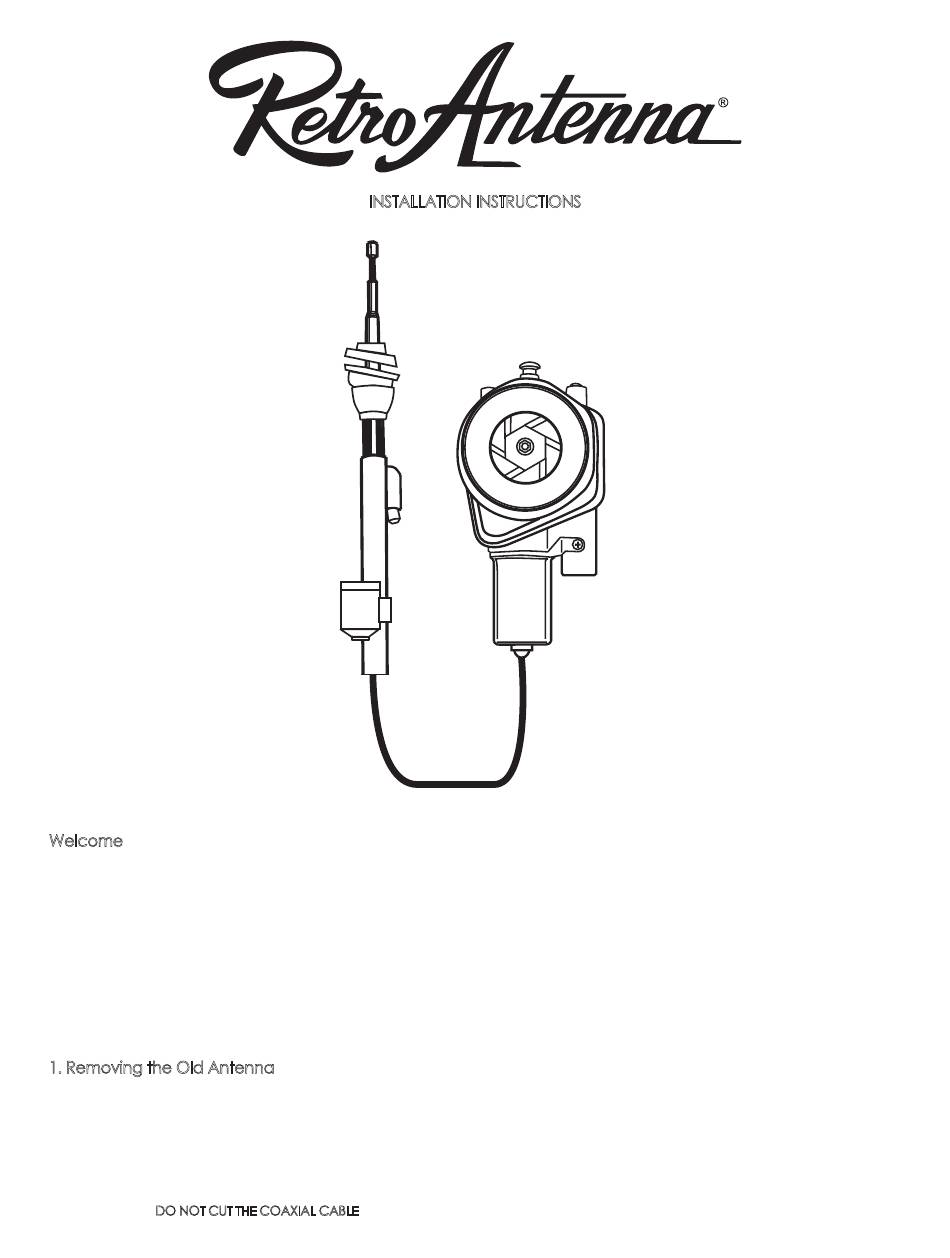

Page 1 INSTALLATION INSTRUCTIONS PA-02 / PA-04 Welcome Thank you for purchasing a RetroAntenna power antenna. This antenna features fully automatic operation. This unique antenna allows you ® to mount the motor separately from the antenna, which facilitates installation for vehicles with limited space. Care must be taken during the installation to make sure that the antenna mast functions properly before finalizing the install.
Page 2 2. Installing the New Antenna Make sure the battery is disconnected before you begin to install the new antenna. Make sure the underside of the fender is free from obstructions and has enough clearance to house the new antenna. Your new antenna requires approximately 11 1/2 inches or 29cm of clearance.
Page 3 Red (battery +12 volt) 5 amp fuse wire from antenna Flexible to red wire mast cable Fuseblock Fuseblock Switched Unswitched White (-) to chassis ground from antenna Motor Assembly Battery Ignition switch Metal Strap Drain Tube PA-02 / PA-04...
