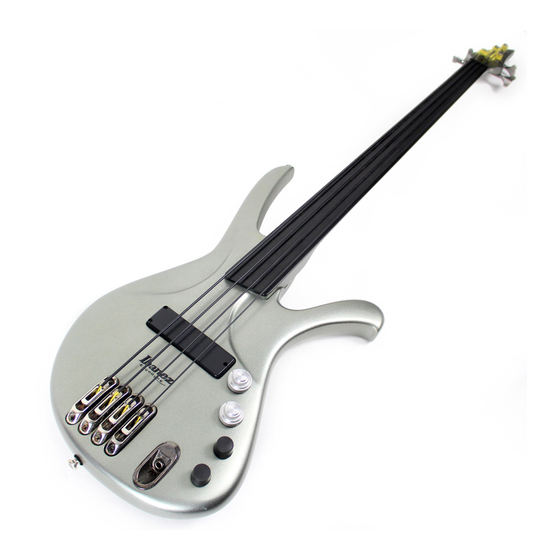

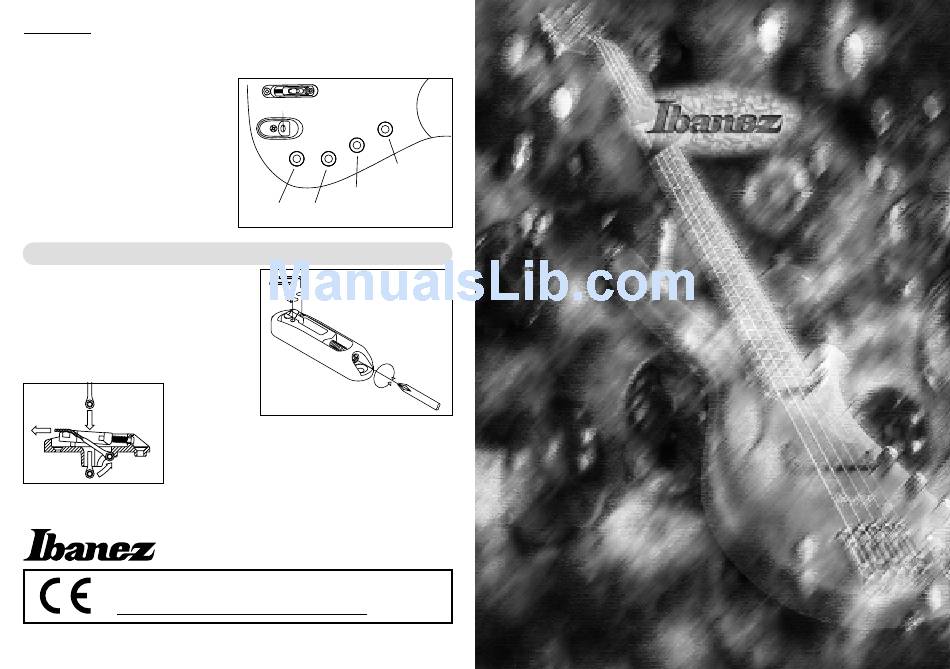

Ibanez EQA-PZ Instruction Manual

EQ Controls
The EQA-PZ system has separate EQ circuits for both the Magnetic Pickup
and the Piezo Pickup. The Magnetic EQ Circuit boosts both the bass and
treble frequencies simultaneously with a single control knob. The Piezo
Pickup EQ Circuit is a 2-band EQ
circuit and features a Treble EQ
knob on the body and a Bass EQ trim
pot inside the control cavity. The
Bass EQ trim pot is designed for "set
and forget" use. Turning the trim
clockwise boosts the bass
frequencies. Turning the trim
counterclockwise cuts the bass
frequencies.
MONO-RAIL II w/Fishman
Mono-Rail II w/Fishman® Piezo bridges
allow the bass strings to be isolated fro
one another by using independent bridge
plates for each string. the strings are
installed by lowering the ball end into the
bridge and hooking the ball end below
the string catch at the rear of the bridge.
Intonation adjustments can be made by
adjusting the
i n t o n a t i o n
screws (A) at
the rear of the
bridge clockwise to move the saddle back, and
counter clockwise to move the saddle forward.
This is to certify that the aforementioned equipments fully conform
to protection requirements of the following EC council directives.
DIRECTIVES : 89/336/EEC Electromagnetic compatibility
Printed in KOREA JAN01393 ©Copyright 2001
Magnetic
Volume
Piezo
Volume
Piezo Treble
Magnetic EQ
Boost/Cut
® Piezo
(A)
INSTRUCTION MANUAL
I b a n e z E D A B a s s
