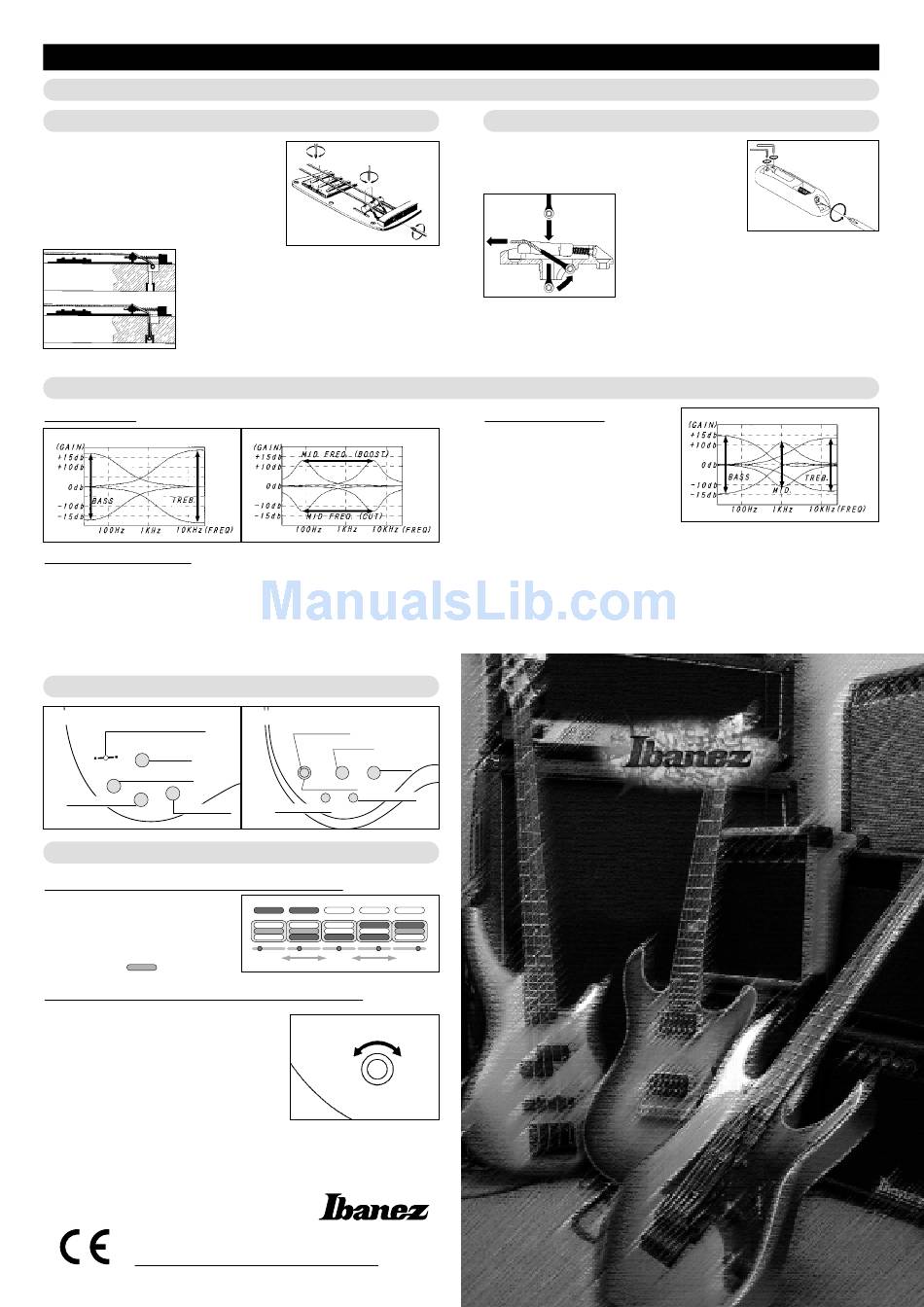

Ibanez GSA Series,GIO SA Series GSA60 Instruction Manual

ATK bridges were designed to allow the
maximum amount of string vibration to
transfer from the body. For slightly more
sustain, strings can be installed either from
the back of the instrument through the
string grommets. For slightly more attack,
the strings can be lowered into the bridge
from the front of the instrument and
hooked onto the
string catch. Intonation adjustments can be
made by adjusting the intonation screws (A) at
the rear of the bridge clockwise to move the
saddle back, and counter clockwise to move
the saddle forward.
*Note: When replacing string check with the dealer to
make sure the new strings are long enough for the full
scale length of the bass.
VARI-MID EQ
BTB SERIES : VARI-MID 3B
The Vari-Mid 3B EQ was designed to work with passive pickups and is
loaded with 18 volts to allow the user to get more output from the bass
before distortion.
BASS CONTROLS
ATK
3way PU Character Sw.
ATK/5way PU Selecter
Volume
Treble Boost/Cut
Mid Boost/Cut
Bass Boost/Cut
PICKUP SELECTION
ATK : 5 WAY PICKUP CHARACTER SWITCH
The 5 way pickup character switch
allows the user five completely
different tone positions.
noise cancel coil
ALL 2 PICKUP MODELS : PICKUP BALANCER
The pickup balance control pot allows the
user to blend between the front and back
pickups using a single pot. The center
position of the pot has a de-tent which will
set both pickups to equal output.
Turning the knob clockwise increases the
neck pickup while decreasing the output of
the bridge pickup. Turning the knob counter
clockwise decreases the neck pickup and
increases the output of the bridge pickup.
Printed in JAPAN NOV00374 ©Copyright 2000
This is to certify that the aforementioned equipments fully conform to
protection requirements of the following EC council directives.
DIRECTIVES : 89/336/EEC Electromagnetic compatibility
B A S S I N F O R M A T I O N
ATK
BTB : VARI-MID
Mid Boost/Cut
Balancer
Volume
Mid Frequency
Bass Boost/Cut
Treble Boost/Cut
Neck Center
BRIDGE
PICKUP
BRIDGES
Mono-Rail II bridges allow the bass strings to be
isolated from one another by using independent
bridge plates for each string. The strings are
installed by lowering the ball end into the bridge
(A)
ACTIVE EQ.
ATK : 3 BAND EQ
The Ibanez ATK 3 BAND EQ was
designed for use with passive
pickups and allows the user to
control the bass/treble and mid
range boost and cut.
INSTRUCTION MANUAL
Bridge
NECK
PICKUP
ELECTRIC GUITARS AND BASSES
MONO-RAIL II
and hooking the ball
end below the string
catch at the rear of
the bridge.
Intonation adjustments can be made by
adjusting the intonation screws (A) at the rear
of the bridge clockwise to move the saddle
back, and counter clockwise to move the
saddle forward.
(A)
