HEATIT WIFI
Installers manual
TABLE OF CONTENTS
1. Introduction
2. Installation
3. Startup
4. Symbols
4.1 Operation mode
4.2 Heating/Cooling active
4.3 Note
5. Controls
6. Standby and main screen
7. Menu items
8. Operation mode
9. Weekly schedule
10. Heatit WiFi zones
11. Advanced settings
12. WiFi settings
13. Phone applications
14. Product info

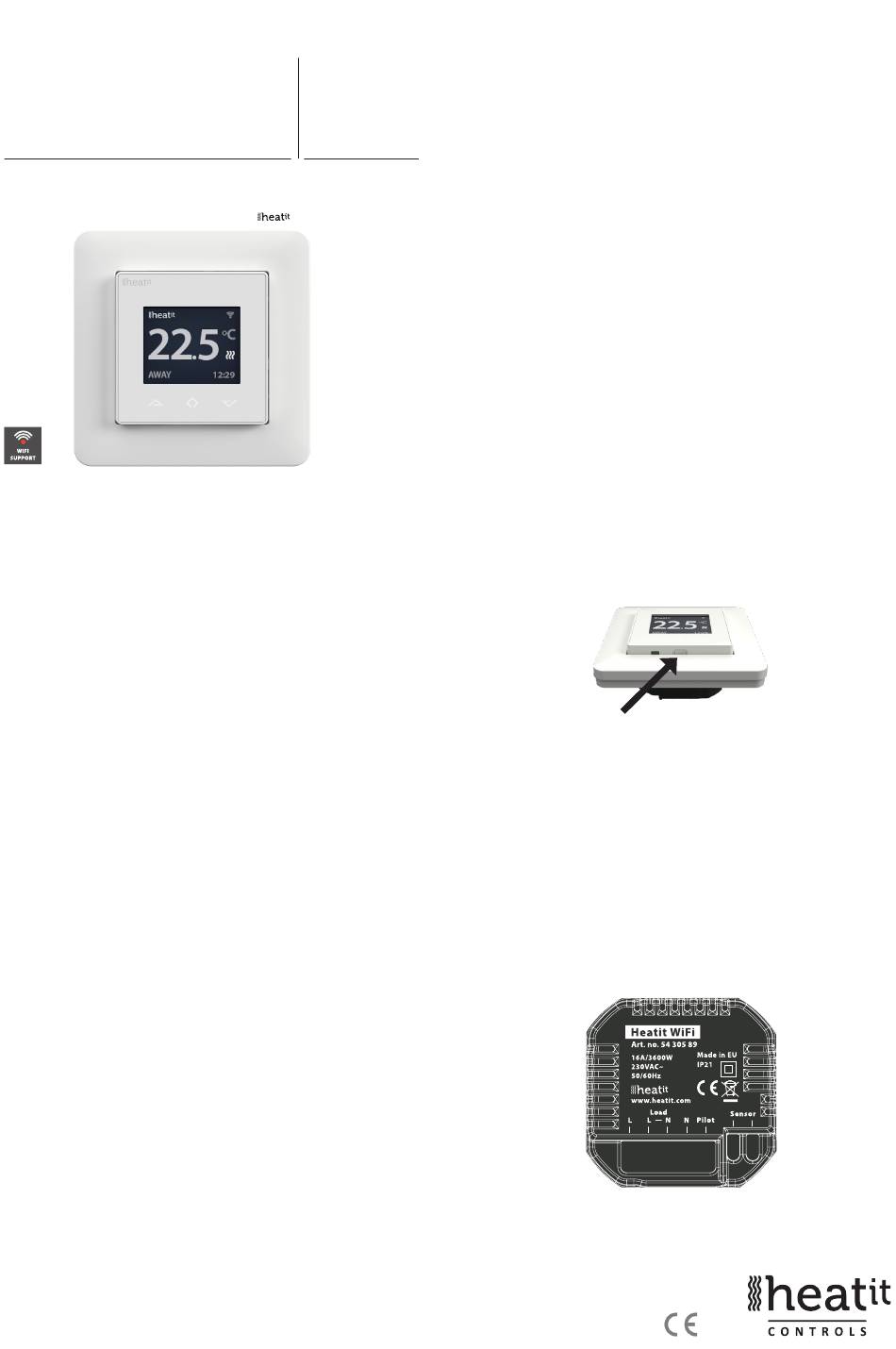

1. INTRODUCTION
Heatit WiFi thermostat is an electronic thermostat for electrical
underfloor heating. The thermostat has a simple user interface and
01.10.2021
can be easily programmed via the capacitive buttons. The color screen
Ver 2021-A
displays an accessible user interface. The thermostat has a built-in WiFi
chip that allows you to control it from a user-friendly app. The "Heatit
WiFi" app is available on Google Play and in the App Store. Works
with Amazon Alexa and Google Home (pending). If you are installing
multiple thermostats in the same house, you may copy the settings
from one thermostat to the next. This simplifies installation.
Heatit WiFi thermostat 16A is equipped with a single-pole switch and
fits into most common frames (e.g. System 55, Elko RS16, Schneider
Exxact). The thermostat can withstand a load of max 16A/3600W
at 230VAC. We recommend a contactor for loads above 13A. The
thermostat may be connected to an external sensor.
The thermostat is designed for electrical heating.
2. INSTALLATION
Installation must be done by a qualified electrician in accordance with
the national building codes. Before installation, disconnect any power
to the device mains. During installation of the device, power to the
device must be disconnected AT ALL TIMES!
Release the front cover by pressing e.g. a screwdriver gently into the
ejector latch at the bottom of the thermostat.
Now connect the wires to the thermostat terminals:
L
LOAD (N)
LOAD (L)
N
PILOT
SENSOR
Power connection (Live)
Heating Cable connection (Neutral)
Heating Cable connection (Live)
Power connection (Neutral)
Pilot Wire (if applicable)
Floor temp sensor, NTC type
Advertisement
Related Manuals for Heatit Controls HEATIT WIFI
Summary of Contents for Heatit Controls HEATIT WIFI
- Page 1 This simplifies installation. Heatit WiFi thermostat 16A is equipped with a single-pole switch and fits into most common frames (e.g. System 55, Elko RS16, Schneider Exxact).
- Page 2 5. CONTROLS Wires must be stripped 9-10mm. Wires can be released by pressing the connector’s release switch. Floor sensor must be placed into a protective The thermostat is controlled by three touch sensitive buttons: tube when used in concrete. Make sure there is no water in the tube. •...
- Page 3 To change the WiFi network or password please use the ”Connect to 10. HEATIT WIFI ZONES cloud” menu along with the ”Reconfigure WiFi” menu in the phone All thermostats are added to zones. Zones can control multiple app.
- Page 4 Heatit Controls AB l Läkarvägen 4, 454 31 BRASTAD, SWEDEN Heatit Controls AB can not be held liable for typographical errors, other errors or omittances in our information. Product specifications may change without further notice. All electrical installations must be carried out by a licensed Phone: +47 61 18 77 77 l post@heatit.com –...
