Heatit Controls Z-TEMP2 Installer Manual

HEATIT
Z-TEMP2
Installers manual

TABLE OF CONTENTS

1 Introduction
2 Statement regarding products from multiple
manufacturers
3 Behavior within the Z-Wave™ network
4 Quick Start
5 Installation
6 Add/Remove
6.1 Method 1 Standard (manual)
6.2 Method 2 SmartStart (automatic)
7 Factory Reset
8 Compability/ Principles for regulation
9 Information shown in display
10 Hysteresis (DIF)
11 Childlock - Lock
12
Inverted output
13 Standby and main screen
14 Z-Wave QR-Code / DSK
15 Security
16 Node Information Frame
17 Associations
18 Configuration parameters
19 Operating the device
20 Supported Command Classes
Product information
Firmware 1.2
01.12.2020
Ver 2020-B
1. INTRODUCTION

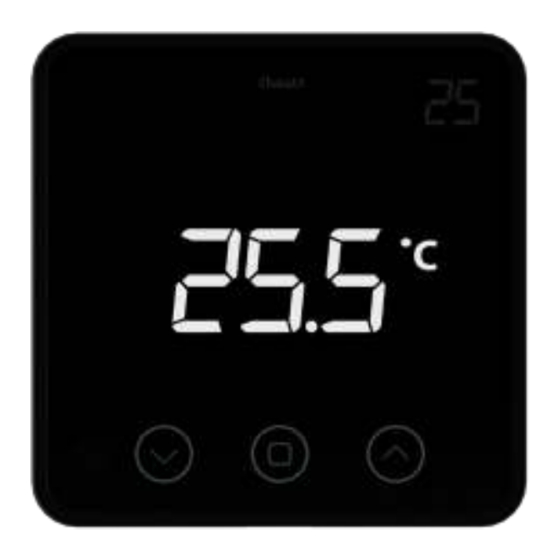

Heatit Z-Temp2 is a battery-operated thermostat designed for use with
waterbased heating systems. Used in combination with the Heatit
Z-Water regulator you can control your heating system with a Z-Wave
primary controller/gateway. All communication between the Heatit
Z-Temp2 and the controlled device is 100% wireless.
2. STATEMENT REGARDING PRODUCT FROM MULTIPLE
MANUFACTURERS
Please read this before installation
This device may be used with all devices certified with the Z-Wave Plus™
certificate and should be compatible with such devices produced by
other manufacturers. Every primary controller is different depending on
the manufacturer, their target audience and intended
use/application. Please review the functionalities implemented by
the primary controller you intend to use with our Z-Wave Plus
certified device to ensure that it provides the necessary controls
to take full advantage of our product' s capabilities.
3. BEHAVIOR WITHIN THE Z-WAVE NETWORK
This product can be operated in any Z-Wave network with other Z-Wave
certified devices from other manufacturers. All non-battery-operated
nodes within the network will act as repeaters regardless
of manufacturer to increase reliability of the network. On delivery,
the device does not belong to any Z-Wave network. The device
needs to be added to an existing network to communicate with
the devices of this network. Devices can also be removed from
a network. Both adding and removing process are initiated by the primary
controller of the Z-Wave network.
This controller will enter a mode for adding or removing devices. Please
refer to your primary controller/gateway manual on how to turn your
controller into add or remove mode. The device can only be added or
removed from the network if the primary controller is in add/remove
mode. When the device is removed from the network, the device will
revert to factory default settings.
4. QUICK START
4.1. Install the batteries (as stated in the technical specification).
4.2. Install the device on a flat vertical surface using screws or
double-sided tape
4.3. Set the controller/gateway in add mode (security/non-
security).
4.4. Press the link button 3 times in a rapid sequence.
4.5. The thermostat will display "INC" when the thermostat is
successfully included.
NB! If adding/removing fails, Err (error) will appear.
5. INSTALLATION
Use a large flathead screwdriver to remove the back cover.
Fix the unit to the wall by double-sided tape, screws or installed
on top of a Euro wall box.
Make sure the mounting surface is clean and dry.
Then install 3x AA batteries (alkaline) in the device' s battery-holder.
NB! Be careful to when installing batteries, ensuring the polarity of
the batteries is in accordance with the printing in plastic.
