Summary of Contents for Belmont Garden Stella Fountain

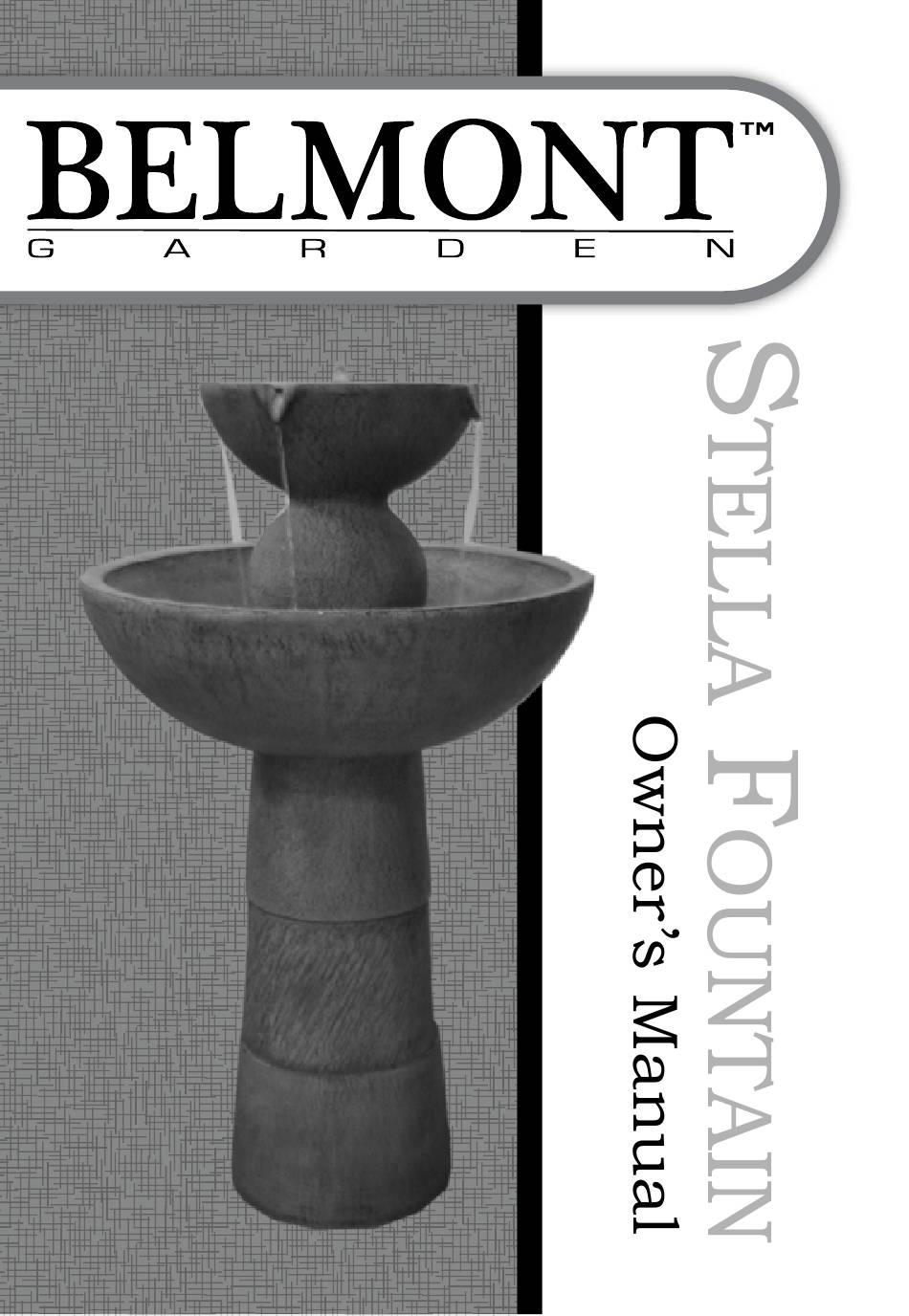

- Page 2 This product comes with a one year limited warranty against materials and workmanship. Please review the list of accessories included with your Belmont Garden™ Fountain on the next page. Please note, images of parts are not to scale with one another.
- Page 3 Parts to your new Belmont Gardens™ Fountain: Stella Topper Dancing Water Attachments Large Bowl Base Battery Compart- ment, Water Tube & Water Pump Leveling Shim...
-
Page 4: Table Of Contents
CONTENTS Step 1: Base & Large Bowl Bowl Locking System Step 2: Stella Topper Installation Installing The Stella Topper Step 3: Battery Installation Inserting Batteries Into The Battery Compartment Installing Batteries Assembly Of Battery Compartment Housing & Battery Cover Assembly Of Water Pump & Tube To Battery Compartment Changing Batteries Step 4: Setting Up Your Fountain Fill Your Fountain... -
Page 5: Step 1: Base & Large Bowl
Step 1: Step 1: Base & Large Bowl You will need: Large Bowl Base Remember if you need help contact Customer Care: 1+ (619) 449-2392... -
Page 6: Bowl Locking System
Bowl Locking System A look at how the bowl locking system works on your Fountain. Bottom of Large Bowl Top of Base Note: You will notice that there are two different sized Step 1: Be sure to tabs on the bottom of the Large Bowl and there are two place the Base of your corresponding grooves in the top of the Base. -
Page 7: Step 2: Stella Topper Installation
Step 2: Stella Topper Installation You will need: Assembled Base & Large Bowl Stella Topper Remember if you need help contact Customer Care: 1+ (619) 449-2392... -
Page 8: Installing The Stella Topper
Installing The Stella Topper Step 1: Like the Large Bowl and Base, the Stella Topper uses a key-lock system to connect to the Large Bowl. The square notches in the groove of the Large Bowl will align with the square gaps in the bottom of the Stella Topper. -
Page 9: Step 3: Battery Installation
Step 3: Battery Installation You will need: Battery Compart- Fountain ment, Water Tube Assembled & Water Pump Remember if you need help contact Customer Care: 1+ (619) 449-2392... -
Page 10: Inserting Batteries Into The Battery Compartment
Inserting Batteries Into The Battery Compartment Battery Compartment Retaining Figure 1c Screws X2 Figure 1a Figure 1b INSTALLING BATTERIES: 1. (If Battery Compartment & Water Pump is installed into the Stella Topper) Lift out of the Stella Topper (Figure 1a). Disconnect the Water Tube from the Battery Compartment (A Figure 3b). 2. -
Page 11: Assembly Of Battery Compartment Housing & Battery Cover
Assembly Of Battery Compartment Housing & Battery Cover: 1. Place Battery Cover on Battery Compartment Housing. Turn over assembled Battery unit and place on a flat, level surface. Using a Phillips screwdriver (not included) first, tighten left screw down firmly. 2. -
Page 12: Changing Batteries
CHANGING BATTERIES: 1. Remove any Dancing Water Attachment, lift Battery Compartment and Water Pump out of the Fountain (Figure 4a). Ensure Battery Compartment and Water Pump are completely dry before opening Battery Compartment. It is important that no water enters the Battery Compartment. -
Page 13: Step 4: Setting Up Your Fountain
Step 4: Setting Up Your Fountain You will need: Water To Fill Your Fountain Fountain Dancing Water Assembled Attachments Remember if you need help contact Customer Care: 1+ (619) 449-2392... -
Page 14: Fill Your Fountain
Fill Your Fountain Fill the large bowl until the water is about 1 inch (2.5 centimeters) from the top of the bowl. After you have filled your fountain to dislodge any air bubbles from the pump, grab both sides of the large bowl and quickly shake your fountain for ten seconds. This is to dislodge any air bubbles that may be caught in your water pump. -
Page 15: Dancing Water Attachments
NOTE: Please be aware that there is over spray that occurs while using the Dancing Water Attachments. You can now try your Belmont Garden™ Fountain to see if everything is working correctly! Turn your fountain on and you should see water flowing from the outlet on the top of the Stella Topper. -
Page 16: Troubleshooting And Maintenance
After about six weeks of usage, you may want to clean the water pump’s filter and impeller to keep your Belmont Garden™ Fountain in tip-top shape. You will need to drain your fountain of all water prior to cleaning the water pumps’ parts. -
Page 17: Priming The Water Pump
Is your fountain making a loud noise or do you not see water flowing? Try priming the water pump. If you find the Water Pump is running, but water is not flowing from your Fountain, you can try priming the Water Pump: Turn off Fountain, grab both sides of the Fountain and quickly shake your Fountain for ten seconds. -
Page 18: Troubleshooting Guide
Troubleshooting Guide PROBLEM SOLUTION Fountain is not Check that batteries have a full charge: See Changing Battery Section. working Pump Check that batteries have a full charge: See Changing Battery Section. not working Prime Pump as instructed. (Refer to priming the water pump) Add Water Water Not Flowing Check to see that pump tubes are connected... - Page 19 (1) year from the date of original purchase. If within one (1) year this product fails due to defect in material or workmanship, Belmont Garden™ will repair, replace or supply any defective part at their discretion. The purchaser must contact Belmont Garden™...
- Page 20 IMPORTANT BATTERY SAFETY INSTRUCTIONS DANGER: Do not store battery in an airtight container as it may cause an explosion. WARNING: When using electric devices, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following: WARNING: When using electric devices, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following: WARNING: 1.
