Belmont Garden Ellie Elephant Fountain Owner's Manual

*PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE ATTEMPTING TO ASSEMBLE YOUR NEW FOUNTAIN

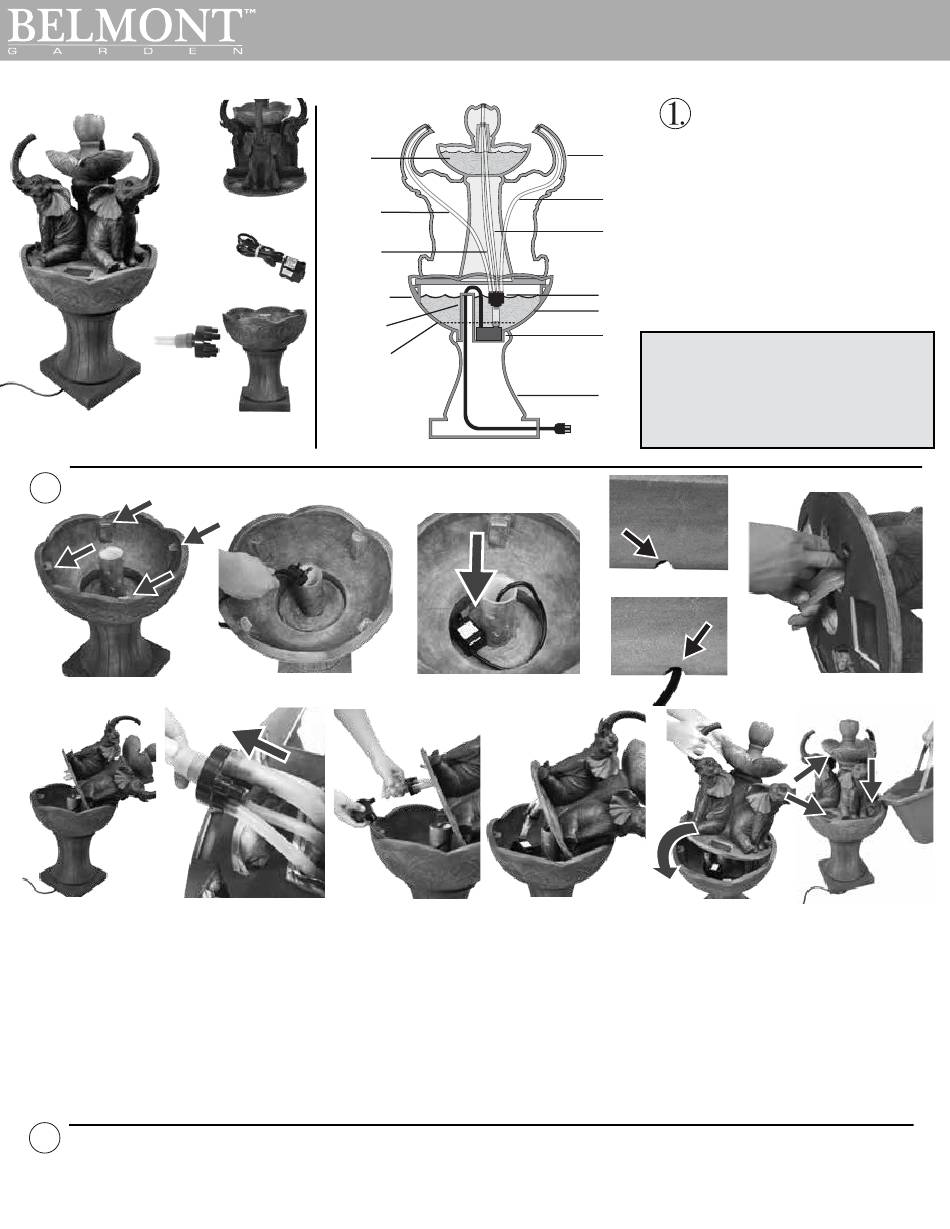

CONTENTS:
Water Tube
Connector
Assembled Fountain
Please note, images of parts are not to scale with one another.
2.
Assembly
Figure 1
Figure 6
1. Prior to assembly take time to find a suitable location for your fountain and make sure to place the Base of your Fountain on a flat, firm surface (Figure 1).
2. Pass the cord from the pump down the power cord discharge pipe located in the middle of the reservoir (Figure 2). Place the water pump in the reservoir (Figure 3).
3. Locate the notch on bottom of base (Figure 4a). Place the water pump electrical cord into this notch (Figure 4b). Ensure cord is not pinched, this can cause an electrical short.
4. Use your fingers to pull out the 4 water tubes from inside the Fountain Top, pull them through the opening that has the shortest tube, do not pull out through the round opening (Figure 5).
Note: In the Next step you will connect the Water Tube Connector. The Water Tube Connector has 6 ports only 4 ports are used. 1 tube is larger than the other 3, the larger tube feeds the
upper Fountain Top Bowl. The smaller three tubes feed the 3 Elephants.
Note: The Water Tube Connector Ports are shaped to fit the large and small tubes (If the tubes are tight and you are unable to connect try running the tubes under hot water for a few
minutes to soften them up, they will be snug but will fit). For the large tube make sure to press the tube all the way onto the base of the port.
5. Have a second person assist and set the Fountain Top on the side of the base (Figure 6). Water tubes should be pre-installed to the Water Tube Connector. If they are not you will need to
connect the 4 tubes to Water Tube Connector (Figure 7).
6. Connect the Water Pump to the other side of the Water Tube Connector (Figure 8). Set the Water Pump on the bottom of the Fountain Base Water Reservoir.
Note: Make sure there are no kinks in any of the tubes.
7. Set The Fountain Top down onto the Fountain Base, ensure that Fountain Top sets flat onto the tabs built into the Fountain Base (Figure 1 arrows). Fill the fountain reservoir with water,
pouring water through the screen (this would avoid any splash) (Figure 11). Water level must be about 1 inch (2.54cm) above the Water Pump and about 1 inch (2.54cm) below power cord
discharge pipe. Due to evaporation check and fill water level periodically.
8. Plug in your fountain and enjoy.
3.
OPERATING YOUR FOUNTAIN:
Turn on/plug in Fountain: If having trouble with the water flowing evenly out of the Fountain Top Bowl Spouts (Figure 11 arrows), you will need to level the surface
of your fountain.
Water Level: Due to evaporation, clean water must be added periodically. You can pour water into 1 of the 3 screens on the top side of the Fountain Top (Figure 11 arrow). Water level must
be maintained between 1 inch (2.54cm) above the Water Pump and 1 inch (2.54cm) below power cord discharge pipe in the fountain base will void the limited warranty.
Diagram 1:
Upper Water
Bowl
Fountain Top
Elephant 1
Water Tube
Upper Bowl
Water Tube
Max Water Level
Water Pump (2.54cm below
power cord
discharge pipe)
Water Pump
Discharge Pipe
Min Water Level
(2.54cm above
water pump)
Fountain Base
Figure 2
Figure 7 Figure 8
Ellie Elephant Fountain
Figure 3
Figure 9
O W N E R S M A N U A L
Pre Assembly Preparation:
1. Note: The Elephant Fountain is designed for
easy assembly but the fountain is heavy. Please
use caution it is recommended to use 2 people when
Fountain assembling, lifting or moving fountain.
Top
2. Prior to assembly take time to find a suitable location
for your fountain and make sure to place the Base of
your Fountain on a flat, firm surface.
Elephant 2
3. Use Diagram 1 for reference on part names,
Water Tube
connecting and how all the individual parts fit together.
4. Use all electrical safety precautions, always use
Elephant 3
Water Tube
properly grounded outlets. Please make sure that the
electrical plug is dry and clean before inserting into the
outlet. Never remove the ground pin from the electrical
plug. Always unplug before filling with water or
Water Tube servicing your fountain.
Connector
5. Due to evaporation check and fill water level
Water
periodically.
Reservoir
Water
Need Help
Pump
Call us for assistance at:
+1 (619) 449-2392 or you can email us at:
customercare@belmont.garden
Fountain
For video tutorials visit: www.belmont.garden/support
Base
Our Customer Care Department is available:
Monday - Friday 8:30am to 4:00pm PST
Power Cord
11:30am - 7:00pm EST
Figure 4a
Figure 4b
Figure 10
