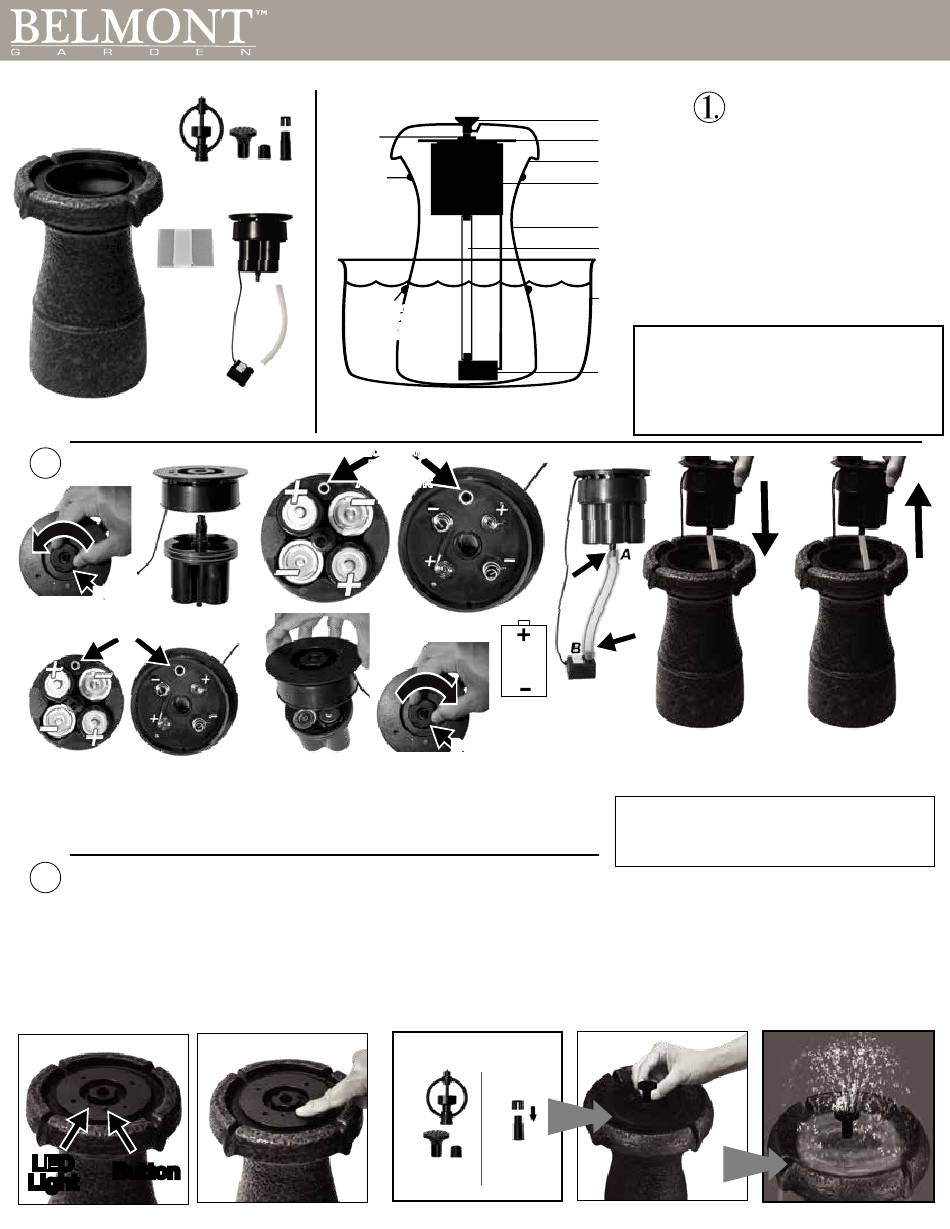

Belmont Garden Create-A-Fountain Owner's Manual

*PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE ASSEMBLING YOUR NEW FOUNTAIN

CONTENTS:

Dancing Water
Plumbers
Tape
Fountain Tower
STEP
2.

Assembly

Battery Cover Battery Cover
Retaining Nut Retaining Nut
Figure 1a
Figure 1b
Locating Locating
Dowel Dowel
Figure 1c Figure 1d
1. Take the Battery Compartment and Water Pump & connect one side of the Water Tube to the Water Pump and the other end to the bottom side of the Battery Compartment (A & B of Figure 4).
2. Find a suitable bowl, place it on a flat level surface, place the Fountain without the Battery Compartment and Water
Pump, into the center of the bowl.
3. Lower the Battery Compartment and Water Pump into the Fountain and make sure it sits level on Fountain (Figure 5).
3. Fill bowl with water, water level should be between the upper and lower Decorative Rings on the outside of the
Fountain. This will ensure water covers the Water Pump (Diagram 1a).
STEP 3.

OPERATING YOUR CREATE-A-FOUNTAIN:

Turn Fountain on and set timer: When the Fountain is off, set the run time for 1 to 4 hours by slowly pressing the button 1 to 4 times
(Figure 7a & 7b). 3 seconds after pressing the button, the LED light will repeatedly flash the number of times the button was pressed (Figure 7a).
This indicates the number of hours the Fountain will run every day. The Fountain will turn on at the same time, for the selected number of hours, daily thereafter.
Stop Fountain for one day: To stop the Fountain manually for one day, hold the button for over 2 seconds (Figure 7a & 7b). The Fountain will turn off for one day, but will still turn on at the
same time, for the same number of hours selected, daily thereafter.
Reset/Change the timer: To change the run time, stop the Fountain if its running by holding the button for over 2 seconds (Figure 7a & 7b). The Fountain will stop. Once the Fountain
stops, you can press the button again to set the duration. Refer to Turn Fountain on and set timer.
Fully shut off and clear timer: To fully turn off the Fountain so that it will not turn on automatically the next day, press and hold the button for over 2 seconds to turn it off (Figure 7a & 7b).
When the Fountain is NOT operating, simply press hold the button again for over 2 seconds, the LED light will come on for 3 seconds steady to confirm daily program is off.
DANCING WATER ATTACHMENTS: (OPTIONAL):
When Fountain is not running, select one of the Dancing Water Attachments and attach to the outlet in the middle of the Fountain Tower
LED LED
Button Button
Light Light
Figure 7a
Diagram 1a:
Battery
Cover
Retaining
Nut
Max Water Level
Attachments
(Upper
Decorative
Ring)
Min Water Level Min Water Level
Decorative Decorative
Battery
Compartment
Recommended minimum bowl size is approximately 12 inches
& Water Pump
Locating Locating
Dowel/ Dowel/
Alignment Alignment
Hole Hole
Figure 2a
Figure 3a
To prevent overspray there are 3 Dancing Water Attachments designed for large bowls & 1 designed for small bowls please use accordingly.
Figure 7b
Create-A-Fountain
(Lower (Lower
Ring) Ring)
Figure 2b
Battery Cover Battery Cover
Retaining Nut Retaining Nut
Please note, images of parts are not to scale with one another.
Figure 3b
Dancing Water Attachments
Please use accordingly
to prevent overspray
Large Bowls Small Bowls
17 in (43.18cm) 11.5 in (29.21cm)
diameter or to 17 in (43.18cm)
larger bowls diameter bowls
Figure 8a
O W N E R S M A N U A L
STEP

INSTALLING BATTERIES:

1. Unscrew (counter clockwise) the
Dancing Water
Battery Cover Retaining Nut and open cover
Attachments
(Figure 1a, 1b).
Battery Cover
2. Position the Battery Compartment with locating
dowel on top. (See Arrow Figure 1c &1d).
Vent Hole
3. Insert 2 batteries (Figure 2a) with the (+) side
Battery
facing up in Battery Compartment (upper left and
Compartment
lower right) and 2 batteries with the (-) facing up in
(4D Cell Batteries
Not Included)
Battery Compartment (upper right & lower left).
4. Reinstall the Battery Cover by aligning the
Vent Hole
locating dowel in the Battery Compartment and
Battery Cover. Set the Battery Cover down onto the
Water Pump Tube
Battery Compartment ensuring the dowel sets into
the alignment hole. Tighten the Battery Cover
retaining nut by turning clockwise until you hear a
clicking sound. This indicates the Battery Cover is
Bowl
(Not Included)
sufficiently tight. (Figure 3a & 3b).

CHANGING BATTERIES:

1. Remove any Dancing Water Attachment, lift Battery Compartment
and Water Pump out of the Fountain (Figure 6). Ensure Battery
Compartment and Water Pump are completely dry before
Water
Pump
opening Battery Compartment. It is important that no water
enters the Battery Compartment.
2. Reinstall batteries and reassemble.
3. Set the Battery Compartment and Water Pump back into the
Fountain (Figure 5).
Figure 4
Figure 5
Need Help?
Call us for assistance at: 1+ (619) 449-2392
or you can email us at:
Our Customer Care Department is available:
Monday - Friday 8:30am to 4:00pm PST 11:30am - 7:00pm EST
(Figure 8a, 8b &
Figure 8b
TM
Figure 6
customercare@belmont.garden
8c).
Figure 8c
