SPINNING BIKE
SNODE8729
Instruction Manual
IMPORTANT: Read all instructions carefully before using this product. Retain
this owner's manual for future reference.
The specifications of this product may vary from this photo, subject to change
without notice.
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNODE8729 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for snode SNODE8729

Summary of Contents for snode SNODE8729

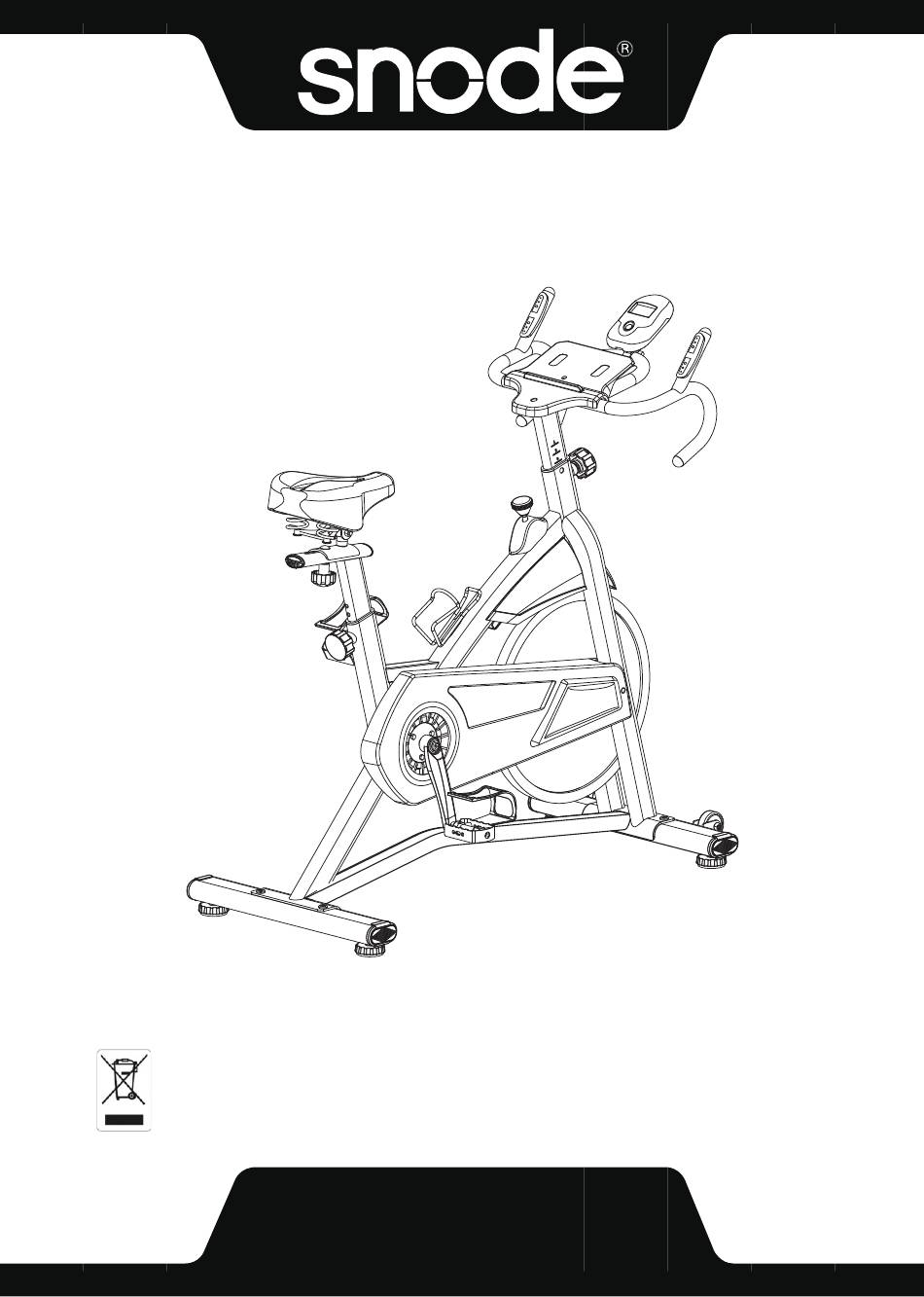

  • Page 1 SPINNING BIKE SNODE8729 Instruction Manual IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice. OWNER’S MANUAL...
  • Page 2 STOP ARRÊT ALTO PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: snodefitness@outlook.com Or call us at: Hours: 8:00 am to 5:00 pm (PST) Daily...

  • Page 3: Table Of Contents

    TABLE OF CONTENT SERVICE IMPORTANT SAFETY GUIDELINES EXPLOSIVE VIEW PARTS LIST ASSEMBLY INSTRUCTION EXERCISE MONITOR ADJUSTMENTS TROUBLE SHOOTING EXERCISE INSTRUCTIONS TRANSPORT & STORAGE WARRANTY PARTS REQUEST FORM...

  • Page 4: Service

    Enter into below website to find more innovation products: www.amazon.com/snode Hot-Line: 1-323-510-1818 (8:00 AM - 5:00 PM Pacific Standard Time, Daily)

  • Page 5: Important Safety Guidelines

    IMPORTANT SAFETY GUIDELINES Safety Precautions – Please Read the Instruction before Using! Read all instructions before using the equipment. When using the equipment, WARNING basic precautions should always be followed. - To reduce the risk of injury to persons, read and under the following: 1.
  • Page 6 Warning： WWW.P65WARNINGS.CA.GOV -CANCER AND REPRODUCTIVE HARM -- Do not use this equipment if you have any of the following conditions or ailments: Pregnancy Extreme obesity Middle ear infection Hiatus hernia or Ventral hernia Glaucoma, retinal detachment or conjunctivitis Use of anticoagulants including Aspirin in high doses. Spinal injury, Cerebral Sclerosis, or acutely swollen joints Heart or circulatory disorders for which you are being treated High blood pressure, Hypertension, Recent stroke or Transient ischemic attack...

  • Page 7: Explosive View

    EXPLOSIVE...

  • Page 8: Parts List

    PARTS LIST DESCRIPTION PART NO. Computer 1 PC Computer holder 1 PC Handlebar 1 PC Hexagon screw M8x15 4 PCS Spring washer φ8 4 PCS Ipad holder 1 PC Brake knob 1 PC Hexagon nut M8 1 PC Brake cover 1 PC Screw 2 PCS...
  • Page 9 Sensor 1 PC Pedal(L+R) 1 SET Crank plug 2 PCS Nut M10x1.25 2 PCS Crank(L+R) 1 SET Axle cover 1 PC Hexagon screw 1 PC Bearing 6203 2 PCS Pipe 1 PC Foot pad 4 PCS Hexagon screw M10 4 PCS Rear tube 1 PC End cap 40x80...
  • Page 10 Screw M5x30 2 PCS Brake pad 1 PC Screw M5x8 2 PCS Nylon nut M5 2 PCS Spring washer 2 PCS Brake shrapnel 2 PCS Metal plate 1 PC Conical spring 1 PC Flange nut M12x10.8T 2 PCS Washer 2 PCS Hexagon nut M12x6t 1 PC Flywheel axle φ12...

  • Page 11: Assembly Instruction

    ASSEMBLY INSTRUCTION STEP 1 Attach the Rear tube (38) to the Main frame(55) using two Step screws(54) . Attach the Front tube (53) to the Main frame same as the Rear tube.
  • Page 12 ASSEMBLY INSTRUCTION STEP 2 Put Seat post (25) insert Main frame(55) with Knob adjust height. Put Seat (21) on the Slider(20) and fix it by Bolt(22) and Knob(24) .
  • Page 13 ASSEMBLY INSTRUCTION STEP 3 The pedals (28L and 28R) are marked “L” and “R”-left and right. Connect them to their appropriate crank set(31L and 31R) . The right crank set is on the right hand side of the cycle as you sit on it. Note that the Right pedal should be threaded on clockwise and the left pedal on anti-clockwise.
  • Page 14 ASSEMBLY INSTRUCTION STEP 4 Put Handlebar post(79) insert Main frame with Knob(77) adjust height. Fix the Handlebar(3) on Handlebar post using 4 sets of Hexagon screws(4) and Spring washers(5) , then cover the iPad holder(6) on handlebar(3) . Fix the computer holder(2) on handlebar using Screw, put computer(1) slip into computer holder, then insert the sensor cable(17) plug into the sensor joint of computer, And insert the pulse wire(80) plug into the pulse joint of computer.

  • Page 15: Exercise Monitor

    EXERCISE MONITOR FRONT VIEW SPECIFICATIONS: TIME(TMR) 00:00-99:59 0.0-99.9KM/H(ML/H) SPEED(SPD) DISTANCE(DIST) 0.00-99.99KM(ML) CALORIES(CAL) 0.0-999.9KCAL 0-9999KM(ML) ※ODOMETER(ODO) 40-240BPM ※PULSE(PUL) 1. AUTO ON/OFF ◆ The system turns on when any key is pressed or when it sensor an input from the speed sensor. ◆...
  • Page 16 EXERCISE MONITOR 3. MODE To choose the SCAN or LOCK if you do not want the scan mode，press the MODE key when the pointer on the function you want which begins blinking. FUNCTIONS: 1. TIME： Press the MODE key until pointer lock on to TIME. The total working time will be shown when starting exercise.

  • Page 17: Adjustments

    ADJUSTMENTS Rear Tube(38) Front Tube(53) Foot Pad(36) Adjusting the on the as needed to level the bike. Foot Pad(36) Front Rear Tube(53)&(38) Proper leveling will reduce noises and wobbling. Brake Knob(7) Adjusting the Brake Knob To increase the tension, turn to Brake Knob(7) in a CLOCKWISE direction. To decrease the tension, turn to Brake Knob(7) in a COUNTERCLOCKWISE direction.
  • Page 18 ADJUSTMENTS Handlebar Post(79) Knob M16 (77) Adjusting the Handlebar Height Tip: When adjusting the height of Handlebar Post(79), the line cannot higher than the edge of plastic bushing. Loosen the Knob M16 (77) by turning it COUNTER-CLOCKWISE direction until it can be pulled out. Pull out the Knob M16(77) and then slide the Handlebar Post(79) up or down and settle on the desired height.
  • Page 19 ADJUSTMENTS Slider(20) Knob M10(24) Adjusting the Seat Forward or Back Loosen the Knob M10(24) by turning it in a COUNTER-CLOCKWISE direction. Slide the Slider(20) in a forward direction to the suitable position. Lock the Slider(20) in place by turning the Knob M10(24) in a CLOCKWISE direction.

  • Page 20: Trouble Shooting

    TROUBLE SHOOTING 1. PROBLEM: The bike wobbles when in use. 1) SOLUTION: Turn the Foot Pads (36) on the Rear and Front Tube (38) & (53) or as needed to level the bike. 2. PROBLEM: The display on the Computer (1) does not turn on. 1) SOLUTION: Remove the Computer (1) and verify that the wires from the Computer (1) are properly connected to the wires of the Handlebar Post (79) .

  • Page 21: Exercise Instructions

    EXERCISE INSTRUCTIONS Using your EXERCISE CYCLE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with calorie controlled diet help you lose weight. 1.The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury.
  • Page 22 EXERCISE INSTRUCTIONS This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes. 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g.

  • Page 23: Transport&Storage

    TRANSPORT&STORAGE Handlebar (3) Front Tube (53) Wheels (50) Transporting the Bike Pull the Handlebar (3) with both hands until the Moving Wheels (50) on the Front Tube (53) make contact with the ground. Pull or Push the Bike to the desired storage area before gently lowering the Bike.

  • Page 24: Warranty

    Exclusions from Warranty Coverage: SNODE does not warrant against and is not responsible for, and no implied warranty shall be deemed to cover, any product failure, product malfunction, or damages attributable to: 1.Improper installation and/or failure to bide by Paradigm’s installation guidelines;...

  • Page 25: Parts Request Form

    PARTS REQUEST FORM SNODE GROUP, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO snodefitness@outlook.com * NAME: ADDRESS: CITY: STATE: ZIP: TELEPHONE: (Day) (Night) MODEL#: PURCHASE DATE: PLACE OF PURCHASE: PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS”...
