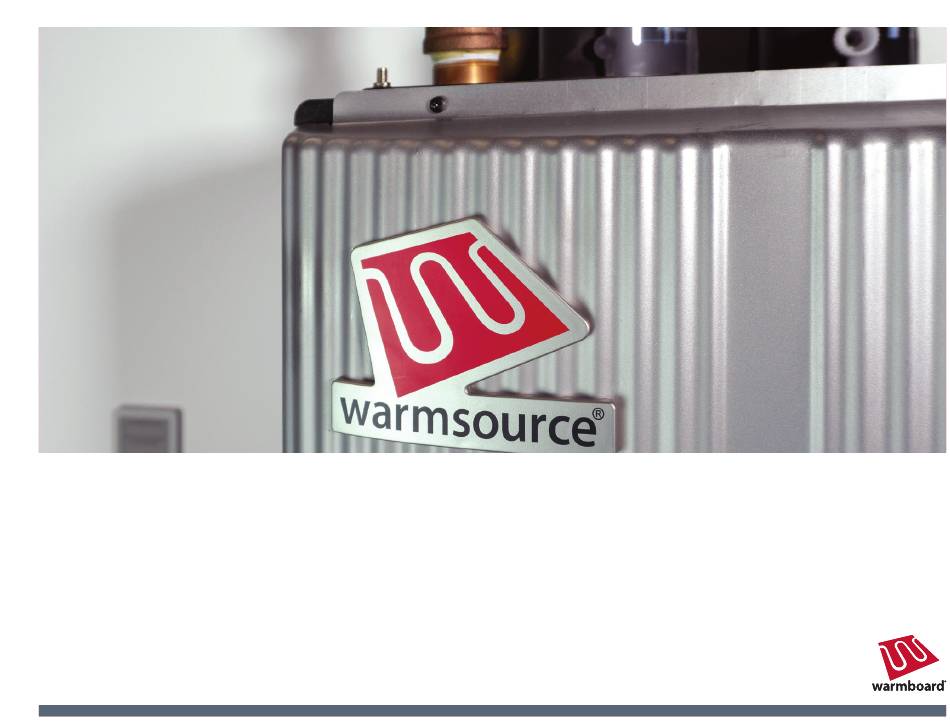

1.800.556.0595 for assistance 1021 Warmboard Comfort System INSTALLATION GUIDE FOR USE WITH Warmsource-N natural gas boiler Warmsource-P propane gas boiler...
– there’s no need for additional wiring or knowledge of networking equipment. WARNING Air Conditioning Page 12 5 Warmsource-N (natural gas) and Warmsource-P Testing the System Page 13 (propane) boilers require no programming or Breathing Hazard – Carbon Monoxide Gas...
T&P, condensation line, water line) (inside the Panel Installation Kit) Drywall Insulate walls, floors 24" x 36" WCS Engineered Drawings Install Warmsource-N/P, then plumb in and fire up (inside the Panel Installation Kit) Drywall using “Construction Mode” Panel Installation Guide...
PVC intake and exhaust venting (pages 31-39) Constant pressure circulation pump(s), pre-set Gas (pages 46-47) and condensation line (page 40) to “Constant Pressure ” by Warmboard Inc. T&P relief valve discharge (page 30) 1/2" cold water line from the domestic water...
1.800.556.0595 Warmsource-N/P Preparation for assistance INSTALL LOCATION MINIMUM CLEARANCES Before installing Warmsource-N/P, it’s important This illustration shows the recommended minimum 46" to consider its location. Like all gas-fired boilers, dimensions for the Warmsource-N/P mechanical 18" 32" this appliance does make a small amount of noise area.
Securely fasten the sleepers to the wall studs, then mount the bracket to the sleepers) Once the bracket is secured, lift Warmsource-N/P on to the mounting bracket (the unit weighs 150lbs and requires two individuals to move safely)
WARMBOARD COMFORT SYSTEM // GAS Warmsource-N/P: Filling & Purging PROPYLENE GLYCOL To fill Warmsource-N/P and the manifold 1 loops Once the system is plumbed and pressure tested with water (city or well supply), lift the fast fill lever with air (see T&M Installation Guide), the next step...
“Sensor 2” terminal. Use the white jumper for 100˚F water, the red jumper for 120˚F Step 3: Plug Warmsource-N/P into the 120 volt outlet and confirm the system is ON using the rocker switch and power button circled in the photo to...
Refer to the WCS Design Drawings as needed and those displayed in your WCS Design Drawings. CONTROLS Warmboard Controls consist of the following: 120 volt thermostats (one per heating zone) 120 volt Manifold Controller (one per manifold) 24 volt solenoid valve loop actuators...
1.800.556.0595 Thermostats for assistance THERMOSTAT INSTALLATION Warmboard Comfort System offers 3 different types of thermostats: Every thermostat MUST be installed in the location specified in the WCS Design Drawings. Failure to Heating do so will cause the system to behave inaccurately.
Connecting an AC system to WCS is very similar to wiring a 24v thermostat from an AC unit, just follow the steps below. Remove the front cover from Warmsource-N/P Locate terminal connection “AC1/Fan” on the Smart Reset Controller (SRC)
Successful installation of all electrical components and choose “Tutorial” to familiarize yourself with Minimum flow rates are listed in the Warmboard (Manifold Controllers, actuators, thermostats) the controls Engineered Drawings Once complete, go to “Settings”...
Page 14
Failure to stringently adhere to any of the recommended procedures of this installation guide and/or any other Warmboard document related to this product shall release Warmboard of all liability with respect to this product or the use thereof. For complete warranty information please call 1.800.556.0595 or visit warmboard.com...
