Rubinet 1ARBEJL Manual

13 14
LIFT ROD
15 16
THUMB SCREW
SPRING CLIP
17 18
4

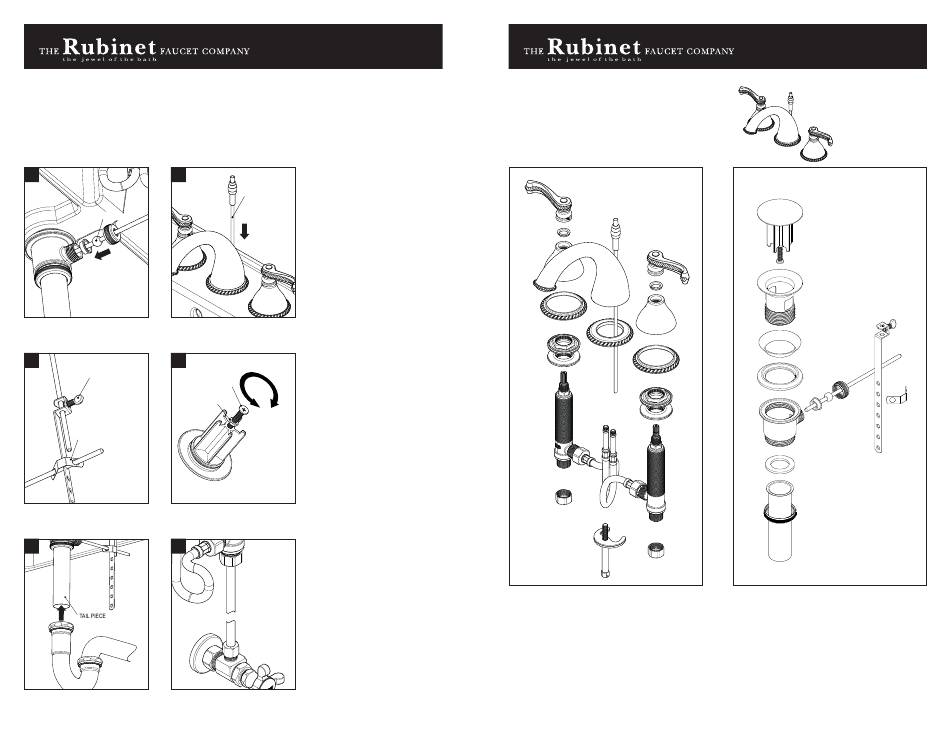

Assemble the Lift Rod as shown,
Nylon Bearing first then the Rod and
finally the Rod Nut.
POP-UP ROD
Insert the Pop-Up Rod in the Spout.
Push the Lift Rod down to the Open
Drain Position. Connect the Pop-Up
Rod to the Extension Ladder as
ADJUSTMENT
shown using the Spring Clip and
SCREW
Thumb Screw to secure both pieces
LOCK NUT
together.
Insert the Drain Plug into the sink.
With the Pop-Up Rod all the way
down the drain should be open. To
close it, lift the Pop-Up Rod. The
Drain Plug works on gravity and has
an adjustment screw. Loosen the
Lock Nut to make any adjustment
required then re-tighten the Lock Nut
to maintain the adjustment.
Hook up the 'P' Trap to the Drain Tail
Piece.
Finally, connect the water supply from
the Shut-Off valves (not supplied) to
the bottom of the Sidebodies.
Remove the Aerator from the spout
and flush the system to clear any
debris that might have accumulated
and replace the aerator.
INS EJ1A
TWO HANDLE WIDESPREAD LAVATORY SET
MODEL 1ARBEJL
If you need assistance with installation, replacement parts or have any
questions regarding your Rubinet product, please call a Customer
service representative at: 905-851-6781 toll free 1-800-461-5901
or visit www.rubinet.com
WIDESPREAD LAV SET

REMOVAL OF FAUCET:

Always turn the water supply off before removing the existing faucet or
disassembling a valve. Open both faucet handles to relieve water
pressure and to ensure that the water has been successfully turned off.
INS EJ1A
POP-UP DRAIN ASSEMBLY

CARE OF FAUCET:

The use of warm water and a soft cloth is all that is required to clean
Rubinet products. The patina of our living finishes (Oil Rubbed Bronze &
Tuscan Brass) will change as a result of normal use. Applying Mineral Oil
on occasion will create a softer look, subtle color changes and character.
