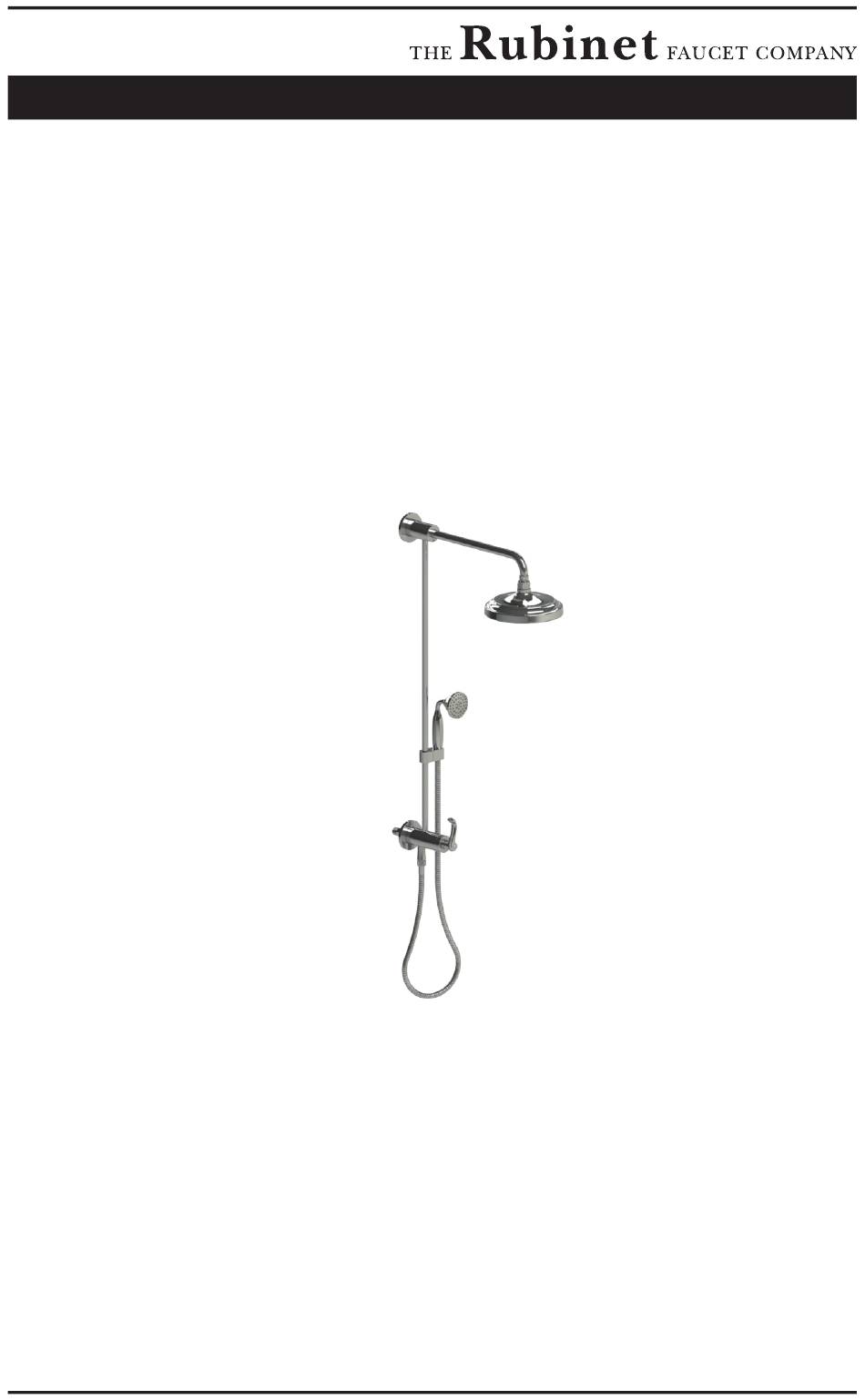

ASSEMBLY INSTRUCTION
4UET1
30" Slide Bar with Fixed Shower Head,
Adjustable Hand Held Shower & Diverter
4UET1
REMOVAL OF FIXTURE:
Always turn the water supply off before removing the existing fixture or disassembling a valve. Open all handles to relieve water pressure and to
ensure that the water has been successfully turned off.
CARE OF FIXTURE:
The use of warm water and a soft cloth is all that is required to clean Rubinet products. The patina of our living finishes (Oil Rubbed Bronze &
Tuscan Brass) will change as a result of normal use. Applying Mineral Oil on occasion will create a softer look, subtle color changes and character.
Advertisement
Related Manuals for Rubinet 4UET1
Summary of Contents for Rubinet 4UET1
- Page 1 CARE OF FIXTURE: The use of warm water and a soft cloth is all that is required to clean Rubinet products. The patina of our living finishes (Oil Rubbed Bronze & Tuscan Brass) will change as a result of normal use. Applying Mineral Oil on occasion will create a softer look, subtle color changes and character.
- Page 2 30” Slide Bar with Fixed Shower Head, Adjustable Hand Held Shower & Diverter 4UET1 9XMNTAC2A Mounting Kit 9Y000AB1C Upper Housing Assembly 9Y000AB1E Wall Plate 9SH23 Shower Head 9Y0HOAB3C Slide Bar Tube 9HS06 Hand Shower 9YHHSAB4A Slide Bracket 9XSHWSA1C 1/2˝ Nipple...
- Page 3 30” Slide Bar with Fixed Shower Head, Adjustable Hand Held Shower & Diverter 4UET1 THREAD SEALING TAPE *MUST CUT FLUSH TO THE SLIP FIT ADAPTER O-RING...
- Page 4 30” Slide Bar with Fixed Shower Head, Adjustable Hand Held Shower & Diverter 4URV1 TO ADJUST HEIGHT: - CUT TOP END OF THE TUBE. - INSIDE OF THE TUBE MUST BE FREE OF ANY BURRS TO PREVENT O-RING DAMAGE. THREADED END DOWN * Do not fasten set screws for Slide Bar adjustment later...
- Page 5 30” Slide Bar with Fixed Shower Head, Adjustable Hand Held Shower & Diverter 4URV1...
- Page 6 30” Slide Bar with Fixed Shower Head, Adjustable Hand Held Shower & Diverter 4UET1 *Tighten all set screws before installing the Shower Head...
- Page 7 30” Slide Bar with Fixed Shower Head, Adjustable Hand Held Shower & Diverter 4UET1...
- Page 8 6 7/16" 1/2"NPT 60" Double Spriral Flex Hose CONTACT US: If you need assistance with installation, replacement parts or have any questions regarding your Rubinet product, 905-851-6781 1-800-461-5901 www.rubinet.com please call a Customer Service representative at: toll free...
