210301
ASSEMBLY INSTRUCTION
REMOVAL OF FAUCET:
Always turn the water supply off before removing the existing faucet or disassembling a valve. Open both faucet handles to relieve water pressure
and to ensure that the water has been successfully turned off.
CARE OF FAUCET:
The use of warm water and a soft cloth is all that is required to clean Rubinet products. The patina of our living finishes (Oil Rubbed Bronze &
Tuscan Brass) will change as a result of normal use. Applying Mineral Oil on occasion will create a softer look, subtle color changes and character.
CONTACT US:
If you need assistance with installation, replacement parts or have any questions regarding your Rubinet product,
please call a Customer Service representative at:
1GLAL
1GLAC
1GLAR
905-851-6781
1-800-461-5901
toll free
1GLAL - C - R

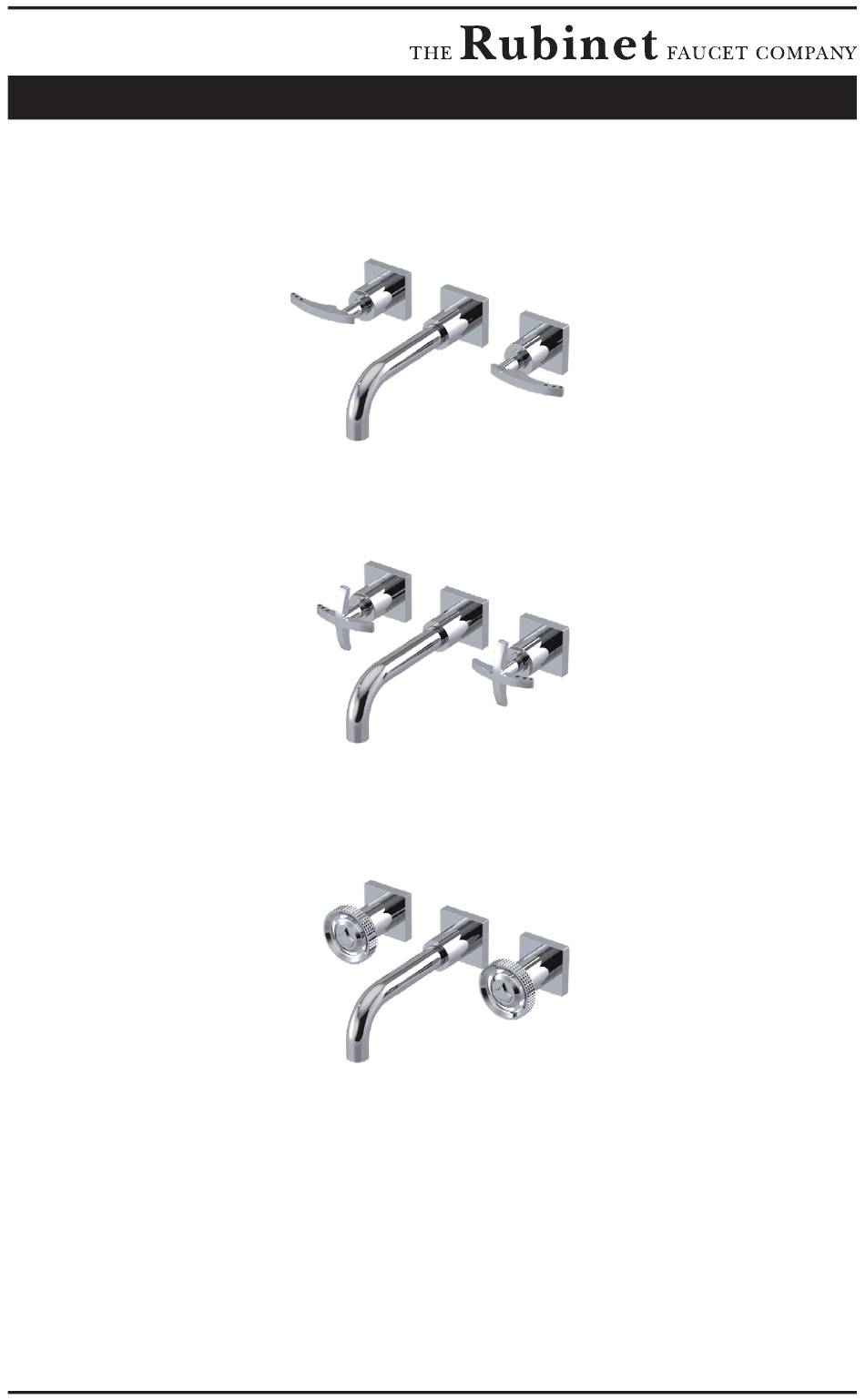

WALL MOUNT LAVATORY SET
www.rubinet.com
or visit
Advertisement
Related Manuals for Rubinet LaSalle 1GLAC
Summary of Contents for Rubinet LaSalle 1GLAC
- Page 1 CARE OF FAUCET: The use of warm water and a soft cloth is all that is required to clean Rubinet products. The patina of our living finishes (Oil Rubbed Bronze & Tuscan Brass) will change as a result of normal use. Applying Mineral Oil on occasion will create a softer look, subtle color changes and character.
- Page 2 WALL MOUNT LAVATORY SET 1GLAL-C-R 1GR100 1GR100 Wall Mount Valve Wall Mount Valve Rough-In Rough-In HLA01 HLA01 Lever Handle Lever Handle HLA04 HLA04 Cross Handle Cross Handle...
- Page 3 WALL MOUNT LAVATORY SET 1GLAL-C-R Flange Flange MUST CUT FLUSH MUST CUT FLUSH TO THE FLANGE TRIM TO THE FLANGE TRIM * 1 7/8˝ (47.5mm) * 1 7/8˝ (47.5mm) from the finished wall from the finished wall 1 7/8˝...
- Page 4 WALL MOUNT LAVATORY SET 1GLAL-C-R...
- Page 5 WALL MOUNT LAVATORY SET 1GLAL-C-R IF THE HANDLE DOES NOT FIT IF THE HANDLE DOES NOT FIT 2 5/8˝ Place handle on the spline. Place handle on the spline. CUT THE SPLINE TO FIT CUT THE SPLINE TO FIT * 2 5/8˝ (67 mm) * 2 5/8˝...
- Page 6 WALL MOUNT LAVATORY SET 1GLAL-C-R * Cut the Slip-Fit Shank 1 5/8˝ long from the Cut the Slip-Fit Shank 1 5/8˝ long from the finished wall and finished wall and MUST REMOVE ANY BURRS before installing the Wall Spout. before installing the Wall Spout. 1 5/8˝...
- Page 7 WALL MOUNT LAVATORY SET 1GLAL-C-R IF THE HANDLES DO NOT ALIGN CORRECTLY IF THE HANDLES DO NOT ALIGN CORRECTLY You can adjust them. Please refer to the You can adjust them. Please refer to the ‘Handle Alignment’ instruction at the back. ‘Handle Alignment’...
