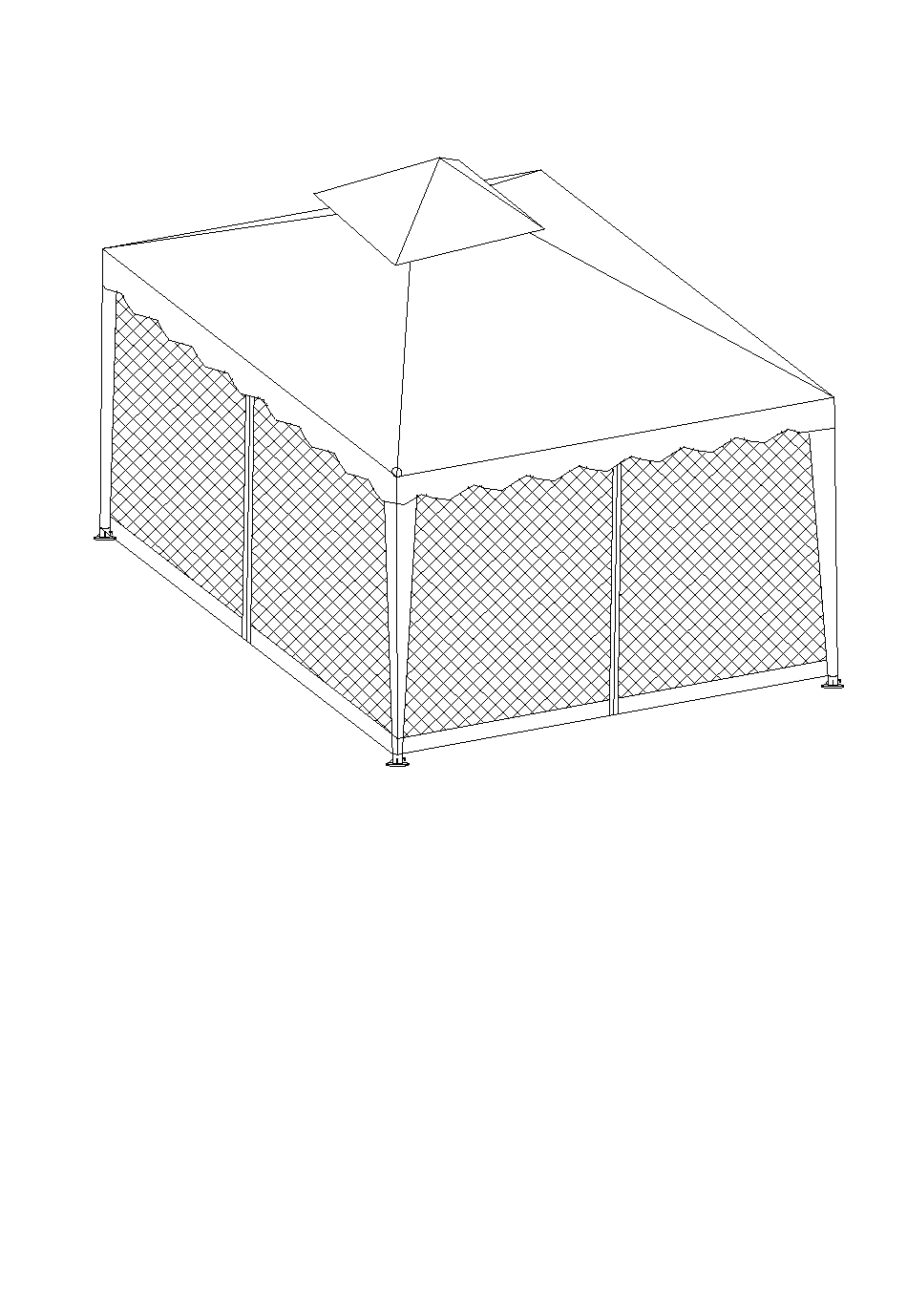

Hampton Gazebo Style # L-GZ012PST-3 IMPORTANT: 1. When assembling your gazebo, it’s recommended that 2 or more people are involved. 2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightening.
Page 2
Parts List: Part Qty. Picture Pole Pole Pole Pole Pole Pole Base plate Corner connector Top connector Rope peg Stake Plastic loop Rope Big canopy Small canopy Mosquito netting - 2 -...
Page 3
Assembly Instruction: Fig.2 Fig.1 Fig.1:Attach two #3 poles to a #4 pole; then attach one B plastic connector to the end of #3 pole. Repeat this procedure to form a square frame, as shown in Fig 1. Fig.2: Attach #5 pole to the #6 pole, then attach the end of #6 pole to C top connector. Repeat this procedure to form a top frame, as shown in Fig.
Page 4
Limited Warranty: This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes. The item is warranted to be free from defects in material or workmanship for a period of 6 months. We don't reimburse for transportation or delivery costs, or compensate the individual or any outside party for assembling or disassembling the product.
Page 5
Glorieta Hampton de Estilo L-GZ012PST-3 IMPORTANTE: 1. Se recomienda ensamblar la glorieta entre 2 o más personas. 2. No utilice la unidad durante una tormenta eléctrica porque existe la posibilidad remota de ser alcanzado por una descarga eléctrica. No se suba sobre la parte superior de la glorieta. Puede sufrir una lesión grave, incluso morir producto de un caída.
Page 6
Lsta de piezas: Nº Pieza Imagen Poste Poste Poste Poste Poste Poste Placa de base Conector para esquina Conector superior Gancho para soga Estaca Gancho de plástico Soga Cubierta grande Cubierta pequeña contra mosquitos - 2 -...
Page 7
Instrucciones de ensamblaje: Fig.2 Fig.1 Fig.1:Asegure dos postes #3 a un poste #4, luego fije un conector de plástico B al extremo del poste #3. Repita este procedimiento hasta formar un marco cuadrado, como se indica en la Fig. 1. Fig.2:Asegure el poste #5 al poste #6, luego fije el extremo del poste #6 al conector superior C.
Page 8
sogas. Consulte la Fig. 6 como referencia. Garantía Limitada: La garantía limitada se extiende sólo al comprador original y garantiza que el producto no presenta defectos de materiales y fabricación, siempre que el artículo tenga un mantenimiento cuidadoso y sólo se use con fines personales y residenciales.
