- Page 1 EMG Armband User Guide OYMotion Technologies Co., Ltd www.oymotion.com info@oymotion.com All Copyrights Reserved © 2015-2021 Version: V1.0.1...
-
Page 2: Table Of Contents
OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 Menu Trademarks and Copyrights ..............................1 gForce Introduction ................................. 1 gForce Models ..................................1 gForce Products ..................................1 Product Details ..................................2 gForce Armband Hardware Components ......................2 gForce Armband Size and Weight ........................2 gForceDongle BLE to USB Receiver ........................ -
Page 3: Trademarks And Copyrights

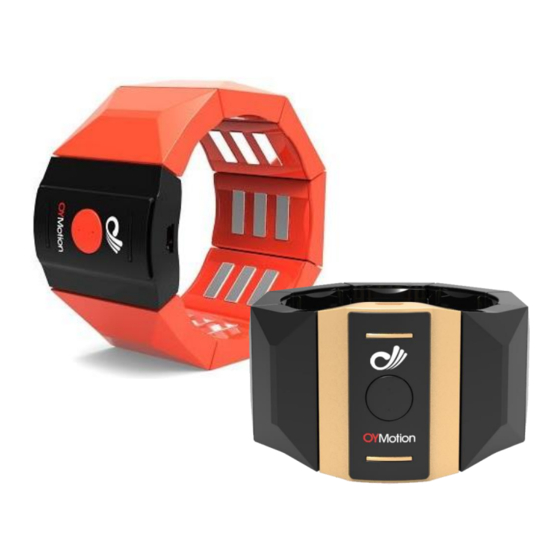

OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 1. Trademarks and Copyrights gForce is the trademark registered by OYMotion Technologies Co., Ltd. 2. gForce Introduction The gForce EMG armband is designed and manufactured by OYMotion. The armband contains 8 highly sensitive EMG sensors with differential dry electrodes, 9-axis IMU motion sensor, and communicates through Bluetooth BLE 4.2. -
Page 4: Product Details
OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 5. Product Details 5.1 gForce Armband Hardware Components 5.2 gForce Armband Size and Weight Measurement Value Inner Diameter 65mm-90mm (max) Height 40 mm Thickness 10 mm Weight 78 g... -
Page 5: Gforcedongle Ble To Usb Receiver
OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 5.3 gForceDongle BLE to USB Receiver The gForceDongle is only compatible with Windows 7 or newer. The gForce armband SDK for Windows works with gForceDongle only. The gForceDongle communicates wirelessly through BLE with the gForce armband to send commands to and receive data from gForce. -
Page 6: System And User Instructions
OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 Arduino MCU receives gesture and quaternion data from gForce through gForceJoint BLE to UART adapter 6. System and User Instructions 6.1 OS Platforms Supported by gForce Platform Features ⚫ SDK for Windows ⚫ Unity3D SDK ⚫... -
Page 7: Gforceapp Mobile Application
OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 6.2 gForceApp Mobile Application The gForceApp is a mobile application running on Android. The gForceApp is designed for gForce armband to view gesture results, check pose data, view EMG data, conduct gesture training, have gForce firmware OTA update, and parameter tuning. - Page 8 OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 and gesture recognition. ⚫ The gForce200 comes embedded with a predefined gesture model (6 gestures), it requires user to follow a predefined wearing position. When wearing on the right arm, make sure the USB port points to palm of the hand (refer to image below). When wearing on the left arm, make sure the USB port points toward the inside of the elbow.
-
Page 9: Gforce Emg Armband Parameters
OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 ⚫ Powering on: To turn on, press and hold the power button on gForce until the green LED is on then release the button. The gForce will vibrate and the green LED will flash at a 1Hz frequency, this means that the armband is looking for a BLE connection. - Page 10 OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 ⚫ gForce200： 6 Predefined Gestures ⚫ gForcePro+：Up to 16 user customizable gestures Gestures (gestures must have noticeable EMG differences) ⚫ Realtime EMG raw data access supported ⚫ Sample rate：max 1000Hz ⚫ ADC： 8bit (max 1000Hz sample rate)
-
Page 11: Gforcedongle Parameters
OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 ⚫ SDK For Windows ⚫ SDK For Android ⚫ SDK For Arduino/Embedded ⚫ Unity3D SDK for Windows/Android Software Support ⚫ Open Source oym8chwave Project to Capture EMG Raw Data, IMU, etc ⚫ gForceApp Mobile APP 8. -
Page 12: Packaging Item List
OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 9. Packaging Item List 9.1 gForcePro+ EMG Armband Items Quantity gForcePro+ EMG Armband (Orange) gForceDongle BLE to USB Dongle USB Cable 9.2 gForce200 Gesture Armband Items Quantity gForce200 Gesture Armband (Black) gForceJoint BLE to UART Adapter... -
Page 13: Tech Support
OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 10. Tech Support 10.1 gForceSDK For Windows gForceSDK C++ for Windows contains the gForce SDK lib, header files, readme and sample projects for developers to start with Windows platform. Download: https://github.com/oymotion/gForceSDKCXX OYM8CHWAVE open source sample project to start with: https://oymotion.github.io/APPs/oym8CHWave/... -
Page 14: Sdk Manual
OYMotion Technologies Co., Ltd All Rights Reserved©2015-2020 Download：https://github.com/oymotion/gForceSDKUnity.git 10.5 SDK Manual Before developers start coding own projects, DO spend time going thru the SDKs manual: https://oymotion.github.io/gForceSDK/gForceSDK/ We have outlined most of the important information at: https://oymotion.github.io/ 11. Contact US OYMotion Technologies Co., Ltd ⚫...
